LED Autolamps 131RM Multi Volt Stop/Tail Lamp with Red Lens and Chrome Reflector
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 131RM Multi Volt Stop/Tail Lamp with Red Lens and Chrome Reflector

SKU: 131RM
Price
$94
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR Approved Multi-Volt Stop/Tail Lamp with Red Lens and Chrome Reflector IP67, 5-Year Warranty

Product Overview

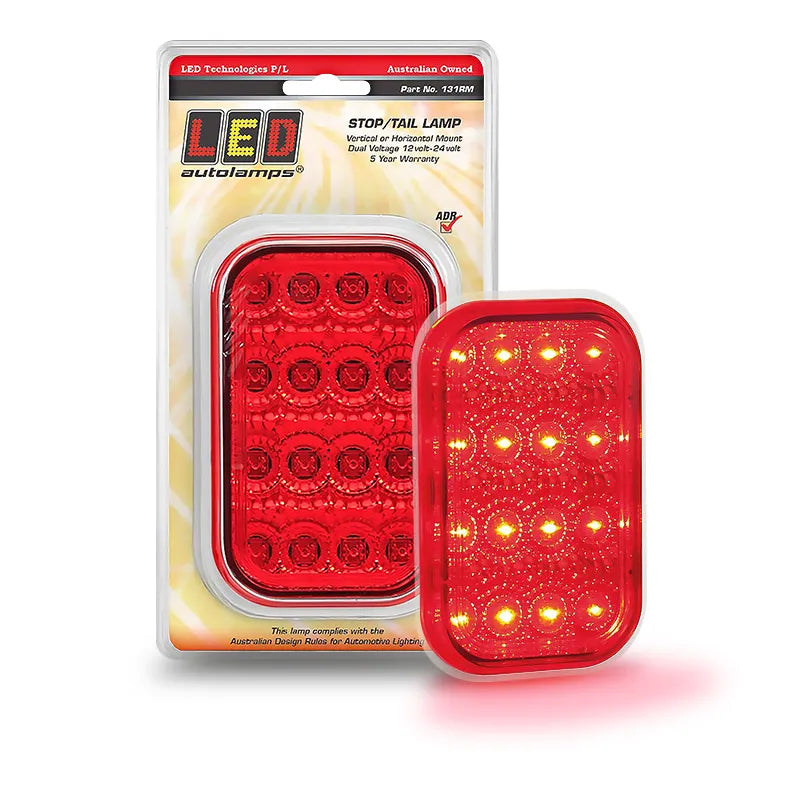

The LED Autolamps 131RM is a 12/24V stop/tail lamp with a red lens and internal chrome reflector, completing the traditional lens colour options in the 131 series alongside the 131AM amber indicator. Measuring 134mm x 87mm x 12mm, the low-profile rectangular form factor mounts in horizontal or vertical orientation to suit a wide range of trailer and truck body panel layouts.

The chrome reflector enhances LED output for maximum red stop/tail brightness, while the ADR road approval ensures legal on-road compliance. Rated IP67 and backed by a 5-year warranty.

Features & Benefits

  • Red lens — delivers correct red stop/tail output with a consistently coloured lens appearance whether active or inactive
  • Internal chrome reflector — amplifies LED output for stronger, more consistent red stop/tail brightness across the lamp face
  • Horizontal and vertical mount — flexible orientation suits a wide range of panel layouts on trailers and truck bodies
  • ADR road approved — meets Australian Design Rules for legal on-road use as a stop/tail lamp
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 12/24V multi-voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 131RM
Lamp Type Stop / Tail
Lens Colour Red
Reflector Internal chrome
Voltage Range 12V / 24V
Dimensions 134mm x 87mm x 12mm
Mounting Horizontal or vertical surface mount
Protection Rating IP67
Compliance ADR
Warranty 5 years

Compatible With / Goes Well With

  • Trailers, trucks, and commercial vehicles requiring surface mount stop/tail lamps
  • 12V light vehicles and 24V heavy transport applications
  • Trailer builds requiring ADR-approved stop/tail lighting
  • LED Autolamps 131AM amber lens indicator lamp (same form factor)
  • LED Autolamps 131CRM clear lens stop/tail lamp (same form factor)
  • LED Autolamps 131CAM clear lens indicator lamp (same form factor)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 131RM approved for road use in Australia?

Yes. The LED Autolamps 131RM is ADR road approved, meeting Australian Design Rules requirements for legal on-road use as a stop/tail lamp.

What does the internal chrome reflector do?

The chrome reflector sits behind the LEDs and amplifies their output, directing more light through the red lens for stronger, more consistent brightness compared to lamps without a dedicated reflector.

How does the 131RM differ from the 131CRM?

The 131RM uses a traditional red lens that appears consistently red whether active or inactive, while the 131CRM has a clear lens that only shows red when the lamp is energised. Both share the same dimensions, chrome reflector, and 12/24V compatibility.

What is the IP rating on the 131RM?

The 131RM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

What warranty does the 131RM carry?

The 131RM is backed by a 5-year warranty from LED Autolamps.
