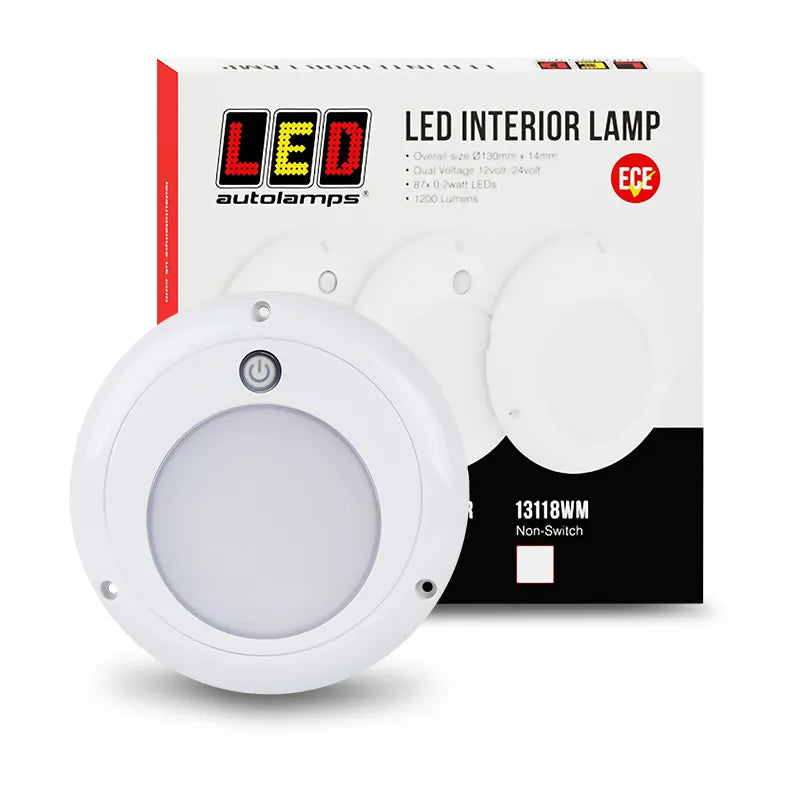

LED Autolamps 13118WM-SW Large Round Interior/Exterior Lamp Switch
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 13118WM-SW Large Round Interior/Exterior Lamp Switch

SKU: 13118WMSW
Price
$106
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

750lm Natural White LED Lamp with Built-In Switch Interior/Exterior, IP67, 225 Lux @ 1m

Product Overview

The LED Autolamps 13118WM-SW is the switched variant of the 13118WM series, combining the same 750 effective lumen output at 4500K natural white with a built-in on/off switch for direct manual control without requiring separate switching in the wiring circuit. With a measured output of 225 lux at 1 metre, it delivers strong, functional illumination for interior and exterior applications on trucks, caravans, trailers, and commercial vehicles.

Rated IP67 and operating across a wide 10–30V range, backed by a 2-year warranty.

Features & Benefits

  • Built-in on/off switch — manual control integrated directly into the lamp, eliminating the need for a separate switch in the circuit
  • 750 effective lumens — strong, measurable light output suited to interior and exterior work lighting applications
  • 4500K natural white — balanced colour temperature delivers clear, comfortable illumination for working and living spaces
  • 225 lux at 1 metre — verified illuminance figure for confident assessment of real-world brightness at working distance
  • IP67 rated — fully sealed against dust and water immersion; suitable for both interior and exterior mounting
  • Low-profile design — large round form factor sits neatly on ceilings and panels without excessive depth
  • Wide voltage range 10–30V — compatible with 12V and 24V vehicle and equipment electrical systems
  • 2-year warranty — backed by LED Autolamps' warranty programme

Technical Specs

Specification Detail
SKU 13118WM-SW
Lamp Type Interior / Exterior with Switch
Colour Temperature 4500K Natural White
Effective Lumens 750 lm
Illuminance 225 lux @ 1m
Switch Built-in on/off
Voltage Range 10V – 30V
Protection Rating IP67
Profile Low profile
Warranty 2 years

Compatible With / Goes Well With

  • Truck cabs, caravan interiors, canopy interiors, and commercial vehicle cabins
  • Storage compartments and utility areas requiring direct manual switching
  • 12V and 24V vehicle and equipment electrical systems
  • LED Autolamps 13118WM (same lamp without switch)
  • LED Autolamps 13118WM-PIR (same lamp with PIR motion sensor)
  • LED Autolamps interior lighting accessories and wiring harnesses

Frequently Asked Questions

How does the 13118WM-SW differ from the standard 13118WM?

The 13118WM-SW has a built-in on/off switch for direct manual control, while the 13118WM is a standard lamp requiring an external switch in the circuit. Both share the same 750lm, 4500K output and IP67 rating.

What is the advantage of a built-in switch?

A built-in switch allows the lamp to be turned on and off directly at the fitting — useful for applications where running wiring to a separate switch panel is impractical, such as canopy interiors, toolboxes, or storage compartments.

How does the 13118WM-SW compare to the 13118WM-PIR?

The SW variant uses a manual built-in switch for control, while the PIR variant activates automatically via motion detection. The SW version is better suited to applications where deliberate manual switching is preferred over automatic activation.

What voltage range does the 13118WM-SW support?

It operates across 10V to 30V, making it compatible with 12V and 24V vehicle electrical systems across a broad input range.

What warranty does the 13118WM-SW carry?

The 13118WM-SW is backed by a 2-year warranty from LED Autolamps.
