LED Autolamps 130RMG 12/24V Stop/Tail Lamp With Reflector 14 LEDs Blister Package
Click to open expanded view
LED AUTOLAMPS logo

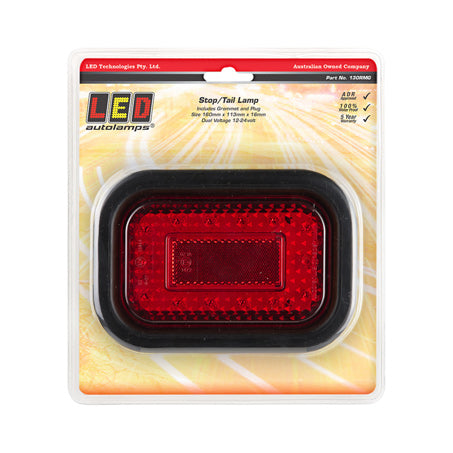

LED Autolamps 130RMG 12/24V Stop/Tail Lamp With Reflector 14 LEDs Blister Package

SKU: 130RMG
Price
$132
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR 49/00 Approved 12/24V Stop/Tail Lamp with Reflector, Grommet and Plug 14 LEDs, IP67

Product Overview

The LED Autolamps 130RMG is a 12/24V LED stop/tail lamp with built-in reflector, supplied with a rubber grommet and plug for a complete sealed recessed installation. Fitted with 14 LEDs and measuring 109mm x 157mm x 12mm, it delivers ADR 49/00 compliant stop/tail output through a plastic base housing with the grommet ensuring a weatherproof fit in the panel cutout.

Note that the 3-pin connector is not included and must be sourced separately. Rated IP67, drawing 0.31A at 13.8V, and backed by a 5-year warranty.

Features & Benefits

  • 14 LEDs — delivers bright, consistent red stop/tail output for strong rear visibility
  • Built-in reflector — integrated passive reflective element for additional rear compliance and visibility
  • Grommet and plug included — complete sealed installation kit for a weatherproof recessed fit straight out of the blister pack
  • Flush recessed mount — sits flush with the panel for a clean, integrated finish on trailer and truck body panels
  • ADR 49/00 approved — meets Australian Design Rules for legal on-road use as a stop/tail lamp
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 3-pin plug and cable — note: 3-pin connector not supplied; must be sourced separately
  • 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 130RMG
Lamp Type Stop / Tail
LED Quantity 14
Voltage Range 12V / 24V
Dimensions (Lamp) 109mm x 157mm x 12mm
Current Draw 0.31A @ 13.8V
Mounting Flush recessed
Connector 3-pin plug and cable (connector not supplied)
Included Accessories Rubber grommet, plug
Base Material Plastic
Protection Rating IP67
Compliance ADR 49/00
Warranty 5 years
Weight 0.5 kg

Compatible With / Goes Well With

  • Trailers, trucks, and commercial vehicles requiring flush-mount stop/tail lamps with grommet
  • 12V light vehicles and 24V heavy transport applications
  • Trailer builds requiring ADR 49/00 approved stop/tail lighting
  • LED Autolamps 130AMG indicator lamp (same 130 series with grommet)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 130RMG approved for road use in Australia?

Yes. The 130RMG is ADR 49/00 approved, meeting Australian Design Rules requirements for legal on-road use as a stop/tail lamp.

What accessories are included with the 130RMG?

The blister pack includes a rubber grommet and plug for a complete, sealed recessed installation. Note that the 3-pin connector is not included and must be sourced separately.

What is the built-in reflector on the 130RMG?

The 130RMG has a passive reflector integrated into the lamp housing, adding a compliant reflective element for additional rear visibility without requiring a separate reflector unit.

What is the IP rating on the 130RMG?

The 130RMG is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

What warranty does the 130RMG carry?

The 130RMG is backed by a 5-year warranty from LED Autolamps.

Weight

0.5 kg
