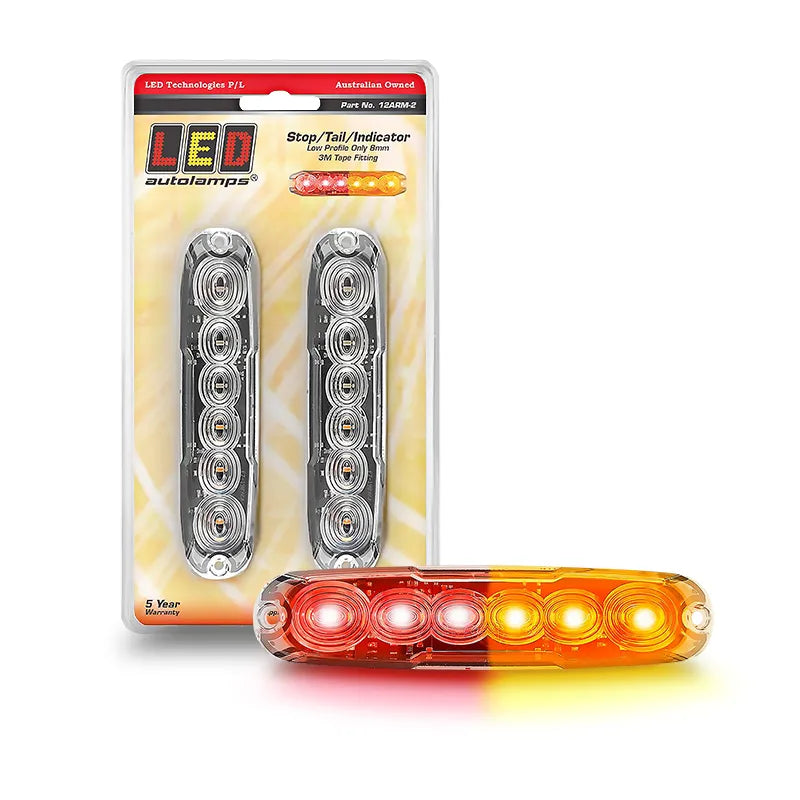

LED Autolamps 12ARM-2 Stop/Tail & Indicator Lamps - Pair

SKU: 12ARM2
Price
$133
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ECE Approved Stop/Tail/Indicator Lamp Pair 6 SMD LEDs, 8mm Ultra-Slim, Aluminium Base

Product Overview

The LED Autolamps 12ARM-2 is a 12/24V stop/tail/indicator lamp supplied as a pair delivering three rear lighting functions in an ultra-slim 131mm x 30mm x 8mm form factor with a polycarbonate Fresnel-style lens and aluminium base. Six high-powered SMD LEDs produce bright, efficient output across all three functions, drawing just 0.20A on stop, 0.02A on tail, and 0.16A on indicator at 13.8V.

ECE approved for horizontal and vertical mounting (CTA-060225) and rated IP67, it mounts via 3M tape or screws and comes with a 250mm cable lead. Refer to ADR 13/00 for mounting compliance. Backed by a 5-year warranty.

Features & Benefits

  • Supplied as a pair — both lamps included for a complete left and right rear installation in a single purchase
  • 6 x SMD LEDs with Fresnel-style lens — enhanced lens design maximises light efficiency across all three functions, exceeding ECE approval thresholds
  • Ultra-slim 8mm profile — low-profile aluminium base suits tight installation spaces on trailer, caravan, and truck body panels
  • Exceptionally low current draw — 0.20A stop / 0.02A tail / 0.16A indicator at 13.8V; important for battery system efficiency in multi-lamp builds
  • ECE Australian road approved — certified for stop/tail/indicator functions in both horizontal and vertical mounting orientations; CTA-060225
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 3M tape and screw fitting — dual mounting options for adhesive or screw-fixed installation; hardware supplied
  • Horizontal and vertical mount — flexible orientation suits a wide range of panel layouts; refer to ADR 13/00 for mounting instructions
  • 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
  • 250mm cable lead — pre-wired and ready to connect straight out of the pack

Technical Specs

Specification Detail
SKU 12ARM-2
Pack Contents 2 lamps (pair)
Lamp Type Stop / Tail / Indicator
LED Configuration 6 x SMD
Voltage Range 12V – 24V
Dimensions 131mm x 30mm x 8mm
Cable Length 250mm
Stop Current Draw 0.20A @ 13.8V / 0.20A @ 28V
Tail Current Draw 0.02A @ 13.8V / 0.20A @ 28V
Indicator Current Draw 0.16A @ 13.8V / 0.16A @ 28V
Lens Polycarbonate (Fresnel-style)
Base Material Aluminium
Mounting 3M tape / screw (H or V)
Protection Rating IP67
ECE Approval Stop / Tail / Indicator (H/V)
CTA Approval CTA-060225
Warranty 5 years
Weight 0.10 kg

Compatible With / Goes Well With

  • Trailers, caravans, trucks, and commercial vehicles requiring low-profile stop/tail/indicator lamps
  • 12V light vehicles and 24V heavy transport applications
  • Battery-sensitive builds requiring low current draw rear lighting
  • Installations requiring horizontal or vertical mounting flexibility
  • LED Autolamps 12ACM-2 indicator lamp (same 12 series form factor)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

What is included in the 12ARM-2 pack?

The pack contains two lamps — a complete pair for left and right rear installation — along with 3M tape and screws for mounting.

Why is the low current draw important for the 12ARM-2?

At just 0.20A stop, 0.02A tail, and 0.16A indicator at 13.8V, the 12ARM-2 places minimal load on the vehicle's battery system — particularly valuable for trailer and caravan builds running multiple lamps or battery-based setups.

What compliance approvals does the 12ARM-2 carry?

The 12ARM-2 is ECE approved for stop, tail, and indicator functions in both horizontal and vertical mounting orientations, with CTA approval reference CTA-060225. Refer to ADR 13/00 for correct mounting instructions.

Can the 12ARM-2 be mounted in any orientation?

Yes. It is tested and approved for both horizontal and vertical surface mounting — giving flexibility to suit different panel layouts on trailers, caravans, and truck bodies.

What warranty does the 12ARM-2 carry?

The 12ARM-2 is backed by a 5-year warranty from LED Autolamps.

Weight

0.10 kg (per lamp)
