Product features

ADR Approved 64 LED Square Stop/Tail Lamp with Clip-In Replaceable Lens 5-Year Warranty

Product Overview

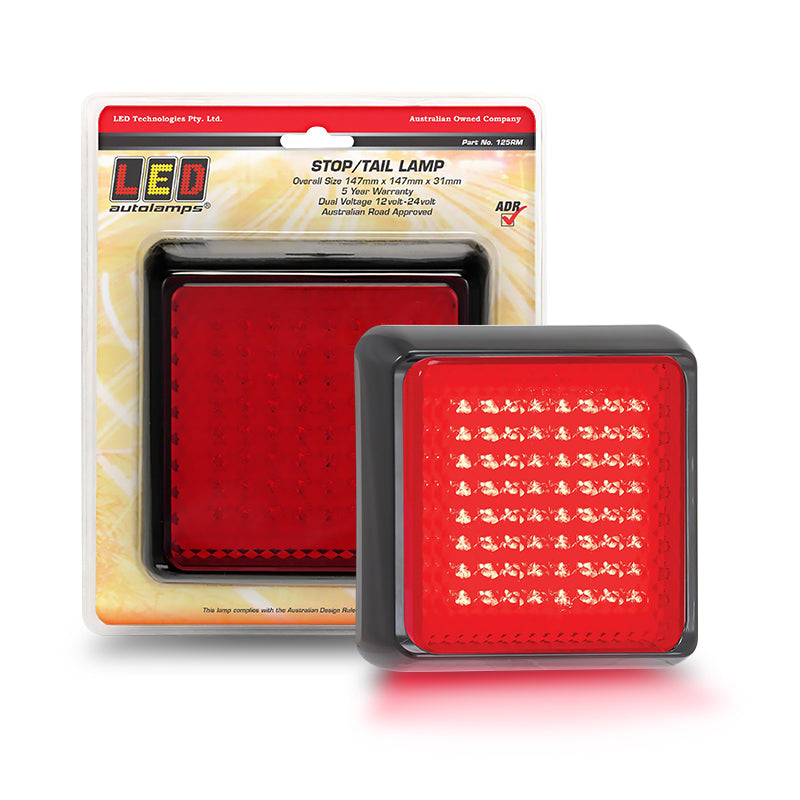

The LED Autolamps 125RM is a 12/24V square stop/tail lamp fitted with 64 LEDs, supplied with a 30cm pre-wired lead for surface mounting on trailers, trucks, caravans, and tray bodies. Measuring 147mm x 147mm x 31mm, it's the stop/tail companion to the 125AM indicator lamp in the 125 series a larger-format step up from the 100 series for applications requiring a more prominent rear light face.

The clip-in replaceable lens allows for quick lens swaps without replacing the full housing. ADR road approved and rated IP67, backed by a 5-year warranty.

Features & Benefits

  • 64 LEDs — delivers bright, consistent red stop/tail output across a large face for strong rear visibility
  • 147mm square form factor — larger than the 100 series for a more prominent stop/tail presence on trailers and truck bodies
  • Clip-in replaceable lens — lens swaps independently from the housing, reducing replacement costs and minimising downtime when a lens is damaged
  • ADR road approved — meets Australian Design Rules for legal on-road use as a stop/tail lamp
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 12/24V multi-voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
  • Pre-wired 30cm lead — ready to connect straight out of the pack
  • Surface mount — straightforward installation on trailer and truck body panels
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 125RM
Lamp Type Stop / Tail
LED Quantity 64
Voltage Range 12V – 24V
Dimensions 147mm x 147mm x 31mm
Cable Length 300mm
Mounting Surface mount
Connector Pre-wired
Lens Clip-in replaceable
Protection Rating IP67
Compliance ADR
Warranty 5 years

Compatible With / Goes Well With

  • Trailers, caravans, trucks, and tray body applications requiring a larger-format stop/tail lamp
  • 12V light vehicles and 24V heavy transport applications
  • Trailer builds requiring ADR-approved stop/tail lighting
  • LED Autolamps 125AM indicator lamp (same 125 series form factor)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 125RM approved for road use in Australia?

Yes. The LED Autolamps 125RM is ADR road approved, meeting Australian Design Rules requirements for legal on-road use as a stop/tail lamp.

How does the 125RM differ from the 100RM stop/tail lamp?

The 125RM is larger at 147mm x 147mm vs 122mm x 122mm and features 64 LEDs vs 49, providing a more prominent stop/tail face for larger trailer and truck body applications.

What does the clip-in replaceable lens mean for maintenance?

The lens clips out independently from the housing and can be replaced without swapping the entire lamp unit — saving cost and reducing installation time in the field.

What is the IP rating on the 125RM?

The 125RM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

What warranty does the 125RM carry?

The 125RM is backed by a 5-year warranty from LED Autolamps.
