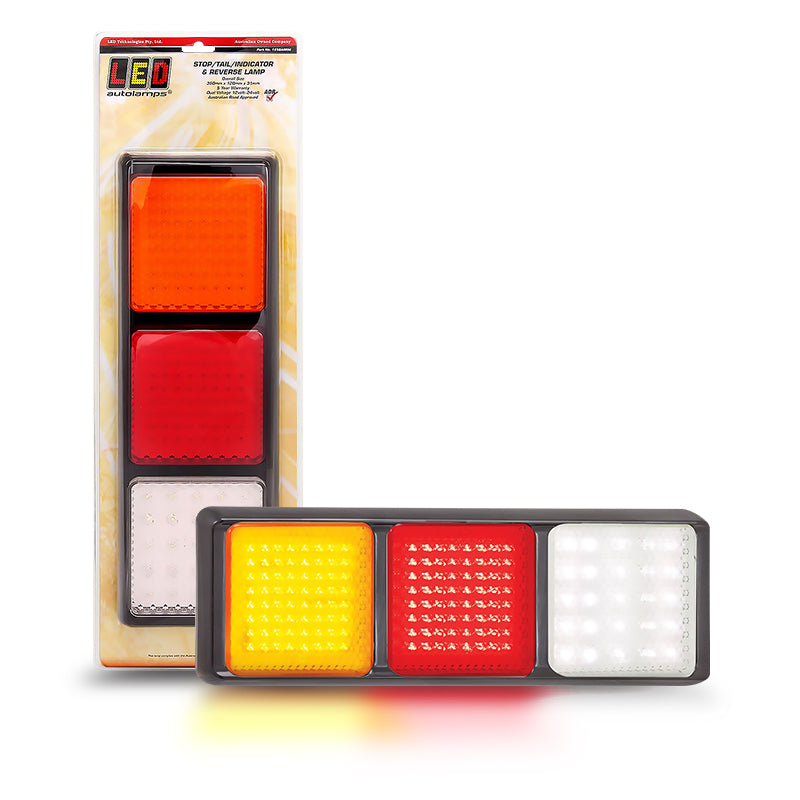

LED Autolamps 125BARWM 12/24V Stop/Tail/Indicator/Reverse Assembly 3 Lamps With 153 LEDs
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 125BARWM 12/24V Stop/Tail/Indicator/Reverse Assembly 3 Lamps With 153 LEDs

SKU: 125BARWM
Price
$455
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR Approved 153 LED Stop/Tail/Indicator/Reverse Assembly 3 Lamps, Individual Lens Replacements

Product Overview

The LED Autolamps 125BARWM is a 12/24V rear combination lamp assembly packing 153 LEDs across three lamps covering stop, tail, indicator, and reverse functions in a single 435mm x 146mm x 31mm surface-mount unit. The three-lamp configuration provides distinct function zones across the assembly face for clear, visible rear lighting on trailers, tray bodies, and trucks.

Individual lens replacements allow each section to be swapped independently without replacing the full assembly a practical cost-saving advantage for fleet operators and trailer builders. ADR road approved and rated IP67, backed by a 5-year warranty.

Features & Benefits

  • 153 LEDs across 3 lamps — high LED count spread across stop, tail, indicator, and reverse zones for strong, consistent rear visibility
  • Stop, tail, indicator, and reverse in one assembly — complete four-function rear lighting in a single 435mm unit, reducing wiring complexity
  • Individual lens replacements — each lamp lens can be replaced independently, avoiding full assembly replacement for a single damaged lens
  • Wide 435mm bar format — suits the rear panels of trailers, tray bodies, and truck bodies with a prominent, low-profile footprint
  • ADR road approved — meets Australian Design Rules for legal on-road use across all functions
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 12/24V multi-voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 125BARWM
Lamp Type Stop / Tail / Indicator / Reverse
LED Quantity 153
Lamp Count 3
Voltage Range 12V – 24V
Dimensions 435mm x 146mm x 31mm
Lens Individual replacements
Mounting Surface mount
Protection Rating IP67
Compliance ADR
Warranty 5 years
Weight 0.98 kg

Compatible With / Goes Well With

  • Trailers, tray bodies, and trucks requiring wide-format four-function rear combination lighting
  • 12V light vehicles and 24V heavy transport applications
  • Trailer and truck builds requiring ADR-approved stop/tail/indicator/reverse lighting
  • LED Autolamps individual replacement lenses for the 125 series
  • LED Autolamps 125BARRM stop/tail/indicator assembly (same form factor, without reverse)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 125BARWM approved for road use in Australia?

Yes. The LED Autolamps 125BARWM is ADR road approved, meeting Australian Design Rules requirements for legal on-road use across all four functions.

What does individual lens replacement mean for maintenance?

Each of the three lamp lens sections can be replaced independently rather than replacing the entire assembly — reducing costs and minimising downtime when a single lens is damaged.

How does the 125BARWM differ from the 125BARRM?

The 125BARWM adds a reverse function and increases the LED count to 153 across 3 lamps, while the 125BARRM covers stop, tail, and indicator only. Both share the same 435mm x 146mm x 31mm form factor.

What is the IP rating on the 125BARWM?

The 125BARWM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

What warranty does the 125BARWM carry?

The 125BARWM is backed by a 5-year warranty from LED Autolamps.

Weight

0.98 kg
