Product features

ADR Approved 128 LED Right-Hand Rear Combination Assembly for Medium Trucks IP67, 5-Year Warranty

Product Overview

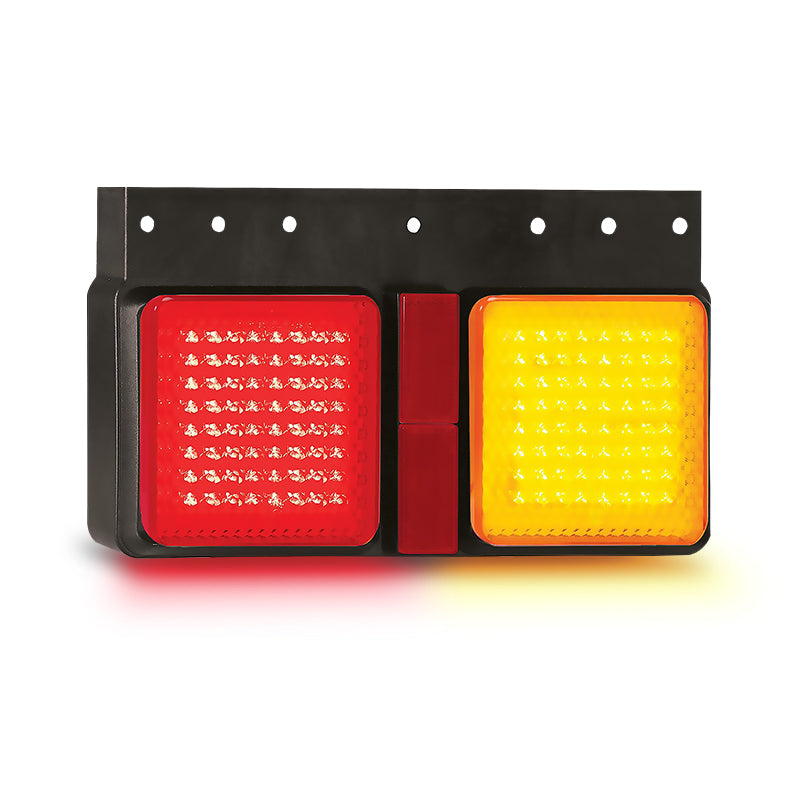

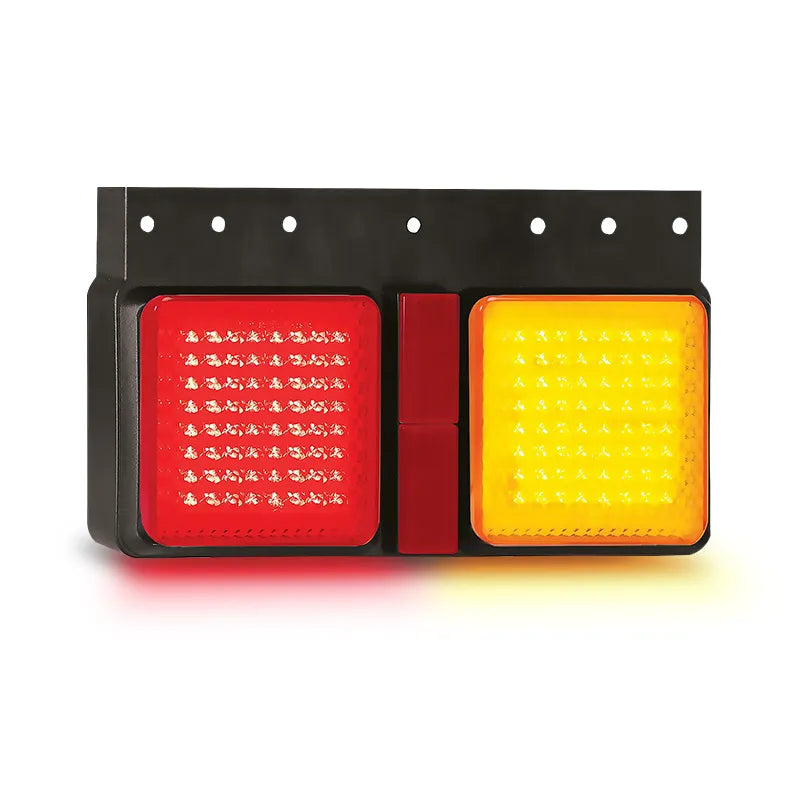

The LED Autolamps 125BARMR is a 12/24V right-hand rear combination lamp assembly delivering stop, tail, and indicator functions across 128 round LEDs, purpose-built for medium trucks. Measuring 340mm x 200mm x 60mm, it matches the 125BARML left-hand assembly for a fully compliant, symmetrical rear lighting installation.

ADR road approved and rated IP67, the 125BARMR is backed by a 5-year warranty. It mounts horizontally using top or back mounting holes with wiring routed through the rear refer to ADR 13/00 for correct mounting instructions.

Features & Benefits

  • Right-hand specific — designed for the right side of the vehicle; pair with the 125BARML left-hand assembly for a complete rear lighting install
  • 128 round LEDs across three functions — high LED count delivers strong, consistent stop, tail, and indicator output for maximum rear visibility
  • Designed for medium trucks — 340mm x 200mm form factor engineered specifically for medium truck body rear lighting applications
  • ADR road approved — meets Australian Design Rules for legal on-road use across stop, tail, and indicator functions
  • IP67 rated — fully sealed against dust and water immersion, built for demanding transport environments
  • 12/24V multi-voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 125BARMR
Side Right Hand
Lamp Type Stop / Tail / Indicator
LED Quantity 128 round
Voltage Range 12V – 24V
Dimensions 340mm x 200mm x 60mm
Mounting Top or back mount (refer ADR 13/00)
Protection Rating IP67
Compliance ADR
Warranty 5 years
Weight 1.4 kg

Compatible With / Goes Well With

  • Medium trucks requiring ADR-approved rear combination lighting
  • 12V light commercial vehicles and 24V heavy transport
  • LED Autolamps 125BARML left-hand assembly (matching left-hand pair)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 125BARMR approved for road use in Australia?

Yes. The LED Autolamps 125BARMR is ADR road approved, meeting Australian Design Rules requirements for legal on-road use across stop, tail, and indicator functions.

What is the left-hand pair for the 125BARMR?

The matching left-hand assembly is the LED Autolamps 125BARML. Both should be fitted together for a complete and compliant rear lighting installation on medium trucks.

How is the 125BARMR mounted?

It mounts horizontally using top or back mounting holes, with wiring routed through the rear of the assembly. Refer to ADR 13/00 for correct mounting instructions and compliance requirements.

What functions does the 125BARMR cover?

It combines stop, tail, and indicator functions in a single right-hand assembly, providing a complete rear lighting solution for medium trucks.

What warranty does the 125BARMR carry?

The 125BARMR is backed by a 5-year warranty from LED Autolamps.
