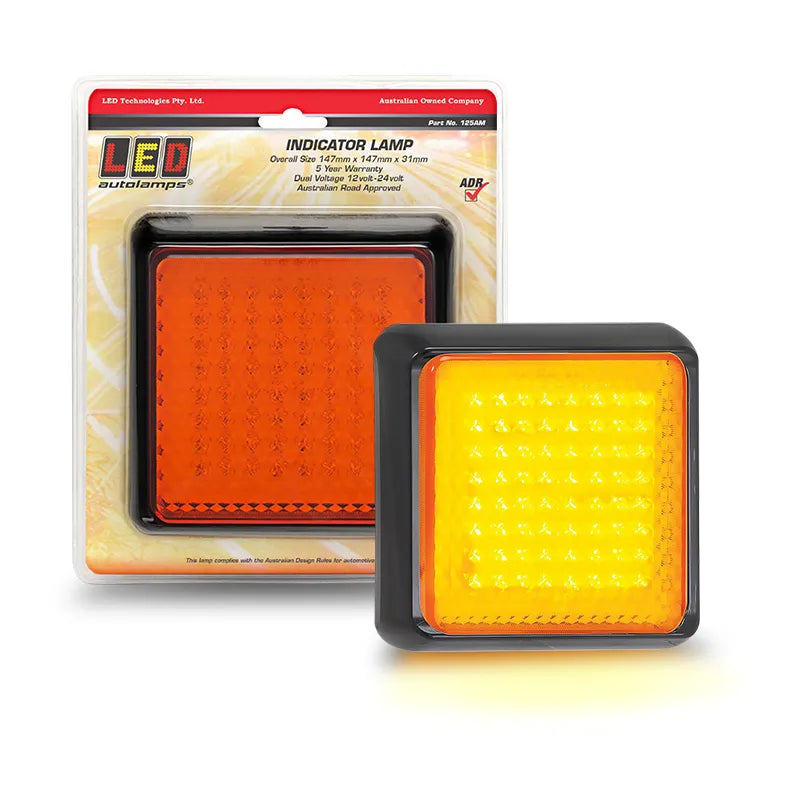

LED Autolamps 125AM 12/24V Indicator Lamp 64 LEDs With 30cm Wire
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 125AM 12/24V Indicator Lamp 64 LEDs With 30cm Wire

SKU: 125AM
Price
$146
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR Approved 64 LED Square Indicator Lamp with Clip-In Replaceable Lens 5-Year Warranty

Product Overview

The LED Autolamps 125AM is a 12/24V square rear indicator lamp fitted with 64 LEDs, supplied with a 30cm pre-wired lead for surface mounting on trailers, trucks, caravans, and tray bodies. Measuring 147mm x 147mm x 31mm, it's a larger-format step up from the 100 series, delivering a wider, more prominent amber indicator face for increased rear visibility.

The clip-in replaceable lens allows for quick lens swaps without replacing the full housing, keeping maintenance straightforward and cost-effective. ADR approved under CRN33165 and rated IP67, the 125AM is backed by a 5-year warranty.

Features & Benefits

  • 64 LEDs — high LED count delivers bright, consistent amber indicator output across a large face for strong rear visibility
  • 147mm square form factor — larger than the 100 series for a more prominent indicator presence on trailers and truck bodies
  • Clip-in replaceable lens — lens swaps independently from the housing, reducing replacement costs and minimising downtime when a lens is damaged
  • ADR road approved — compliant under CRN33165 for legal on-road use as a rear indicator lamp in Australia
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 12/24V multi-voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
  • Pre-wired 30cm lead — ready to connect straight out of the pack
  • Surface mount — straightforward installation on trailer and truck body panels
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 125AM
Lamp Type Rear Indicator
LED Quantity 64
Voltage Range 12V / 24V
Dimensions 147mm x 147mm x 31mm
Current Draw 0.4A
Cable Length 300mm
Mounting Surface mount
Connector Pre-wired
Lens Clip-in replaceable
Protection Rating IP67
Compliance ADR — CRN33165
Warranty 5 years
Weight 0.3 kg

Compatible With / Goes Well With

  • Trailers, caravans, trucks, and tray body applications requiring a larger-format indicator lamp
  • 12V light vehicles and 24V heavy transport applications
  • Trailer builds requiring ADR-approved rear indicator lighting
  • LED Autolamps 125RM stop/tail lamp (same 125 series form factor)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 125AM approved for road use in Australia?

Yes. The 125AM is ADR approved under CRN33165, meeting Australian Design Rules for legal on-road use as a rear indicator lamp.

How does the 125AM differ from the 100AM indicator lamp?

The 125AM is larger at 147mm x 147mm vs 122mm x 122mm and features 64 LEDs vs 49, delivering a more prominent indicator face and greater output for larger trailer and truck body applications.

What does the clip-in replaceable lens mean for maintenance?

The lens clips out independently from the housing and can be replaced without swapping the entire lamp unit — saving cost and reducing installation time in the field.

What is the IP rating on the 125AM?

The 125AM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

What warranty does the 125AM carry?

The 125AM is backed by a 5-year warranty from LED Autolamps.

Weight

0.3 kg
