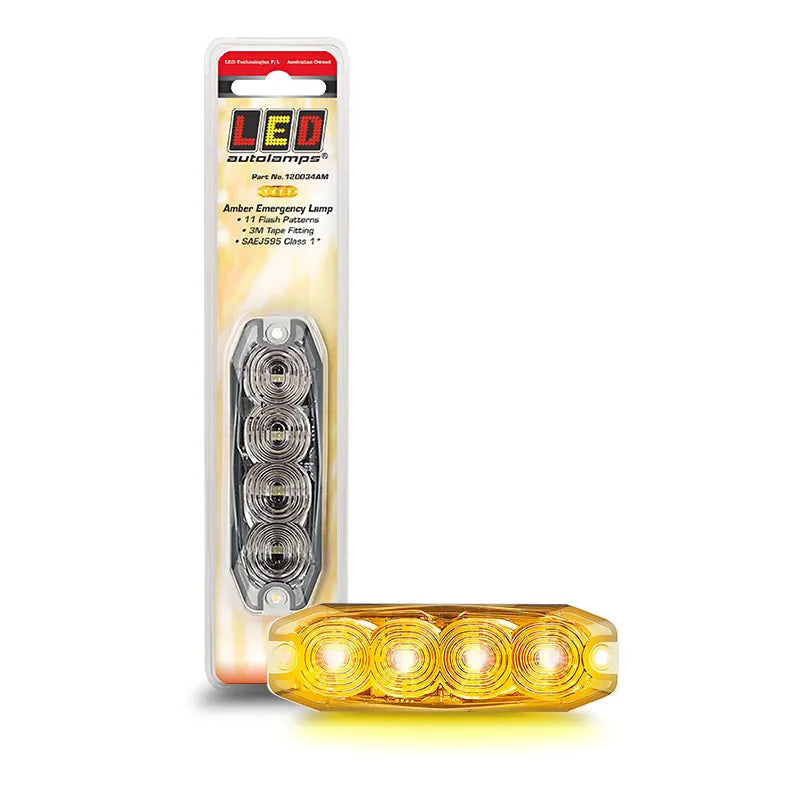

LED Autolamps 120034AM Amber Emergency Lamp, 11 Flash Patterns

LED Autolamps 120034AM 12-24V Amber LED Emergency Warning Lamp 11 Flash Patterns SAE J595 Class 1 and 2 IP67 with Synchronising Wire

The LED Autolamps 120034AM is a 12-24V amber LED emergency warning lamp with 11 selectable flash patterns and a synchronising wire for multi-lamp coordination. SAE J595 Class 1 and 2 certified, IP67 waterproof, 3M tape or screw mount. 89mm x 30mm x 8mm. Three-year warranty. Sold individually.

Product overview

The 120034AM is the amber variant of the LED Autolamps 120034 emergency warning lamp range. It shares the same ultra-slim 89mm x 30mm x 8mm Horizon series form factor and 11 selectable flash patterns as the 120033 range. The 120034AM carries dual SAE J595 Class 1 and Class 2 certification covering both the highest and second-tier SAE warning lamp output classifications. The synchronising wire allows multiple lamps to be coordinated for matched flash patterns. The 3M tape or screw fixing allows mounting on flat and curved surfaces. IP67 rated. 12-24V compatible. Available in five colours across the 120034 range.

Features and benefits

Amber LED output: Suited to emergency and safety vehicle applications where amber warning lighting is required.

11 selectable flash patterns: Flexible warning output suited to a range of emergency and safety applications.

SAE J595 Class 1 and 2 certified: Dual-class SAE certification covering both the highest and second-tier warning lamp output classifications.

Synchronising wire included: Links multiple units to flash in unison for a coordinated emergency lighting setup.

IP67 fully waterproof and submersible: Suited to outdoor and exposed vehicle body mounting.

3M tape or screw fixing: Flexible mounting on flat and curved surfaces.

Ultra-slim 8mm profile: 89mm x 30mm x 8mm housing.

12V and 24V compatible: Suits light vehicles and heavy transport.

Available in five colours across the 120034 range.

Three-year warranty.

Sold individually.

Technical specs

Frequently asked questions

What compliance certification does the 120034AM carry? The 120034AM carries dual SAE J595 Class 1 and Class 2 certification covering both the highest and second-tier SAE classifications for vehicle warning lamps.

How does the 120034AM differ from the 120033AM? Both lamps share the same 89mm x 30mm x 8mm form factor and 11 flash patterns. The 120034AM carries dual SAE J595 Class 1 and 2 certification while the 120033AM is Class 1 only. Confirm which certification is required for your application before purchasing.

How does the synchronising wire work? The synchronising wire links multiple 120034AM units together so they flash in the same pattern simultaneously, providing a coordinated warning light display across a vehicle.

What mounting options does the 120034AM support? The 120034AM can be mounted using 3M adhesive tape or screws in either horizontal or vertical orientation, suited to a wide range of vehicle surfaces and body panels.

What other colours are available in the 120034 range? The 120034 series is available in five colours. Contact us to confirm the availability of all colour variants.
