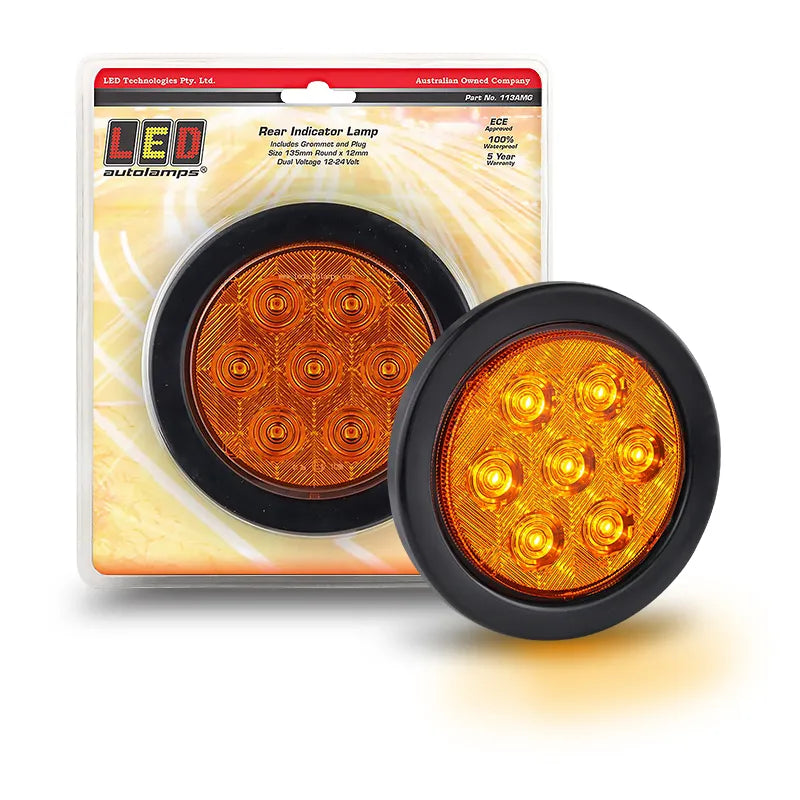

LED Autolamps 113AMG 12/24V Rear Indicator Light With Amber Lens Blister Pack

LED Autolamps 113AMG 12 to 24V Rear LED Indicator Lamp Amber Acrylic Lens 113mm with 135mm Grommet and 3 Pin Plug ECE Approved IP67

The LED Autolamps 113AMG is a 12 to 24V rear amber LED indicator lamp with an acrylic lens, supplied with a 135mm x 12mm grommet and 3 pin plug and cable. ECE approved (ECE 2a-E9-01 11288), IP67 waterproof, 0.16A current draw at 13.8V. Five year warranty. Sold individually.

Product overview

The 113AMG is the complete installation version of the 113 series amber indicator lamp, including the grommet and plug for a ready to install panel mount setup. The 113mm lamp body fits into a 135mm x 12mm grommet cutout. The acrylic amber lens provides correct amber output for ECE compliant rear indicator use. 0.16A current draw at 13.8V is efficient across 12V and 24V applications. ECE 2a-E9-01 11288 approval confirms road legal use. For the lamp only version without grommet, see the 113AMB.

Features and benefits

Grommet and 3 pin plug and cable included: Complete panel mount installation hardware supplied.

Amber acrylic lens: Correct amber output for ECE compliant rear indicator use.

113mm lamp, 135mm x 12mm grommet cutout: Low profile flush mount for a clean panel installation.

ECE approved (ECE 2a-E9-01 11288): Meets international road approval standards for legal on road use.

IP67 fully waterproof and submersible: Suited to trailer, caravan, and off road environments.

12V and 24V compatible: Suits light vehicle trailers and 24V heavy transport.

0.16A current draw at 13.8V.

Five year warranty.

Sold individually.

Technical specs

Warranty

LED Autolamps warranty: 5 years. Faulty installation, overvoltage and accidental damage are not covered. Your rights under Australian Consumer Law also apply.

Frequently asked questions

Is the 113AMG approved for road use in Australia?

Yes. The 113AMG holds ECE approval ECE 2a-E9-01 11288, meeting international road approval standards accepted for on road use in Australia.

What is the difference between the 113AMG and the 113AMB?

The 113AMG includes a 135mm x 12mm grommet and 3 pin plug and cable for a complete panel mount installation. The 113AMB is supplied without a grommet or plug and suits installations where mounting hardware is already in place or sourced separately.

What is the grommet size for the 113AMG?

The 113AMG uses a 135mm x 12mm grommet. The lamp body is 113mm in diameter.

What is the current draw of the 113AMG?

The 113AMG draws 0.16A at 13.8V.

Does the 113AMG work on both 12V and 24V systems?

Yes. The 113AMG operates across 12V to 24V, making it compatible with light vehicle trailers and 24V heavy transport without modification.
