Product features

ADR Approved 12/24V Round Stop/Tail Lamp with Chrome Flange and Grommet IP67 Recessed Mount

Product Overview

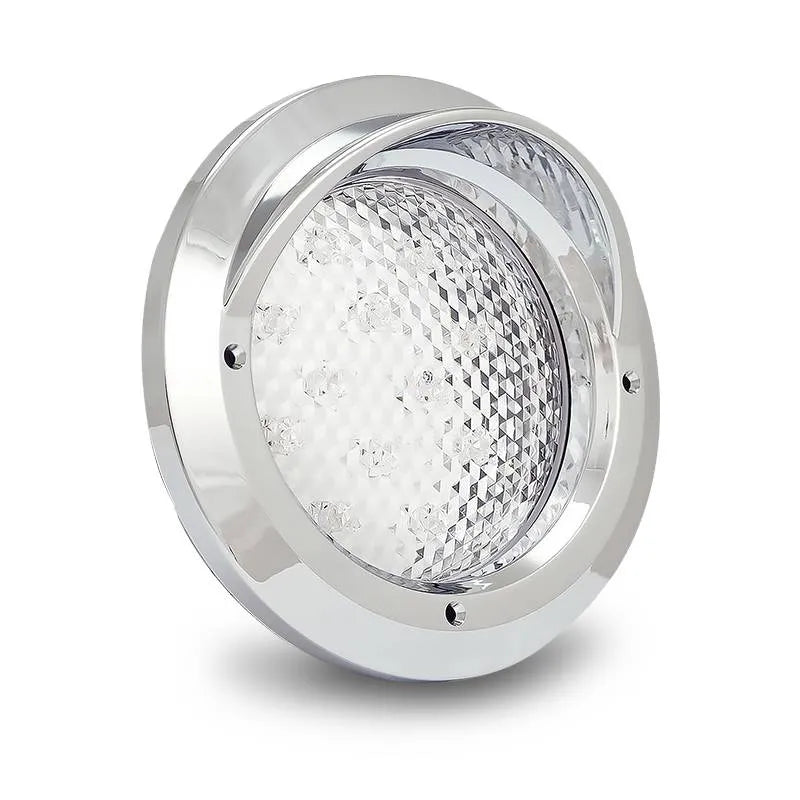

The LED Autolamps 110CCRM is a 12/24V round stop/tail lamp with a chrome flange and grommet, designed for recessed mounting on trailers, trucks, and commercial vehicles. Measuring 148mm in diameter at 30mm deep, it combines a polished chrome bezel with reliable, road-legal stop/tail output in a single weatherproof package.

Supplied with a grommet for a sealed, vibration-resistant fit in the mounting panel, the 110CCRM draws 0.23A at 13.8V and is rated IP67. ADR approved and backed by a 5-year warranty, it's the stop/tail companion to the 110CCAM indicator lamp for a fully matched chrome rear lighting set.

Features & Benefits

  • Chrome flange and bezel — premium polished finish suits trailer and truck builds where appearance is as important as compliance
  • Grommet included — provides a sealed, vibration-resistant fit in the recessed panel cutout
  • Recessed mount — 30mm depth for a clean, flush fit on trailer and truck body panels
  • ADR approved — meets Australian Design Rules for legal on-road use as a stop/tail lamp
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 12/24V multi-voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
  • 0.23A current draw — efficient operation suited to multi-lamp trailer lighting setups
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 110CCRM
Lamp Type Stop / Tail
Voltage Range 12V – 24V
Diameter 148mm
Depth 30mm
Current Draw 0.23A @ 13.8V
Bezel Chrome
Included Accessories Grommet
Mounting Recessed
Protection Rating IP67
Compliance ADR
Warranty 5 years

Compatible With / Goes Well With

  • Trailers, trucks, and commercial vehicles requiring recessed stop/tail lamps
  • 12V light vehicles and 24V heavy transport applications
  • Trailer builds requiring ADR-approved stop/tail lighting with a chrome finish
  • LED Autolamps 110CCAM chrome indicator lamp (matching chrome finish)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 110CCRM approved for road use in Australia?

Yes. The LED Autolamps 110CCRM is ADR approved, meeting Australian Design Rules requirements for legal on-road use as a stop/tail lamp.

What is included with the 110CCRM?

The 110CCRM is supplied with a grommet, which provides a sealed, vibration-resistant fit when installed into a recessed panel cutout.

What is the IP rating on the 110CCRM?

The 110CCRM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

Does the 110CCRM match the 110CCAM indicator lamp?

Yes. Both the 110CCRM and 110CCAM feature the same chrome bezel finish and 148mm round recessed form factor, making them a natural matched set for trailer and truck rear lighting builds.

What warranty does the 110CCRM carry?

The 110CCRM is backed by a 5-year warranty from LED Autolamps.
