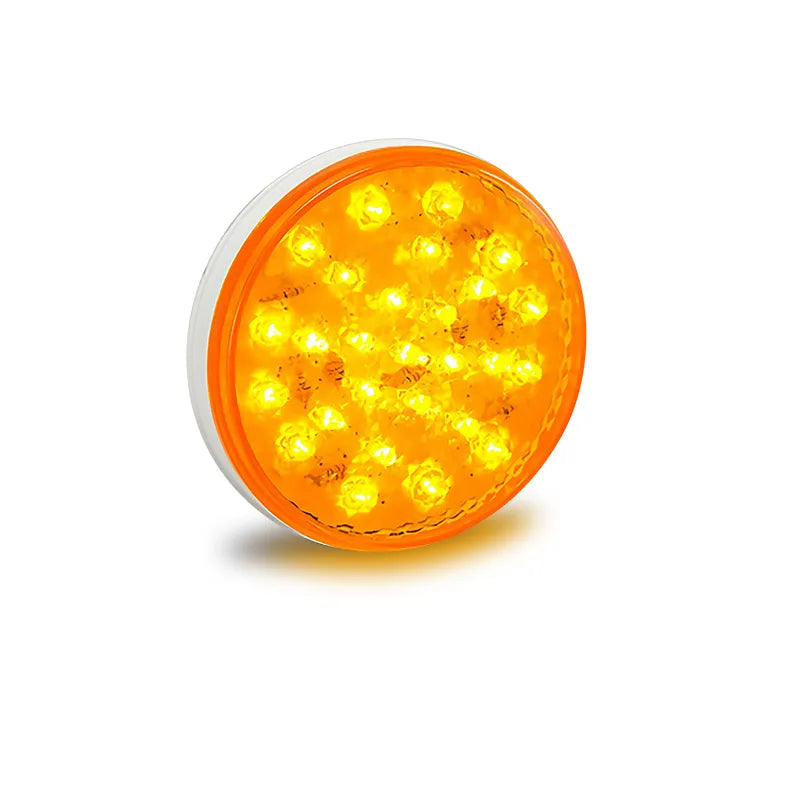

LED Autolamps 110AMB 10/30V Indicator Lamp With 27 LED (109mm, Round)
Click to open expanded view
LED AUTOLAMPS logo

Out of stock

LED Autolamps 110AMB 10/30V Indicator Lamp With 27 LED (109mm, Round)

SKU: 110AMB
Regular price
$111
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR Approved 27 LED Flush Mount Round Indicator Lamp Low Profile, IP67 Rated

Product Overview

The LED Autolamps 110AMB is a 10/30V low-profile round indicator lamp fitted with 27 LEDs, designed for flush recess mounting on trailers, trucks, and commercial vehicles. Measuring 130mm in diameter at just 12mm deep, it delivers a clean, unobtrusive look while meeting ADR road approval requirements for rear indicator use.

Supplied as a lamp only no plug or grommet included the 110AMB connects via a 3-pin plug and cable. Rated IP67 and drawing just 0.16A at 13.8V, it's an efficient, weatherproof choice for builders and auto electricians fitting out trailer and truck bodies.

Features & Benefits

  • 27 LEDs — delivers bright, consistent amber indicator output for strong rear visibility across all conditions
  • Low-profile flush recess mount — 12mm depth keeps the lamp sitting close to the panel for a clean, integrated appearance
  • ADR road approved — meets Australian Design Rules for legal on-road use as a rear indicator lamp
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 10/30V multi-voltage — compatible with 12V light vehicles and 24V/28V heavy transport without modification
  • 3-pin plug and cable connector — straightforward wiring connection for trailer and truck body installations
  • Low current draw — 0.16A at 13.8V makes it an efficient choice for multi-lamp trailer lighting setups
  • Lamp only — no plug or grommet included; suits builders sourcing components separately to suit their specific installation

Technical Specs

Specification Detail
SKU 110AMB
Lamp Type Rear Indicator
LED Quantity 27
Voltage Range 10V – 30V
Diameter 130mm
Depth 12mm
Current Draw 0.16A @ 13.8V
Mounting Flush recess
Connector 3-pin plug and cable
Protection Rating IP67
Compliance ADR
Supplied Lamp only (no plug or grommet)
Weight 0.13 kg

Compatible With / Goes Well With

  • Trailers, trucks, and commercial vehicles requiring flush-mount indicator lamps
  • 12V light vehicles and 24V/28V heavy transport applications
  • Trailer builds requiring ADR-approved rear indicator lighting
  • LED Autolamps wiring harnesses, plugs, and trailer lighting accessories

Frequently Asked Questions

Is the 110AMB approved for road use in Australia?

Yes. The LED Autolamps 110AMB is ADR road approved, meeting Australian Design Rules requirements for use as a rear indicator lamp on Australian roads.

Does the 110AMB come with a plug or grommet?

No. The 110AMB is supplied as a lamp only — plug and grommet are not included and will need to be sourced separately to suit your specific installation.

What is the IP rating on the 110AMB?

The 110AMB is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

How is the 110AMB mounted?

It is designed for flush recess mounting, sitting just 12mm deep into the panel for a clean, low-profile finish on trailer and truck bodies.

Does the 110AMB work on both 12V and 24V systems?

Yes. It operates across 10V to 30V, making it compatible with 12V light vehicles through to 24V and 28V heavy transport applications without any modification.

Weight

0.13 kg
