LED Autolamps 102RC 12V Round Stop/Tail Lamp With Clear Lens Recessed Mount 130mm
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 102RC 12V Round Stop/Tail Lamp With Clear Lens Recessed Mount 130mm

SKU: 102RC
Price
$81
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR 49/00 Approved 12V Round Stop/Tail Lamp Clear Lens, Recessed Mount, 5-Year Warranty

Product Overview

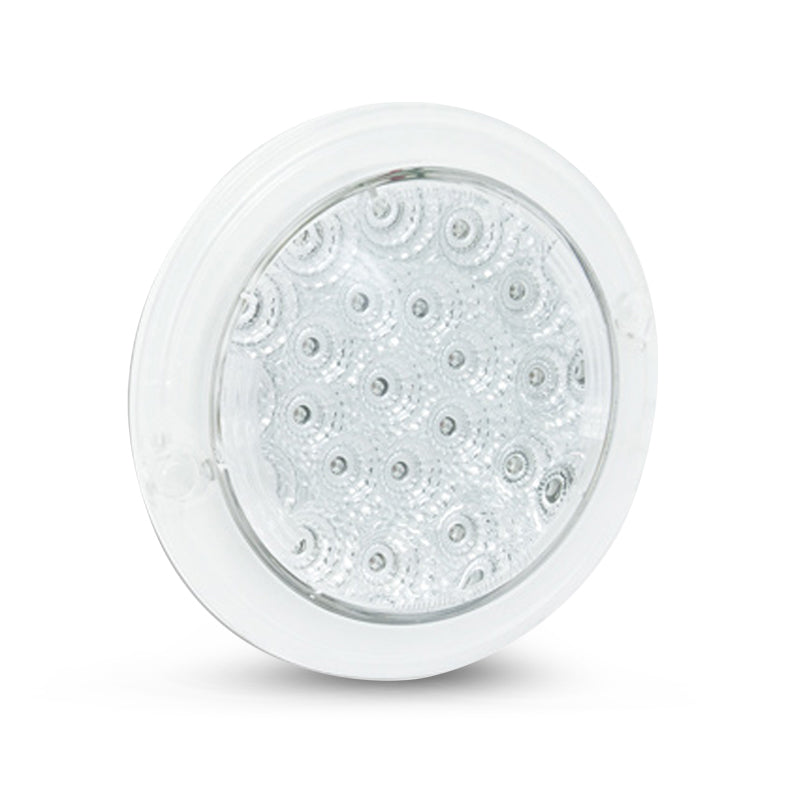

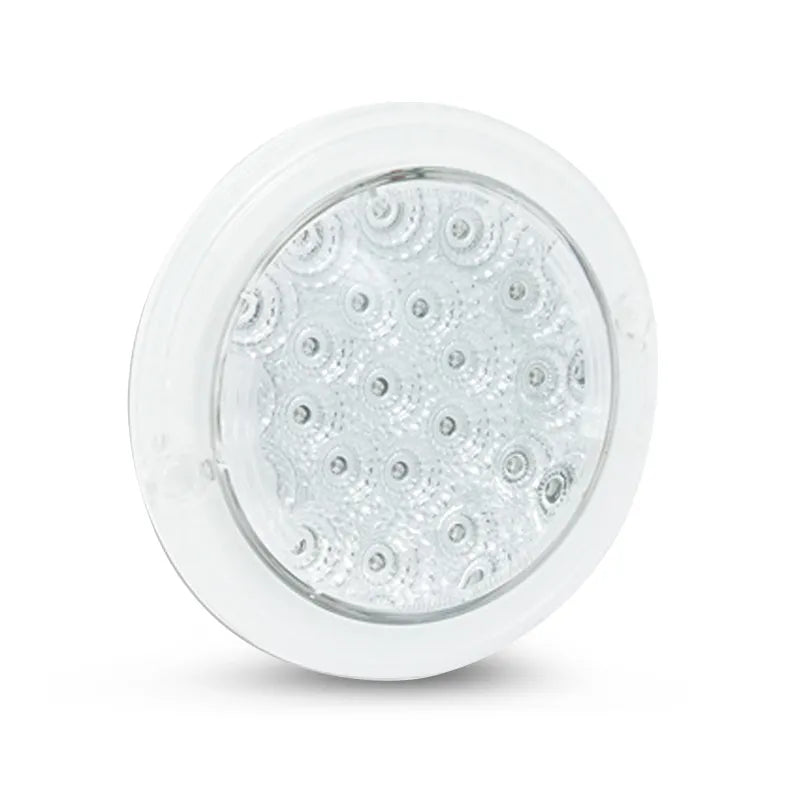

The LED Autolamps 102RC is a 12V round stop/tail lamp with a clear lens, designed for low-profile recessed mounting on trailers, trucks, and commercial vehicles. At 130mm in diameter and mounted flush with the panel surface, it delivers a clean, modern appearance the red stop/tail output activates via the LEDs when the lamp is energised, while the lens appears clear when inactive.

Wired with a 0.4m cable and compliant with ADR 49/00, the 102RC is a road-legal, weatherproof stop/tail solution backed by a 5-year warranty.

Features & Benefits

  • Clear lens when inactive — the lamp presents a clean, clear appearance at rest; red stop/tail colour activates only when the lamp is energised
  • Low-profile recessed mount — sits flush with the mounting panel for a clean, integrated finish on trailer and truck bodies
  • ADR 49/00 compliant — meets Australian Design Rules for legal on-road use as a stop/tail lamp
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 0.4m pre-wired cable — ready to connect straight out of the pack
  • 12V only — designed for 12V trailer and vehicle electrical systems
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 102RC
Lamp Type Stop / Tail
Lens Colour Clear (inactive)
Voltage 12V
Diameter 130mm
Stop Current Draw 0.04A @ 13.8V
Tail Current Draw 0.31A @ 13.8V
Mounting Recessed
Connector 0.4m cable
Protection Rating IP67
Compliance ADR 49/00
Warranty 5 years

Compatible With / Goes Well With

  • Trailers, caravans, trucks, and commercial vehicles requiring recessed stop/tail lamps
  • 12V trailer and vehicle electrical systems
  • Trailer builds requiring ADR 49/00 approved stop/tail lighting
  • LED Autolamps 102AC clear lens indicator lamp (matching clear lens finish)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 102RC approved for road use in Australia?

Yes. The LED Autolamps 102RC is compliant with ADR 49/00, meeting Australian Design Rules requirements for legal on-road use as a stop/tail lamp.

What does "clear lens when inactive" mean?

When the lamp is not energised, the lens appears clear rather than red. The red stop/tail colour is produced by the LEDs and only becomes visible when the lamp is activated.

What is the IP rating on the 102RC?

The 102RC is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

How does the 102RC differ from the 102R?

The 102RC features a clear lens that appears colourless when inactive, while the 102R uses a red lens. Both are 12V recessed mount round stop/tail lamps in the 102 series.

What warranty does the 102RC carry?

The 102RC is backed by a 5-year warranty from LED Autolamps.
