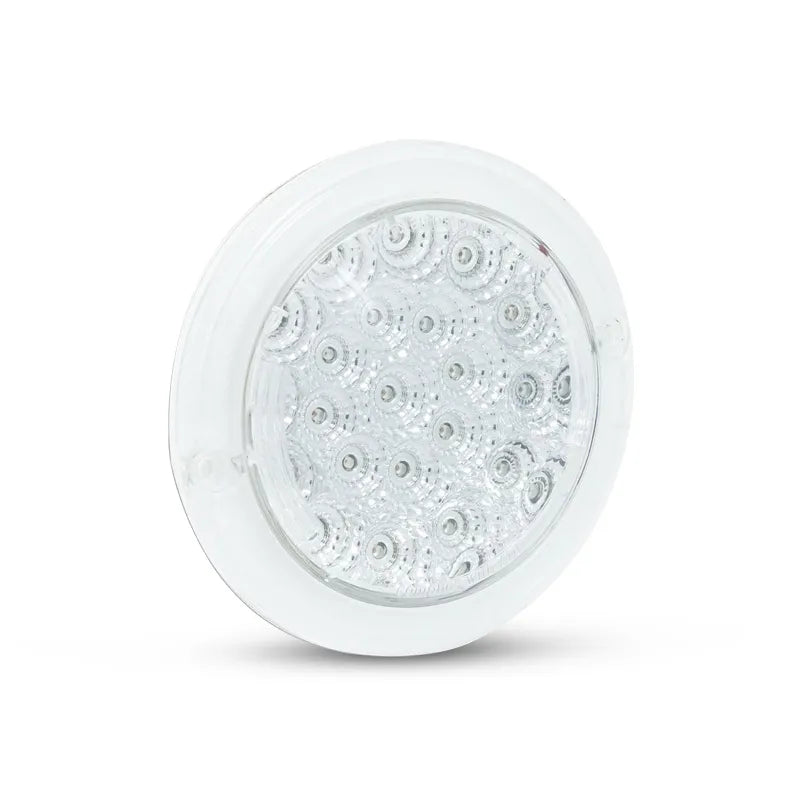

LED Autolamps 102ACM 12/24V Round Indicator Lamp With Clear Lens 130mm Diameter Recessed Mount
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 102ACM 12/24V Round Indicator Lamp With Clear Lens 130mm Diameter Recessed Mount

SKU: 102ACM
Price
$91
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR Approved 12/24V Round Indicator Lamp with Clear Lens Low-Profile Recessed Mount

Product Overview

The LED Autolamps 102ACM is a 12/24V round indicator lamp with a clear lens, built for low-profile recessed mounting on trailers, trucks, and commercial vehicles. Measuring 130mm in diameter at just 12mm deep, it delivers a flush, integrated finish across a wide range of trailer and vehicle body styles.

Surface bases are available for installations requiring surface mounting rather than a recessed fit, giving auto electricians and trailer builders additional flexibility. ADR Australian road approved, IP67 rated, and backed by a 5-year warranty, the 102ACM is the multi-voltage counterpart to the 12V-only 102AC.

Features & Benefits

  • Clear lens — presents a clean, colourless appearance when inactive; amber indicator colour activates when the lamp is energised
  • Low-profile recessed mount — 12mm depth sits flush with the mounting panel for a clean, integrated finish
  • Surface bases available — for installations requiring surface mounting rather than recessed fitting; contact F.A.E. for compatible surface base options
  • ADR Australian road approved — meets Australian Design Rules for legal on-road use as an indicator lamp
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 12/24V multi-voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 102ACM
Lamp Type Indicator
Lens Colour Clear
Voltage Range 12V / 24V
Diameter 130mm
Depth 12mm
Mounting Low-profile recessed (surface base available)
Protection Rating IP67
Compliance ADR
Warranty 5 years

Compatible With / Goes Well With

  • Trailers, caravans, trucks, and commercial vehicles requiring recessed indicator lamps
  • 12V light vehicles and 24V heavy transport applications
  • Trailer builds requiring ADR-approved indicator lighting with a clear lens finish
  • Compatible surface mount bases (available separately — confirm with F.A.E.)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 102ACM approved for road use in Australia?

Yes. The LED Autolamps 102ACM is ADR Australian road approved, meeting Australian Design Rules requirements for legal on-road use as an indicator lamp.

How does the 102ACM differ from the 102AC?

The 102ACM operates on both 12V and 24V systems, while the 102AC is a 12V-only lamp. Both share the same 130mm round clear lens recessed mount form factor.

What mounting options are available for the 102ACM?

The 102ACM is designed for low-profile recessed mounting. Surface bases are also available for surface mount installations — contact F.A.E. for compatible options.

What is the IP rating on the 102ACM?

The 102ACM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

What warranty does the 102ACM carry?

The 102ACM is backed by a 5-year warranty from LED Autolamps.
