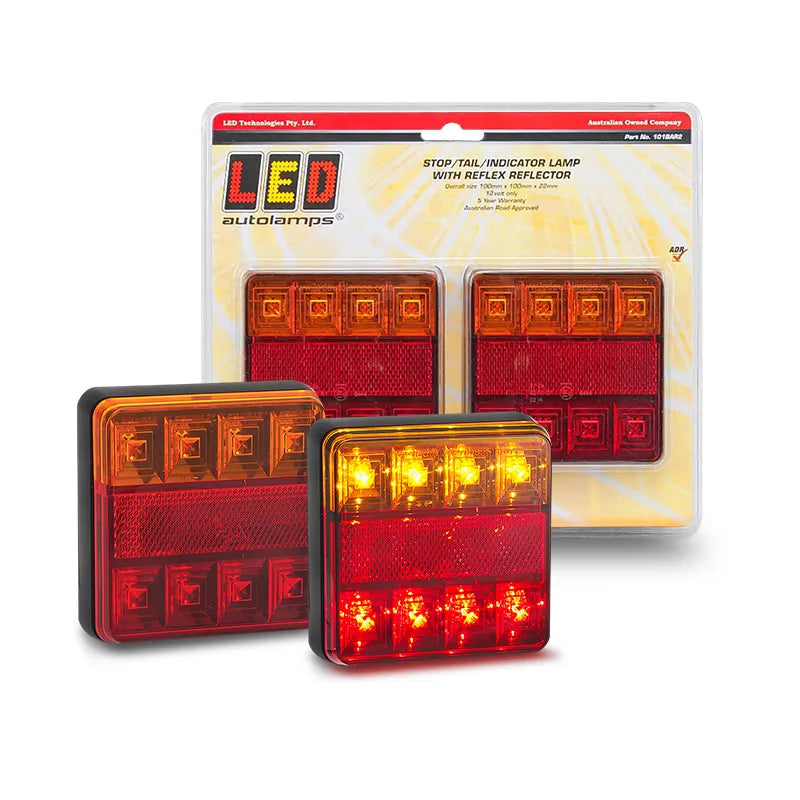

LED Autolamps 101BAR2 12V LED Stop/Tail/Indicator Lamps With Reflector Twin Blister

SKU: 101BAR2
Price
$65
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps 101BAR2 12V Stop Tail Indicator Lamp with Reflector Twin Blister Pack

A twin blister pack of budget 12V LED stop, tail, indicator, and reflector trailer lamps with IP67 rating and ECE road approval, the LED Autolamps 101BAR2 features 8 LEDs per lamp, a low-profile 100 x 100 x 22mm surface mount black housing, and a 40cm pre-wired cable, backed by a 5-year warranty.

Product Overview

The LED Autolamps 101BAR2 is the twin blister pack version of the 101BAR budget LED stop, tail, indicator, and reflector lamp designed for 12V trailer applications. Each lamp in the twin pack is identical to the 101BAR, measuring 100 x 100 x 22mm in a low-profile black housing with surface mount installation. Eight LEDs provide stop, tail, and indicator illumination alongside an integrated reflector. Current draw is 0.13A for stop, 0.04A for tail, and 0.12A for indicator at 13.8V. A 40cm pre-wired cable is included on each lamp. IP67 rated for waterproof and dustproof protection. ECE road approved with individual compliance numbers for stop/tail, indicator, and reflector functions. Supplied as a twin blister pack for complete left and right trailer lamp replacement or new installation.

Features & Benefits

Twin Pack for Complete Trailer Lamp Installation: The 101BAR2 is supplied as a twin blister pack, providing both left and right lamps in a single purchase for a complete trailer rear lamp installation or replacement.

Budget Trailer Lamp with Stop, Tail, Indicator, and Reflector Functions: Each lamp combines stop, tail, indicator, and reflector functions in a single low-profile unit, reducing the number of individual lamp assemblies required on budget trailer builds and replacements.

ECE Road Approved: Each lamp holds ECE road approval for stop/tail (S1-E9-02), indicator (2a-E9-01), and reflector (1A-E9-02) functions, confirming suitability for on-road trailer use.

IP67 Waterproof and Dustproof Rating: The IP67 rating provides full dust protection and waterproof protection against temporary immersion, suited to exposed trailer mounting locations in all weather conditions.

Low-Profile Black Housing: The low-profile 22mm depth black housing minimises protrusion from the trailer body surface, providing a compact and practical installation solution for budget trailers and caravans.

8 LEDs per Lamp: Eight LEDs per lamp provide the illumination required for stop, tail, and indicator functions, delivering reliable visibility for following traffic on road and in trailer applications.

40cm Pre-Wired Cable per Lamp: Each lamp is supplied with a 40cm pre-wired cable for direct connection to the trailer wiring harness.

12V Only: The 101BAR2 is designed for 12V DC trailer and vehicle electrical systems only.

5-Year Warranty: The 101BAR2 is backed by a 5-year LED Autolamps warranty.

Technical Specs

Specification Detail
SKU 101BAR2
Brand LED Autolamps
Function Stop, Tail, Indicator, Reflector
Light Type LED
LED Quantity 8 per Lamp
Input Voltage 12V DC
Current Draw - Stop 0.13A at 13.8V
Current Draw - Tail 0.04A at 13.8V
Current Draw - Indicator 0.12A at 13.8V
Dimensions 100mm x 100mm x 22mm
Housing Colour Black
Mount Surface Mount
Cable Length 40cm per Lamp
IP Rating IP67
ECE Stop/Tail Approval S1-E9-02
ECE Indicator Approval 2a-E9-01
ECE Reflector Approval 1A-E9-02
Pack Quantity 2 Lamps
Packaging Twin Blister
Weight per Lamp 0.16kg
Warranty 5 Years

Compatible With

The 101BAR2 is compatible with 12V DC trailer and vehicle electrical systems only. ECE road approved for on-road trailer use. Confirm mounting dimensions and wiring requirements for your specific trailer before purchase. The single bulk boxed version is available as the 101BAR.

Frequently Asked Questions

How many lamps are included in the 101BAR2 pack?

The 101BAR2 is a twin blister pack containing two lamps, providing both left and right lamps for a complete trailer rear lamp installation or replacement in a single purchase.

What is the difference between the 101BAR2 and the 101BAR?

Both are the same lamp with identical specifications. The 101BAR2 is supplied as a twin blister pack for retail display, while the 101BAR is supplied individually in bulk boxed packaging.

Is the 101BAR2 compatible with 24V systems?

No. The 101BAR2 is designed for 12V DC systems only. Confirm your trailer's operating voltage before purchase.

Is the 101BAR2 ECE approved for on-road use?

Yes. Each lamp in the 101BAR2 pack holds ECE road approval for stop/tail (S1-E9-02), indicator (2a-E9-01), and reflector (1A-E9-02) functions, confirming suitability for on-road trailer use.

Does the 101BAR2 include an integrated reflector?

Yes. Each lamp includes an integrated reflector function alongside stop, tail, and indicator functions, with ECE reflector approval (1A-E9-02).
