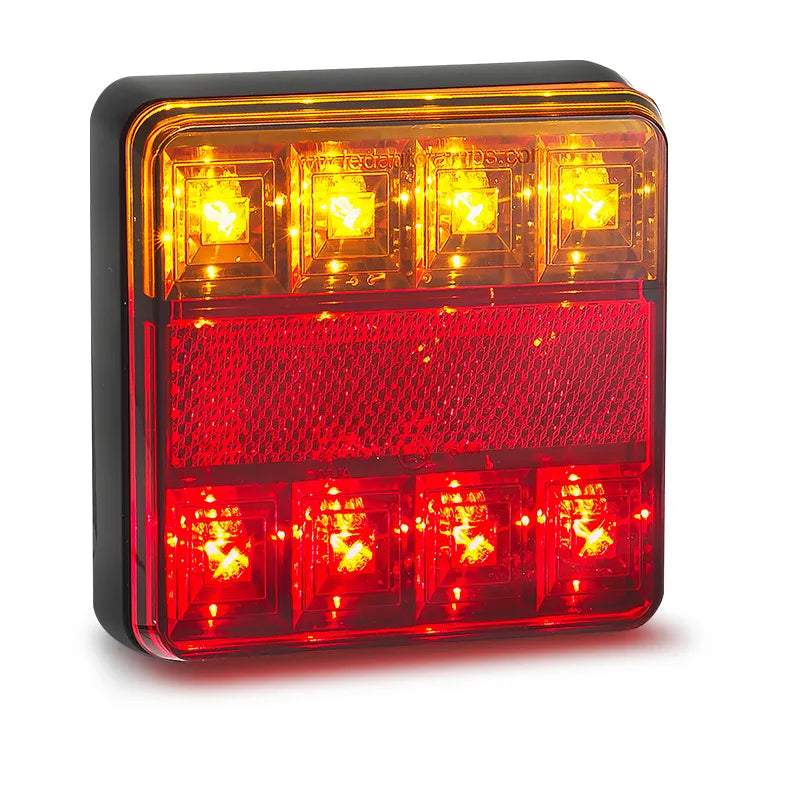

LED Autolamps 101BAR 12V Stop/Tail/Indicator Lamp With Reflector
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 101BAR 12V Stop/Tail/Indicator Lamp With Reflector

SKU: 101BAR
Price
$50
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps 101BAR 12V Stop Tail Indicator Lamp with Reflector

A budget 12V LED stop, tail, indicator, and reflector trailer lamp with IP67 rating and ECE road approval, the LED Autolamps 101BAR features 8 LEDs, a low-profile 100 x 100 x 22mm surface mount design, and a 40cm pre-wired cable, backed by a 5-year warranty.

Product Overview

The LED Autolamps 101BAR is a budget LED stop, tail, indicator, and reflector lamp designed for 12V trailer applications. The low-profile unit measures 100 x 100 x 22mm and is surface mounted via the lamp body. Eight LEDs provide stop, tail, and indicator illumination alongside an integrated reflector. Current draw is 0.13A for stop, 0.04A for tail, and 0.12A for indicator at 13.8V. A 40cm pre-wired cable is included for connection to the trailer wiring harness. IP67 rated for waterproof and dustproof protection. ECE road approved with individual compliance numbers for stop/tail, indicator, and reflector functions, and CTA approved. The 101BAR is supplied in bulk boxed packaging and backed by a 5-year warranty. A twin blister pack version is available as the 101BAR2.

Features & Benefits

Budget Trailer Lamp with Stop, Tail, Indicator, and Reflector Functions: The 101BAR combines stop, tail, indicator, and reflector functions in a single low-profile unit, reducing the number of individual lamp assemblies required on budget trailer builds and replacements.

ECE Road Approved: The 101BAR holds ECE road approval with individual compliance numbers for stop/tail (R1-S1-E9-02.6444), indicator (2a-E9-01.6444), and reflector (1A-E9-02.6444) functions, along with CTA approval (CTA-060139), confirming suitability for on-road trailer use.

IP67 Waterproof and Dustproof Rating: The IP67 rating provides full dust protection and waterproof protection against temporary immersion, suited to exposed trailer mounting locations in all weather conditions.

Low-Profile Design: The low-profile 22mm depth minimises protrusion from the trailer body surface, providing a compact and practical installation solution for budget trailers and caravans.

8 LEDs for Stop, Tail, and Indicator Functions: Eight LEDs provide the illumination required for stop, tail, and indicator functions, delivering reliable visibility for following traffic on road and in trailer applications.

40cm Pre-Wired Cable: The 40cm pre-wired cable allows direct connection to the trailer wiring harness without requiring additional cable extension in most standard trailer wiring configurations.

12V Only: The 101BAR is designed for 12V DC trailer and vehicle electrical systems only.

5-Year Warranty: The 101BAR is backed by a 5-year LED Autolamps warranty.

Technical Specs

Specification Detail
SKU 101BAR
Brand LED Autolamps
Function Stop, Tail, Indicator, Reflector
Light Type LED
LED Quantity 8
Input Voltage 12V DC
Current Draw - Stop 0.13A at 13.8V
Current Draw - Tail 0.04A at 13.8V
Current Draw - Indicator 0.12A at 13.8V
Dimensions 100mm x 100mm x 22mm
Mount Surface Mount
Cable Length 40cm
IP Rating IP67
ECE Stop/Tail Approval R1-S1-E9-02.6444
ECE Indicator Approval 2a-E9-01.6444
ECE Reflector Approval 1A-E9-02.6444
CTA Approval CTA-060139
Packaging Bulk Boxed
Weight 0.16kg
Warranty 5 Years

Compatible With

The 101BAR is compatible with 12V DC trailer and vehicle electrical systems only. ECE and CTA road approved for on-road trailer use in Australia. Confirm mounting dimensions and wiring requirements for your specific trailer before purchase. A twin blister pack version is available as the 101BAR2.

Frequently Asked Questions

Is the 101BAR ADR or ECE approved for on-road use?

The 101BAR holds ECE road approval with individual compliance numbers for stop/tail (R1-S1-E9-02.6444), indicator (2a-E9-01.6444), and reflector (1A-E9-02.6444) functions, along with CTA approval (CTA-060139), confirming suitability for on-road trailer use in Australia.

Is the 101BAR compatible with 24V systems?

No. The 101BAR is designed for 12V DC systems only. Confirm your trailer's operating voltage before purchase.

What is the difference between the 101BAR and the 101BAR2?

Both are the same lamp. The 101BAR is supplied in bulk boxed packaging, while the 101BAR2 is supplied in a twin blister pack for retail display. The lamp specifications are identical.

How long is the pre-wired cable on the 101BAR?

The 101BAR is supplied with a 40cm pre-wired cable for connection to the trailer wiring harness.

Does the 101BAR include a reflector?

Yes. The 101BAR includes an integrated reflector function alongside stop, tail, and indicator functions, with ECE reflector approval (1A-E9-02.6444).
