Product features

24V Slimline Interior Strip Light 121 SMD LEDs, 6500K Cool White, 600mm, IP67.

Product Overview

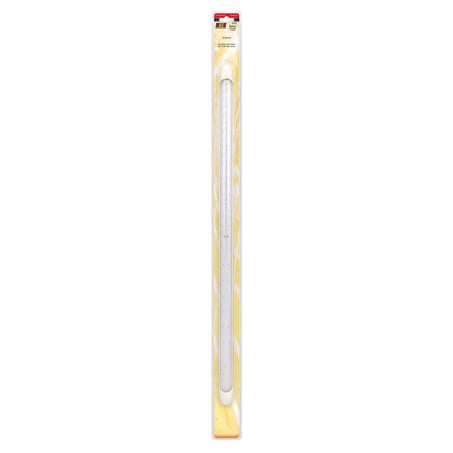

The LED Autolamps 10121/24 is a 24V slimline interior LED strip lamp designed for use in trucks, buses, vans, trailers, and 24V commercial vehicle applications. At 600mm long with a slim 25mm width and just 10mm deep, this lamp packs 121 SMD LEDs into a low-profile strip format delivering high-brightness cool white illumination across a 120-degree spread for effective interior coverage.

The 6500K cool white colour temperature produces a crisp, bright daylight-style output suited to driver cabs, storage areas, and general interior lighting in 24V commercial vehicles. Note that this is the direct-feed version without an inbuilt switch a switched circuit or separate switch is required for on/off control. IP67 rated for both interior and exterior use, the 10121/24 is a reliable, long-lasting 24V interior lighting solution backed by a 3-year warranty. For the switch version, refer to the 10121/24SW.

Key Specifications

  • LED count: 121 SMD LEDs
  • Colour temperature: 6500K (cool white)
  • Light spread: 120-degree
  • Dimensions: 600mm x 25mm x 10mm
  • Switch: Not included direct feed (switched circuit required)
  • Mount type: Surface mount remove end bezels, screw fix
  • IP rating: IP67 (interior or exterior use)
  • Input voltage: 24V only
  • Current draw: Approx. 0.31A @ 28V
  • Warranty: 3 years
  • Brand: LED Autolamps
  • SKU: 10121/24

Features & Benefits

  • 121 SMD LEDs: High LED count in a 600mm strip delivers impressive high-brightness cool white illumination for effective interior coverage across driver cabs, cargo areas, and utility vehicle interiors
  • 6500K cool white: Crisp daylight-style colour temperature ideal for task lighting, driver cab illumination, and general interior lighting in 24V commercial vehicles
  • 120-degree light spread: Wide angle illumination provides broad, even coverage across the interior area below the lamp
  • Ultra-slim 10mm profile: At just 10mm deep, the 10121/24 installs flush against headliners, walls, and surfaces without protruding into usable space
  • IP67 rated: Suitable for both interior and exterior use fully protected against dust ingress and temporary water immersion
  • Surface mount with end bezels: End bezels remove for concealed screw mounting, then refit for a clean, finished appearance with no visible fasteners
  • 24V only: Designed for 24V commercial vehicle electrical systems including trucks, buses, trailers, and refrigerated van bodies
  • Low current draw: Approximately 0.31A at 28V, placing minimal load on the vehicle's 24V electrical system
  • 3-year warranty: Backed by LED Autolamps' 3-year product warranty

Technical Specs

Specification Detail
SKU 10121/24
Brand LED Autolamps
LED Count 121 SMD LEDs
Colour Temperature 6500K (cool white)
Light Spread 120-degree
Dimensions 600mm x 25mm x 10mm
Switch Not included direct feed
Mount Type Surface mount end bezel removal, screw fix
IP Rating IP67
Input Voltage 24V only
Current Draw Approx. 0.31A @ 28V
Warranty 3 Years

Compatible With

Universal suits all 24V commercial vehicles and applications requiring interior or exterior strip lighting including:

  • Truck and bus driver cabs and sleeper compartments
  • Refrigerated trailer and van body interiors
  • Commercial van and utility vehicle interiors
  • 24V marine and boat interior lighting
  • Toolboxes, canopies, and storage areas on 24V vehicles

Related Products:

  • LED Autolamps 10121/24SW same lamp with inbuilt push button switch (24V)
  • LED Autolamps 10121/12 same lamp in 12V version (without switch)
  • LED Autolamps 10121/12SW same lamp in 12V version with switch

Frequently Asked Questions

Does this lamp include a switch?

No the 10121/24 is the direct-feed version without an inbuilt switch. A switched circuit or external switch must be provided for on/off control. For the version with an inbuilt push button switch, refer to the LED Autolamps 10121/24SW.

What colour temperature is this lamp?

The 10121/24 is 6500K a cool white, daylight-style colour temperature that produces a bright, crisp light output suited to task and driver cab lighting in 24V commercial vehicles.

Is this lamp compatible with 12V vehicles?

No the 10121/24 is 24V only. For 12V applications, refer to the LED Autolamps 10121/12 (without switch) or 10121/12SW (with switch).

Is this lamp suitable for exterior use?

Yes the IP67 rating makes the 10121/24 suitable for both interior and exterior applications, including installation in areas exposed to rain, moisture, or wash-down conditions.

How is this lamp mounted?

Remove the end bezels, surface mount using two screw points through the exposed mounting holes, run wires through the mounting surface, then refit the bezels for a clean finished appearance.
