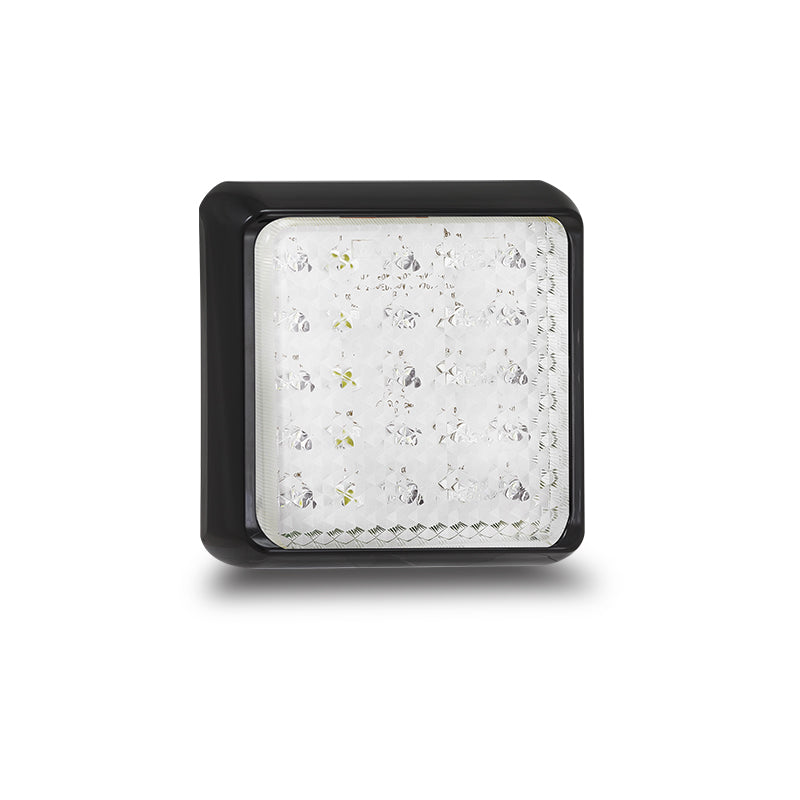

LED Autolamps 100WM 12/24V Reversing Lamp With 25 White LEDs With Bracket and 30cm Wire
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 100WM 12/24V Reversing Lamp With 25 White LEDs With Bracket and 30cm Wire

SKU: 100WM
Price
$175
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR Approved 25 LED Square Reversing Lamp with Clip-In Lens Bracket and 30cm Wire Included

Product Overview

The LED Autolamps 100WM is a 12/24V square reversing lamp fitted with 25 white LEDs, supplied with a surface mount bracket and 30cm pre-wired lead. Part of the proven 100 series, it shares the same form factor as the 100AM indicator and 100RM stop/tail lamps for a fully matched square rear lighting set.

The clip-in replaceable lens allows for quick lens swaps without replacing the full housing, and the modular mounting system integrates cleanly with other 100 series lamps. ADR approved under CRN35793 and rated IP67, backed by a 5-year warranty.

Features & Benefits

  • 25 white LEDs — delivers bright, clear white reverse output for strong visibility when reversing
  • Original square series design — matches the 100AM and 100RM in form factor for a uniform full-function rear lighting set
  • Clip-in replaceable lens — lens swaps independently from the housing, reducing replacement costs and minimising downtime
  • ADR road approved — certified under CRN35793 for legal on-road use as a reversing lamp in Australia
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 12/24V multi-voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
  • Bracket and 30cm pre-wired lead included — ready to mount and connect straight out of the pack
  • Modular mount — integrates with the 100 series modular mounting system
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 100WM
Lamp Type Reversing
LED Quantity 25 white
Voltage Range 12V / 24V
Cable Length 300mm
Mounting Modular surface mount (bracket included)
Lens Clip-in replaceable
Protection Rating IP67
Compliance ADR — CRN35793
Warranty 5 years

Compatible With / Goes Well With

  • Trailers, caravans, trucks, and tray body applications requiring a square reversing lamp
  • 12V light vehicles and 24V heavy transport applications
  • Trailer builds requiring ADR-approved reversing lighting
  • LED Autolamps 100AM indicator lamp (same 100 series form factor)
  • LED Autolamps 100RM stop/tail lamp (same 100 series form factor)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 100WM approved for road use in Australia?

Yes. The 100WM is ADR approved under CRN35793, meeting Australian Design Rules requirements for legal on-road use as a reversing lamp.

How does the 100WM fit with other 100 series lamps?

The 100WM shares the same square form factor as the 100AM indicator and 100RM stop/tail lamps, completing the 100 series for a fully matched rear lighting set across all three functions.

What does the clip-in replaceable lens mean for maintenance?

The lens clips out independently from the housing and can be replaced without swapping the entire lamp unit — saving cost and reducing installation time in the field.

What is the IP rating on the 100WM?

The 100WM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

What warranty does the 100WM carry?

The 100WM is backed by a 5-year warranty from LED Autolamps.
