Product features

ADR Approved 49 LED Square Stop/Tail Lamp with Clip-In Replaceable Lens and 5-Year Warranty

Product Overview

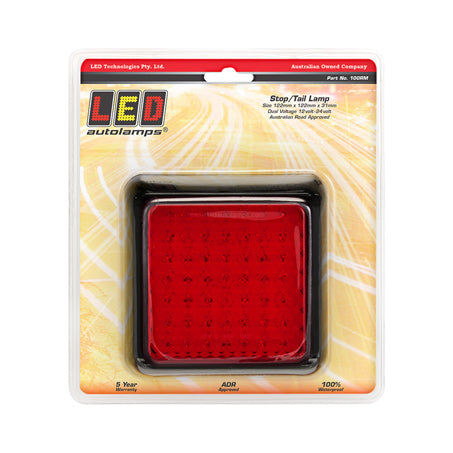

The LED Autolamps 100RM is a compact 12/24V square stop/tail lamp fitted with 49 LEDs, supplied with a surface mount bracket and 30cm wire. The classic square 100 series design measures 122mm x 122mm x 31mm, making it a versatile fit for trailers, trucks, caravans, and tray body applications where a reliable, road-legal stop/tail lamp is needed.

The clip-in replaceable lens allows for quick lens swaps without replacing the full unit, keeping maintenance simple and cost-effective. ADR road approved and rated IP67, the 100RM is backed by a 5-year warranty a strong indicator of the build quality LED Autolamps brings to this proven series.

Features & Benefits

  • 49 LEDs — high LED count delivers bright, consistent stop and tail output for strong rear visibility across all conditions
  • Original square series design — the proven 100 series form factor suits trailers, caravans, trucks, and tray bodies with a clean, low-profile footprint
  • Clip-in replaceable lens — lens swaps independently from the housing, reducing replacement costs and keeping downtime minimal when a lens is damaged
  • ADR road approved — meets Australian Design Rules for legal on-road use across Australia
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 12/24V multi-voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
  • Bracket and 30cm wire included — ready to mount straight out of the pack
  • 5-year warranty — backed by LED Autolamps' full warranty programme for confidence in the long-term

Technical Specs

Specification Detail
SKU 100RM
Lamp Type Stop / Tail
LED Quantity 49
Voltage Range 12V / 24V
Dimensions 122mm x 122mm x 31mm
Cable Length 300mm
Protection Rating IP67
Approval ADR
Lens Clip-in replaceable
Mounting Surface mount bracket (included)
Warranty 5 years

Compatible With / Goes Well With

  • Trailers, caravans, trucks, and tray body applications
  • 12V light vehicles and 24V heavy transport applications
  • Trailer builds requiring ADR-approved stop/tail lighting
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 100RM approved for road use in Australia?

Yes. The LED Autolamps 100RM is ADR road approved, meeting Australian Design Rules requirements for legal on-road use across Australia.

What does the clip-in replaceable lens mean for maintenance?

The lens clips out independently from the housing, so it can be replaced without swapping the entire lamp unit — saving cost and reducing installation time in the field.

What is the IP rating on the 100RM?

The 100RM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer, caravan, and truck body mounting.

Does the 100RM come with a bracket and wiring?

Yes. The 100RM is supplied with a surface mount bracket and a 30cm wire, making it ready to install straight out of the pack.

What warranty does the 100RM carry?

The 100RM is backed by a 5-year warranty from LED Autolamps, reflecting the quality and durability of the 100 series design.
