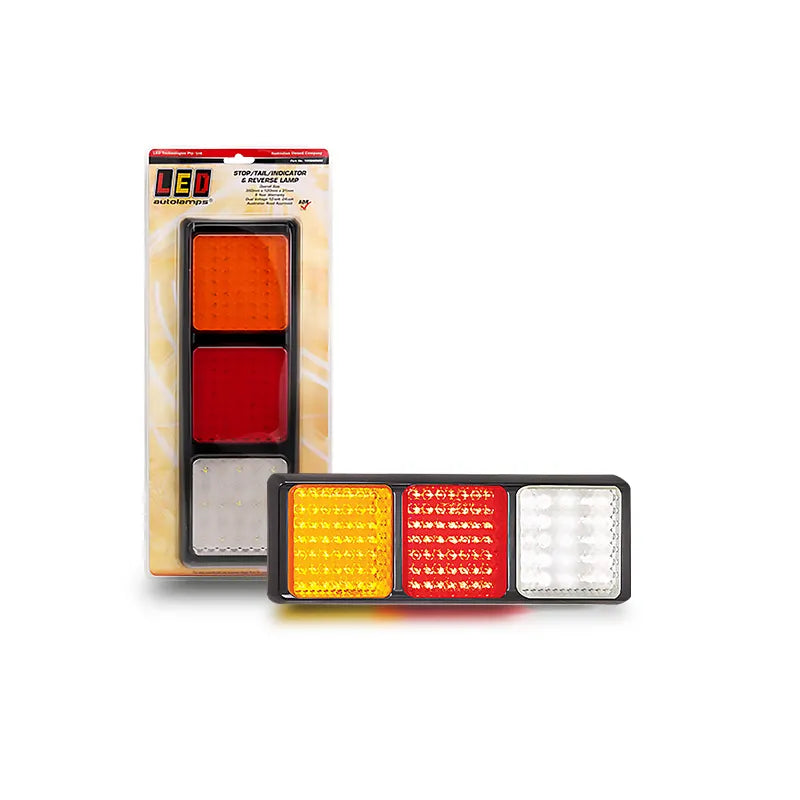

LED Autolamps 100BARWM 12/24V Stop/Tail/Indicator/Reverse Assembly With 123 LEDs
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 100BARWM 12/24V Stop/Tail/Indicator/Reverse Assembly With 123 LEDs

SKU: 100BARWM
Price
$339
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR Approved 123 LED Rear Combination Assembly with Individual Lens Replacement and 5-Year Warranty

Product Overview

The LED Autolamps 100BARWM is a 12/24V rear combination lamp assembly packing 123 LEDs across stop, tail, indicator, and reverse functions in a single surface-mount unit. At 350mm x 120mm x 31mm with a 290mm centre-to-centre mount, it's built for trailers, trucks, and tray bodies that need a full-function rear lighting solution in a clean, low-profile bar format.

Individual lens replacements are available, meaning each lens section can be swapped out independently without replacing the entire assembly a practical advantage for minimising downtime and replacement costs in the field. Pre-wired with a black housing, ADR approved via CTA060221, and rated IP67, the 100BARWM is backed by a 5-year warranty and engineered for reliable long-term service.

Features & Benefits

  • 123 LEDs across four functions — high LED count delivers strong, consistent output across stop, tail, indicator, and reverse for maximum rear visibility
  • Individual lens replacements — each lens section can be replaced independently, reducing maintenance costs and avoiding full assembly replacement for a single damaged lens
  • ADR approved — manufacturer approval CTA060221; stop/tail CRN33402, indicator CRN33156 — compliant for road-legal use across Australia
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 12/24V multi-voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
  • 350mm x 120mm bar format — wide, low-profile assembly suits the rear panels of trailers, tray bodies, and trucks
  • Pre-wired, surface mount — 290mm centre-to-centre spacing; ready to connect and mount straight out of the pack
  • Black housing — professional finish suits a wide range of trailer and truck body aesthetics
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 100BARWM
Lamp Type Stop / Tail / Indicator / Reverse
LED Quantity 123
Voltage Range 12V – 24V
Dimensions 350mm x 120mm x 31mm
Mount Centre-to-Centre 290mm
Stop Current Draw 0.38A @ 13.8V
Tail Current Draw 0.04A @ 13.8V
Indicator Current Draw 0.38A @ 13.8V
Mounting Surface mount
Connector Pre-wired
Housing Colour Black
Protection Rating IP67
Stop/Tail Compliance ADR — CRN33402
Indicator Compliance ADR — CRN33156
Manufacturer Approval ADR — CTA060221
Warranty 5 years
Weight 0.72 kg

Compatible With / Goes Well With

  • Trailers, tray bodies, trucks, and light commercial vehicles
  • 12V light vehicles and 24V heavy transport applications
  • Trailer builds requiring ADR-approved full-function rear combination lighting
  • LED Autolamps individual replacement lenses for the 100 series
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

What functions does the 100BARWM cover?

It combines stop, tail, indicator, and reverse into a single assembly, providing a complete rear lighting solution for trailers, trucks, and tray bodies.

What does individual lens replacement mean for maintenance?

Each lens section in the assembly can be replaced independently rather than replacing the entire unit — reducing costs and minimising downtime when a single lens is cracked or damaged.

What ADR approvals does the 100BARWM carry?

It holds manufacturer approval CTA060221, with stop/tail certified under CRN33402 and indicator under CRN33156, covering compliance for road-legal use in Australia.

What is the IP rating on the 100BARWM?

The 100BARWM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

Does the 100BARWM work on both 12V and 24V systems?

Yes. It operates across 12V to 24V, making it compatible with light vehicles as well as 24V heavy transport applications without any modification.

Weight

0.72 kg
