LED Autolamps 100BAR2 12V LED Stop/Tail/Indicator Light Reflector Twin Blister
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 100BAR2 12V LED Stop/Tail/Indicator Light Reflector Twin Blister

SKU: 100BAR2
Price
$143
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

12V ADR Approved Stop/Tail/Indicator LED Twin Pack Fully Submersible with Tinned Copper Wiring

Product Overview

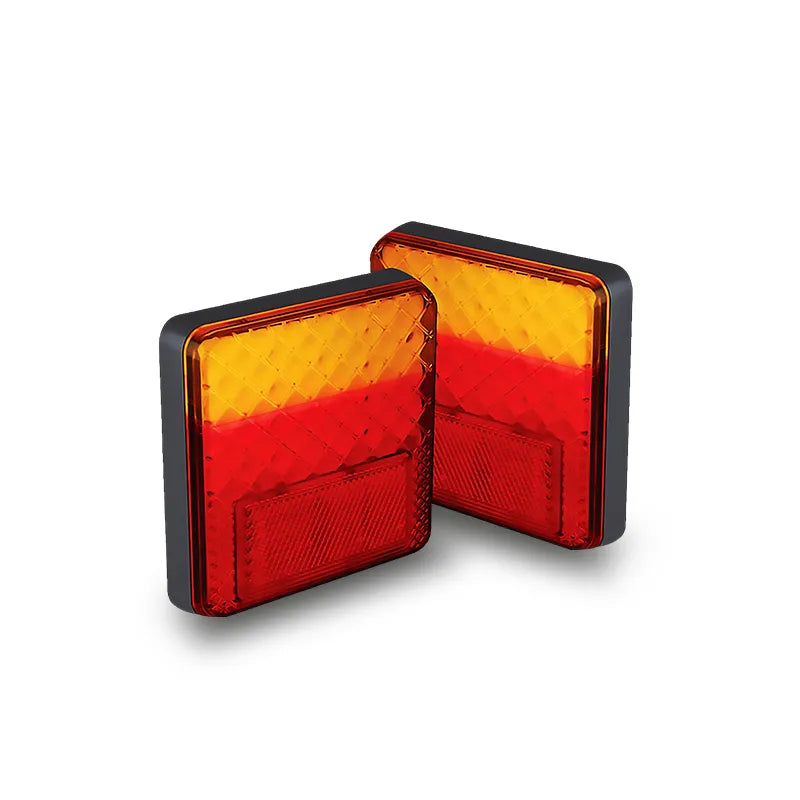

The LED Autolamps 100BAR2 is a twin blister pack of 12V stop, tail, and indicator lamps with built-in reflex reflectors, based on the proven 100 series square form factor. Measuring 100mm x 100mm x 22mm with a 70mm centre-to-centre surface mount, both lamps are supplied together for a complete left and right rear installation on trailers, caravans, and light vehicles.

Built with fully submersible, corrosion-protected tinned copper wiring, the 100BAR2 is engineered for longevity in harsh outdoor and marine-adjacent environments where moisture and corrosion are a constant concern. ADR approved across stop/tail, indicator, and reflector functions, and backed by a 5-year warranty, this twin pack delivers compliant, durable rear lighting straight out of the blister.

Features & Benefits

  • Twin blister pack — both lamps supplied together, ready for a complete left and right rear installation in a single purchase
  • Stop, tail, and indicator in one lamp — combines three rear lighting functions in a single compact unit, simplifying wiring and installation
  • Built-in reflex reflectors — passive reflective element integrated for additional compliance and rear visibility
  • Tinned copper wiring — corrosion-protected wiring resists rust and moisture ingress, extending the working life of the lamp in exposed environments
  • Fully submersible — engineered to withstand full water submersion, exceeding the demands of standard outdoor and transport installations
  • Diamond pattern lens — enhances LED output and delivers a sharp, premium finish on trailer and caravan bodies
  • ADR approved across all functions — stop/tail ADR 49/00, indicator ADR 6/00 Cat 2A, reflector ADR 47/00
  • IP67 rated — fully sealed against dust and water ingress
  • 12V only — designed specifically for 12V trailer and caravan electrical systems
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 100BAR2
Pack Contents 2 lamps
Lamp Type Stop / Tail / Indicator
Voltage 12V
Dimensions 100mm x 100mm x 22mm
Mount Centre-to-Centre 70mm
Stop Current Draw 0.13A @ 13.8V
Tail Current Draw 0.04A @ 13.8V
Indicator Current Draw 0.12A @ 13.8V
Mounting Surface mount
Connector Pre-wired
Wiring Tinned copper, corrosion protected
Housing Colour Black
Lens Diamond pattern
Protection Rating IP67
Stop/Tail Compliance ADR 49/00
Indicator Compliance ADR 6/00 Cat 2A
Reflector Compliance ADR 47/00
Packaging Blister pack
Warranty 5 years
Weight 0.2 kg

Compatible With / Goes Well With

  • 12V trailers, caravans, and light vehicles
  • Trailer builds requiring ADR-approved stop/tail/indicator lighting
  • LED Autolamps 100AM indicator lamp and 100RM stop/tail lamp (same 100 series form factor)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

What is included in the 100BAR2 twin blister pack?

The pack contains two lamps, providing a complete left and right rear lighting solution ready for installation in a single purchase.

What makes the tinned copper wiring different from standard wiring?

Tinned copper wiring is coated to resist corrosion and rust, making it significantly more durable than bare copper in wet, salty, or exposed environments — a practical advantage for trailer and caravan applications.

What ADR approvals does the 100BAR2 carry?

The 100BAR2 is approved under ADR 49/00 for stop/tail, ADR 6/00 Category 2A for indicator, and ADR 47/00 for the reflector — covering all three functions for road-legal use in Australia.

What is the IP rating on the 100BAR2?

The 100BAR2 is rated IP67 and specified as fully submersible, meaning it is sealed against dust and capable of withstanding water immersion in exposed trailer and caravan installations.

What warranty does the 100BAR2 carry?

The 100BAR2 is backed by a 5-year warranty from LED Autolamps, reflecting the quality and durability built into the 100 series design.

Weight

0.2 kg
