LED Autolamps 100BAR 12V Stop/Tail/Indicator Lamp With Reflex Reflector
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 100BAR 12V Stop/Tail/Indicator Lamp With Reflex Reflector

SKU: 100BAR
Price
$80
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

12V ADR Approved Stop/Tail/Indicator LED Lamp with Diamond Lens and Built-In Reflex Reflector

Product Overview

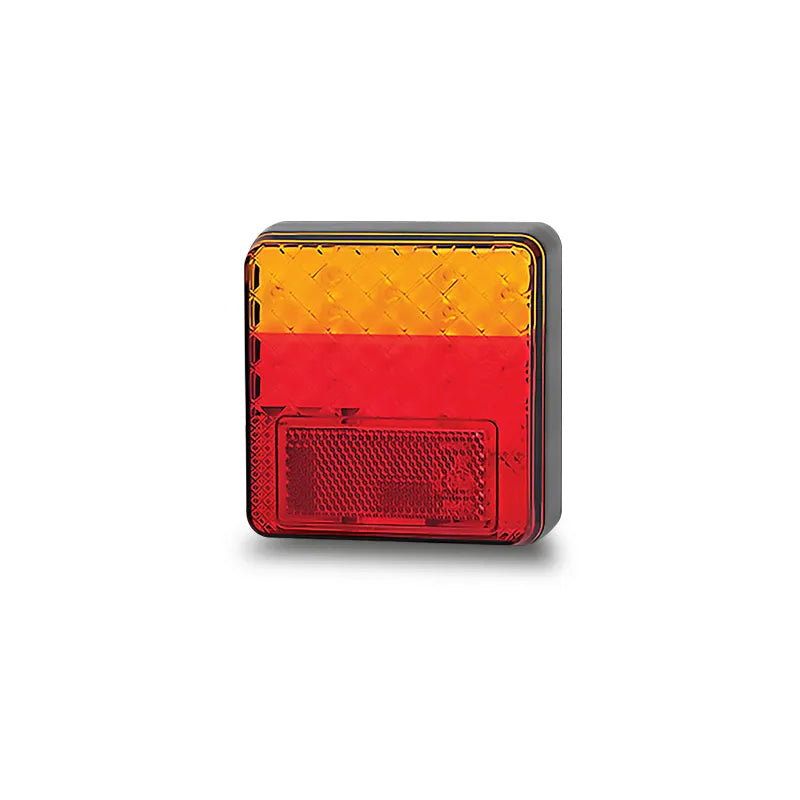

The LED Autolamps 100BAR is a 12V stop, tail, and indicator lamp with built-in reflex reflectors, built around the compact 100 series square form factor. Measuring 100mm x 100mm x 22mm with a 70mm centre-to-centre surface mount, it suits trailers, caravans, and light vehicles where a clean, low-profile rear combination lamp is required.

The diamond lens pattern enhances LED output while giving the lamp a sharp, premium finish. Pre-wired and ADR approved with individual CRN certifications across stop/tail, indicator, and reflector functions, the 100BAR is a fully compliant, ready-to-install lamp backed by a 5-year warranty.

Features & Benefits

  • Stop, tail, and indicator in one lamp — combines three rear lighting functions in a single compact unit, simplifying wiring and installation
  • Built-in reflex reflectors — passive reflective element integrated into the lamp for additional compliance and rear visibility
  • Diamond pattern lens — enhances LED output and delivers a premium appearance on trailer and caravan bodies
  • Low-profile design — 22mm depth sits flush for a clean, integrated finish on trailer panels
  • ADR approved across all functions — individually certified: stop/tail CRN37986, indicator CRN37985, reflector CRN38102
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • Pre-wired, surface mount — ready to install straight out of the pack with 70mm centre-to-centre bracket spacing
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 100BAR
Lamp Type Stop / Tail / Indicator
Voltage 12V
Dimensions 100mm x 100mm x 22mm
Mount Centre-to-Centre 70mm
Stop Current Draw 0.13A @ 13.8V
Tail Current Draw 0.04A @ 13.8V
Indicator Current Draw 0.12A @ 13.8V
Mounting Surface mount
Connector Pre-wired
Lens Diamond pattern
Protection Rating IP67
Stop/Tail Compliance ADR — CRN37986
Indicator Compliance ADR — CRN37985
Reflector Compliance ADR — CRN38102
Warranty 5 years
Weight 0.2 kg

Compatible With / Goes Well With

  • 12V trailers, caravans, and light vehicles
  • Trailer builds requiring ADR-approved stop/tail/indicator lighting
  • LED Autolamps 100AM indicator lamp and 100RM stop/tail lamp (same 100 series form factor)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 100BAR approved for road use in Australia?

Yes. The 100BAR holds individual ADR certifications across all three functions — stop/tail (CRN37986), indicator (CRN37985), and reflector (CRN38102) — meeting Australian Design Rules for legal on-road use.

What functions does the 100BAR cover?

It combines stop, tail, and indicator functions with built-in reflex reflectors, delivering a complete rear lighting solution for trailers and caravans in a single compact lamp.

What is the IP rating on the 100BAR?

The 100BAR is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and caravan mounting.

What is the centre-to-centre mounting distance?

The 100BAR has a 70mm centre-to-centre mount spacing. Confirm this measurement against your panel or bracket before installation.

What warranty does the 100BAR carry?

The 100BAR is backed by a 5-year warranty from LED Autolamps, reflecting the quality and durability of the 100 series design.

Weight

0.2 kg
