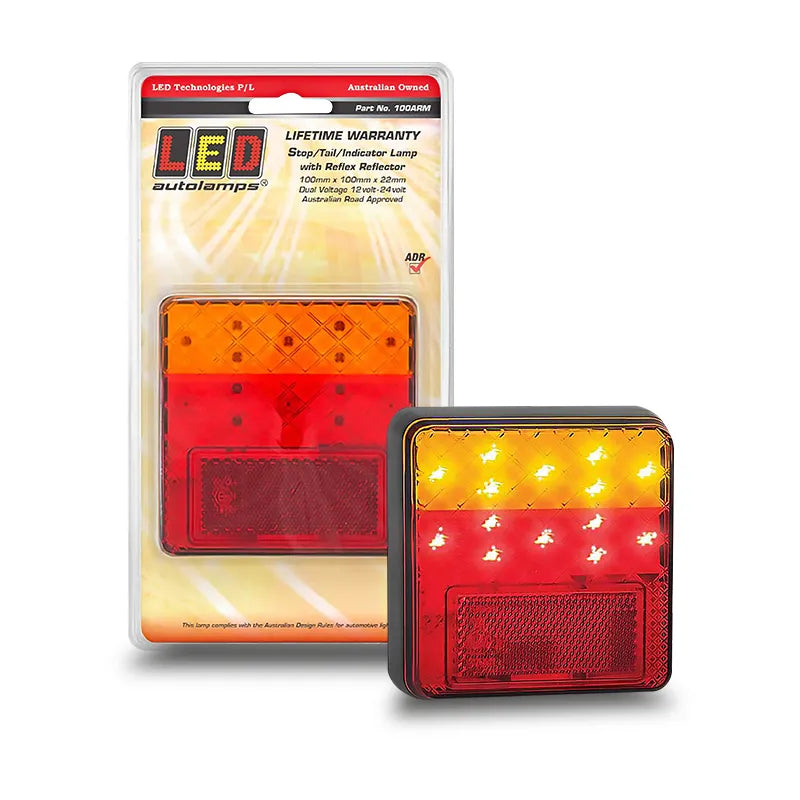

LED Autolamps 100ARM Multi Volt Stop/Tail/Indicator Lamp With Reflex Reflectors Grey Base Blister
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 100ARM Multi Volt Stop/Tail/Indicator Lamp With Reflex Reflectors Grey Base Blister

SKU: 100ARM
Price
$68
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR Approved 3-in-1 LED Trailer Lamp with Diamond Lens and Built-In Reflex Reflectors 5-Year Warranty

Product Overview

The LED Autolamps 100ARM is a multi-voltage stop, tail, and indicator lamp built around the compact 100 series square form factor, combining all three functions with built-in reflex reflectors in a single low-profile unit. Measuring 100mm x 100mm x 22mm with a 70mm centre-to-centre mount, it's designed for surface mounting on trailers, caravans, and light commercial vehicles.

The diamond pattern lens adds a premium finish while enhancing light output, and the grey base suits a wide range of trailer body finishes. Pre-wired and ADR approved across all three functions with individual CRN certifications for stop/tail, indicator, and reflector the 100ARM is a thoroughly compliant, ready-to-install trailer lamp backed by a 5-year warranty.

Features & Benefits

  • Stop, tail, and indicator in one lamp — combines three rear lighting functions in a single compact unit, reducing wiring complexity and installation time
  • Built-in reflex reflectors — passive reflective element integrated into the lamp for additional rear visibility compliance
  • Diamond pattern lens — enhances LED output and gives the lamp a premium appearance on trailer and caravan bodies
  • Low profile design — 22mm depth keeps the lamp sitting flush for a clean, integrated finish
  • ADR approved across all functions — individually certified: stop/tail CRN37986, indicator CRN37985, reflector CRN38102
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 12–24V multi-voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
  • Pre-wired, surface mount — ready to install straight out of the pack with 70mm centre-to-centre bracket spacing
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 100ARM
Lamp Type Stop / Tail / Indicator
Voltage Range 12V – 24V
Dimensions 100mm x 100mm x 22mm
Mount Centre-to-Centre 70mm
Stop Current Draw 0.13A @ 13.8V
Tail Current Draw 0.04A @ 13.8V
Indicator Current Draw 0.12A @ 13.8V
Mounting Surface mount
Connector Pre-wired
Base Colour Grey
Lens Diamond pattern
Protection Rating IP67
Stop/Tail Compliance ADR — CRN37986
Indicator Compliance ADR — CRN37985
Reflector Compliance ADR — CRN38102
Warranty 5 years
Weight 0.2 kg

Compatible With / Goes Well With

  • Trailers, caravans, and light commercial vehicles
  • 12V light vehicles and 24V heavy transport applications
  • Trailer builds requiring ADR-approved stop/tail/indicator lighting
  • LED Autolamps 100AM indicator lamp and 100RM stop/tail lamp (same 100 series form factor)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 100ARM approved for road use in Australia?

Yes. The 100ARM holds individual ADR certifications across all three functions — stop/tail (CRN37986), indicator (CRN37985), and reflector (CRN38102) — meeting Australian Design Rules for legal on-road use.

What functions does the 100ARM cover?

It combines stop, tail, and indicator functions along with built-in reflex reflectors, making it a complete rear lighting solution for trailers and caravans in a single lamp.

What is the IP rating on the 100ARM?

The 100ARM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and caravan mounting.

What is the centre-to-centre mounting distance?

The 100ARM has a 70mm centre-to-centre mount spacing. Confirm this measurement against your panel or bracket before installation.

What warranty does the 100ARM carry?

The 100ARM is backed by a 5-year warranty from LED Autolamps, reflecting the quality and durability of the premium 100 series design.

Weight

0.2 kg
