Product features

ADR 6/00 Approved 49 LED Square Indicator Lamp with Clip-In Replaceable Lens

Product Overview

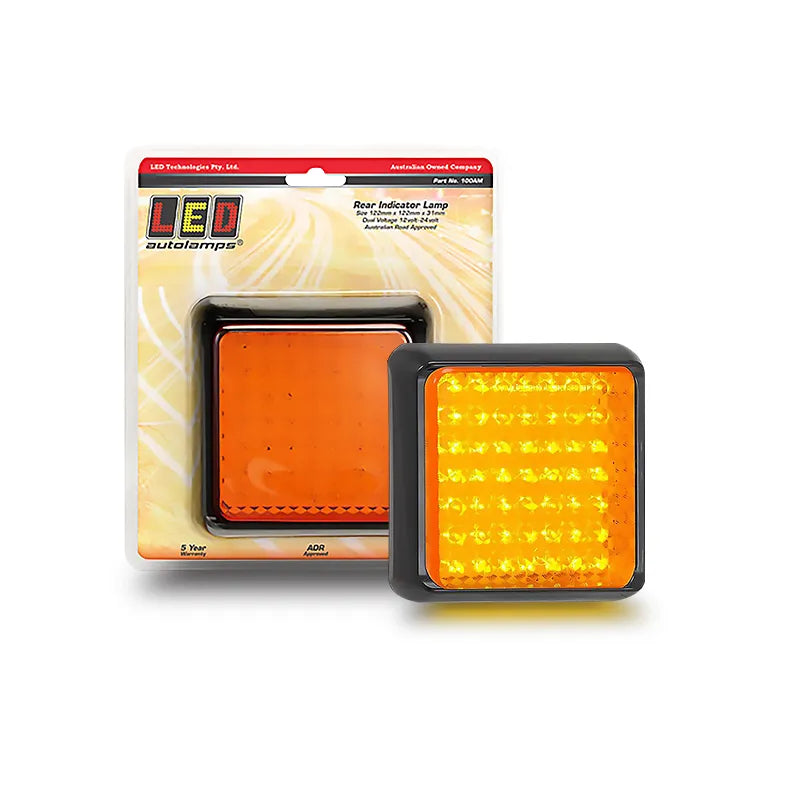

The LED Autolamps 100AM is a 12/24V square rear indicator lamp fitted with 49 LEDs, supplied with a surface mount bracket and pre-wired connector. Part of the proven 100 series, it measures 122mm x 122mm x 31mm with a 70mm centre-to-centre mount spacing a straightforward fit for trailers, trucks, caravans, and tray body applications requiring a reliable, road-legal indicator lamp.

The clip-in replaceable lens allows for quick lens swaps without replacing the full housing, keeping maintenance cost-effective in the field. Compliant with ADR 6/00 Category 2A (CRN33156) and rated IP67, the 100AM is a well-specified, dependable indicator lamp backed by LED Autolamps' track record in Australian transport lighting.

Features & Benefits

  • 49 LEDs — high LED count delivers bright, consistent amber indicator output for strong rear visibility across all conditions
  • Original square series design — the proven 100 series form factor suits trailers, caravans, trucks, and tray bodies with a clean, compact footprint
  • Clip-in replaceable lens — lens swaps independently from the housing, reducing replacement costs and minimising downtime when a lens is damaged
  • ADR 6/00 Category 2A compliant — meets Australian Design Rules for rear indicator lamps; CRN33156 certified for road-legal use across Australia
  • IP67 rated — fully sealed against dust and water immersion, built for exposed outdoor and transport environments
  • 12/24V multi-voltage — compatible with both 12V light vehicles and 24V heavy transport without modification
  • Pre-wired connector — ready to connect straight out of the pack
  • Surface mount bracket included — 70mm centre-to-centre mounting for straightforward installation on trailer and truck panels

Technical Specs

Specification Detail
SKU 100AM
Lamp Type Rear Indicator
LED Quantity 49
Voltage Range 12V / 24V
Dimensions 122mm x 122mm x 31mm
Mount Centre-to-Centre 70mm
Current Draw 0.38A @ 13.8V
Mounting Surface mount bracket (included)
Connector Pre-wired
Protection Rating IP67
Compliance ADR 6/00 Cat 2A — CRN33156
Lens Clip-in replaceable

Compatible With / Goes Well With

  • Trailers, caravans, trucks, and tray body applications
  • 12V light vehicles and 24V heavy transport applications
  • Trailer builds requiring ADR-approved rear indicator lighting
  • LED Autolamps 100RM stop/tail lamp (same 100 series form factor)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 100AM approved for road use in Australia?

Yes. The 100AM is compliant with ADR 6/00 Category 2A (CRN33156), meeting Australian Design Rules requirements for legal on-road use as a rear indicator lamp.

What does the clip-in replaceable lens mean for maintenance?

The lens clips out independently from the housing and can be replaced without swapping the entire lamp unit, saving cost and reducing installation time in the field.

What is the IP rating on the 100AM?

The 100AM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer, caravan, and truck body mounting.

What is the centre-to-centre mounting distance?

The 100AM has a 70mm centre-to-centre mount spacing, which should be confirmed against your panel or bracket before installation.

Does the 100AM work on both 12V and 24V systems?

Yes. It operates across 12V to 24V, making it compatible with light vehicles as well as 24V heavy transport applications without any modification.

Weight

Not provided.
