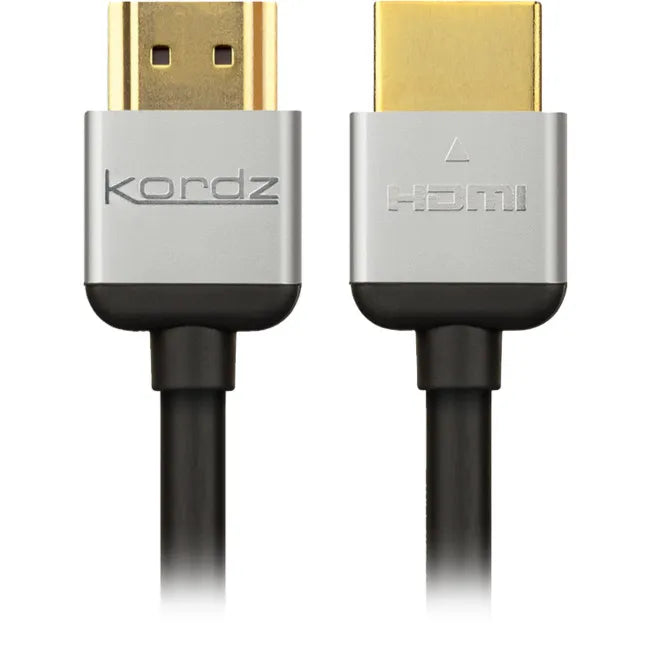

Kordz RP-R3HD0210 2.1M THX Certified HDMI Lead High Speed With Ethernet Kordz

Unrivalled Connectivity Never Replicated in The Market!

R.3 Series - R3HD0210 Passive HDMI Cable
The world’s most shielded HDMI cable that eliminates signal dropouts with an industry-leading success rate of 99.99%. Kordz R.3 is their most robust installation HDMI cable, designed for tight spaces and engineered for electrical signal preservation to protect critical HDMI signals amidst high electrical noise environments.

A unique combination of advanced features and materials delivers unrivalled installation performance and reliability. High-tech assembly and vacuum infra-red soldering minimise signal drop-outs, while nitrogen foam polyethylene insulation ensures the highest dielectric consistency for digital transmission.

With high flexibility and shallow operational depth, the Kordz R.3 HDMI Cable opens new installation design possibilities. Used in space missions, military and medical settings, and iconic international events, the Kordz R.3 HDMI Cable is a significant component for critical signals and engineered todeliver maximum commercial.

Features:

• Anti-fatigue, die-cast zinc alloy connectors tested to ≥1,000 cycles & 2kg retention force
• Double fully enclosed casings and unique copper wire annealing technique allows for twist rateresponsiveness while relieving device socket pressure
• 100% of units tested for zero Bit ErrorRate (BER) @ 340Mcsc, <0.05% in-field failure rate
• Available in a total of 14 precision rack fit lengths – 0.3m increments between 0.3m – 3.0m, 0.6m increments between 3.6m – 5.4m.
• High bandwidth solid OFC conductors andinduction soldered pin transitions for benchmark inter-terminal uniformity
• Halogen-free cable construction
• DPL certified 4K 18G-DC
• Kordz’ signature product performance

Specifications:

• HDMI CTS Certification: High Speed with Ethernet
• DPL Labs Certified Data Rate: 6.0Gbpsc, 17.82Gbps Aggregate (4K UHD)
• HDMI Clock: 27 - 340MHz
• Primary Conductors: Solid 32/28AWG OFC, Length Dependent
• Insulation On TMDS: Foamed PE/Polyolefin
• Insulation On 4C HEAC Pairs: Foamed PE/Polyolefin
• Shielding On TMDS Pairs: Al/Mylar
• Shielding Overall: Al/Mylar CU 90% Coverage Braid
• Cable Jacket: Halogen-Free TPE, Black 4.8mm
• HDMI Connector Shell: Anti-Fatigue Die Cast Zn Alloy, 1µ” 24K Gold Plated
• HDMI Connector Pins: Solid OFC, 15µ” 24K Gold Plated
• Termination: Contactless IR Induction Soldering
• HDMI Back Shell Al Anodised Front with Halogen-Free TPE Strain Relief
• Cable Diameter: 0.3m – 2.7m: 32 AWG, 4.8mm/0.19”Ø | 3.0m – 5.4m: 28 AWG, 6.5mm/0.22” Ø Mounting Depth: 0.3m – 2.7m: 32 AWG, 47.0mm/1.85”Ø | 3.0m – 5.4m: 28 AWG, 54.0mm/2.13”Ø
• Cable Bend Radius: 0.3m – 2.7m: 32 AWG, 20.0mm/0.79”Ø | 3.0m – 5.4m: 28 AWG, 27.0mm/1.06”Ø
• Retention Force: 20N (Approx. 2.0kg / 4.4lbs) 10/-5% (Nom)
