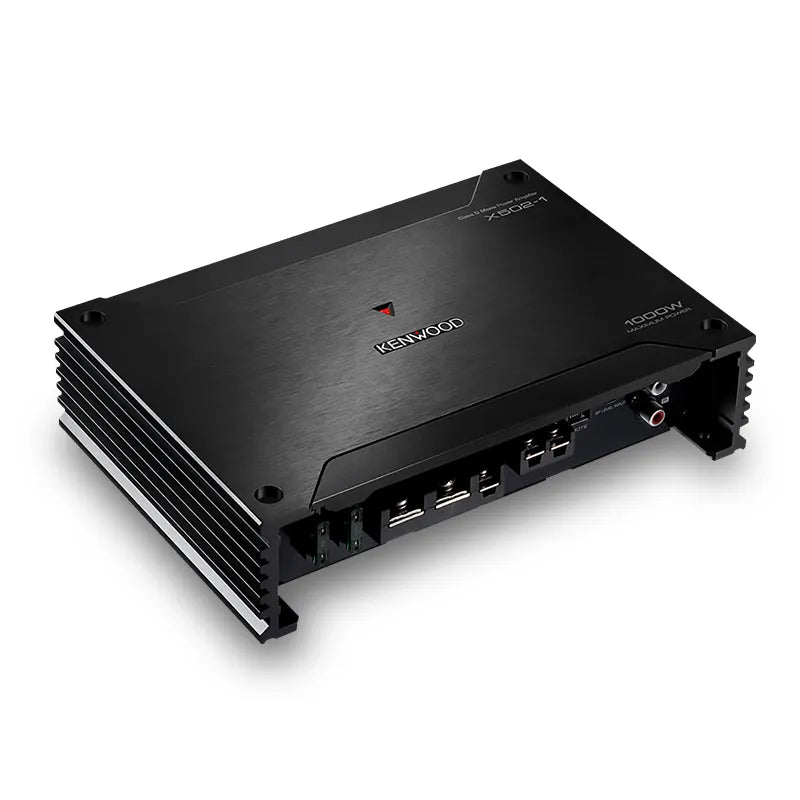

Kenwood X502-1 1000W X-Series Class-D Mono-Channel Power Amplifier
Click to open expanded view
KENWOOD logo

Out of stock

Kenwood X502-1 1000W X-Series Class-D Mono-Channel Power Amplifier

SKU: X5021
Regular price
$299
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Class D Technology Ensures that This Compact Amp Will Run Cool & Perform Reliably!

X-Series, Class D Mono-Channel Power Amplifier
Ultra-high grade range amplifiers and speakers that deliver high density realistic sound and a spatial sound impression. The new X-Series amplifiers are precisely designed for High-Resolution Audio to create a truly authentic listening experience with every detail and nuance.

Kenwood X502-1 Features:

  • Mono Channel Digital Power Amplifier
  • D-Class Amplifier
  • Compact Chassis
  • Built-In Low Pass Filter
  • Speaker Level Input
  • Signal Sensing Turn-On
  • Extruded Aluminum Heat Sink Design
  • 2 Ohms Load Capability
  • Screw-Type Terminals

Kenwood X502-1 Specifications:

  • Class D Amplifier: Yes
  • Full Range Digital Amplifier: Yes
  • Load Capability: 2Ω Stable
  • Rated Power Output (4Ω): 300W x 1 (4Ω)
  • Rated Power Output: 500W x 1 (2Ω)
  • CEA-2006 Compliant: Yes
  • Low-Pass Filter: Yes
  • Switched Mode Power supply: Yes, with Power MOS-FET
  • Single Side Terminals: Yes
  • Die-Cast Aluminium Heat Sink: Yes
  • Rated Power Output (4Ω, 14,4V): 300W x 1 (20Hz ~ 200Hz, 1%THD)
  • Rated Power Output (2Ω, 14,4V): 500W x 1 (100Hz, 1%THD)
  • Rated power Output (CEA-2006): 300Watts RMS x 1 at 4 Ohms & 1% THD
  • Low-Pass Filter: 50~200Hz (-24dB/oct)
  • Bass Boost Circuit: 40Hz, 18dB (B-Channel)
  • RCA Input Sensitivity: 0.2 ~ 5V
  • Input Impedance: 10kΩ
  • Signal To Noise Ratio:: 100dB
  • Signal To Noise Ratio (CEA-2006): 85dBa (Reference: 1 Watt Into 4 Ohms)
  • Frequency Response (+0dB, -1dB): 20Hz ~ 200Hz
  • Operating Voltage: 14.4V (11V ～ 16V Allowable)
  • Maximum Current Consumption: 25A
  • Installation Size (W x H x D): 213 x 53 x 149 (mm)
  • Weight: 1.5kg
