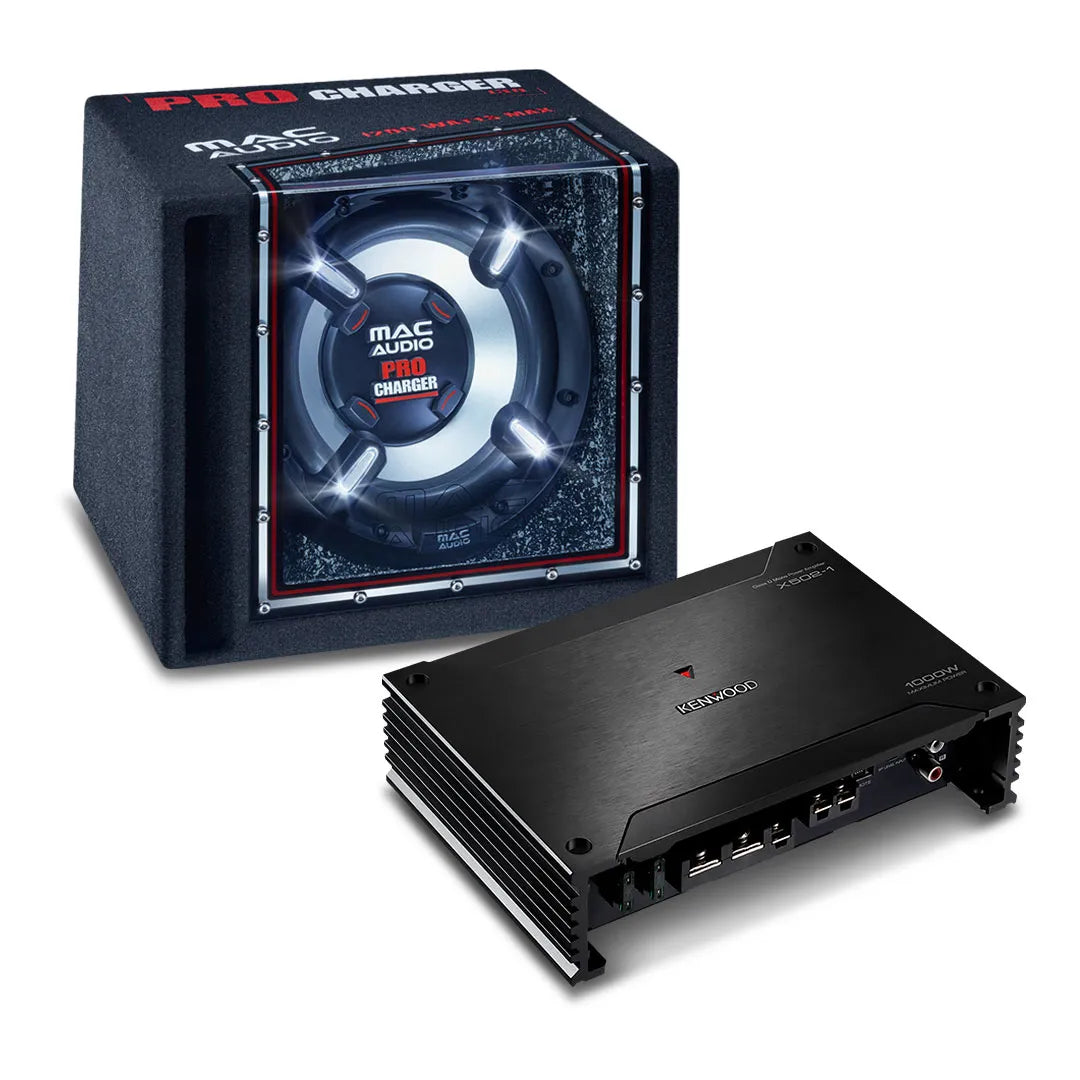

Kenwood X502-1 1000W X-Series Class-D Mono-Channel Power Amplifier and Mac Audio MC-PRO-CHA-130 Pro Charger 130 12" Bandpass-Type Subwoofer Enclosure Package

Kenwood 1000W Class-D Amp Meets Mac Audio Bandpass Sub, Precision, Power, and Price in One Package!

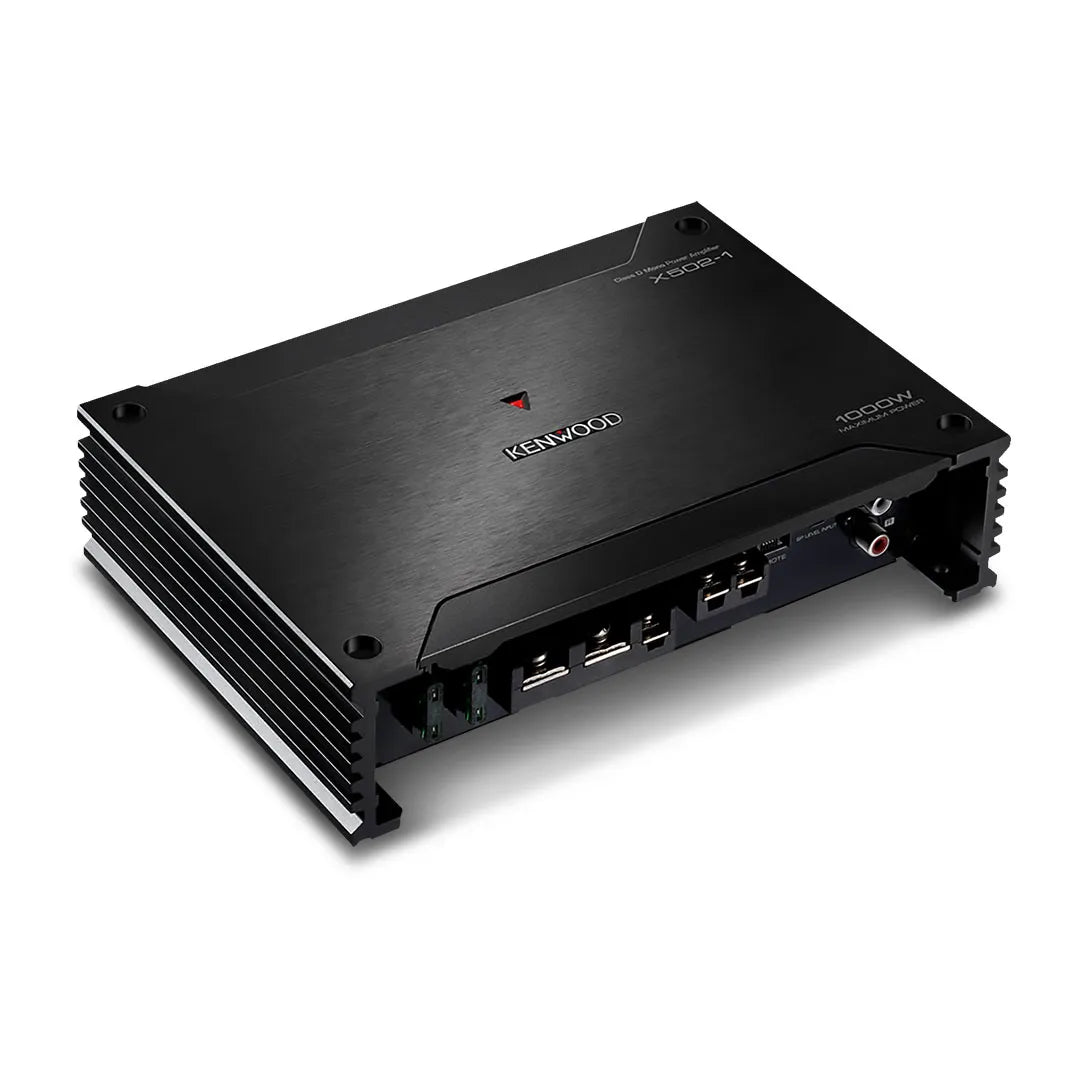

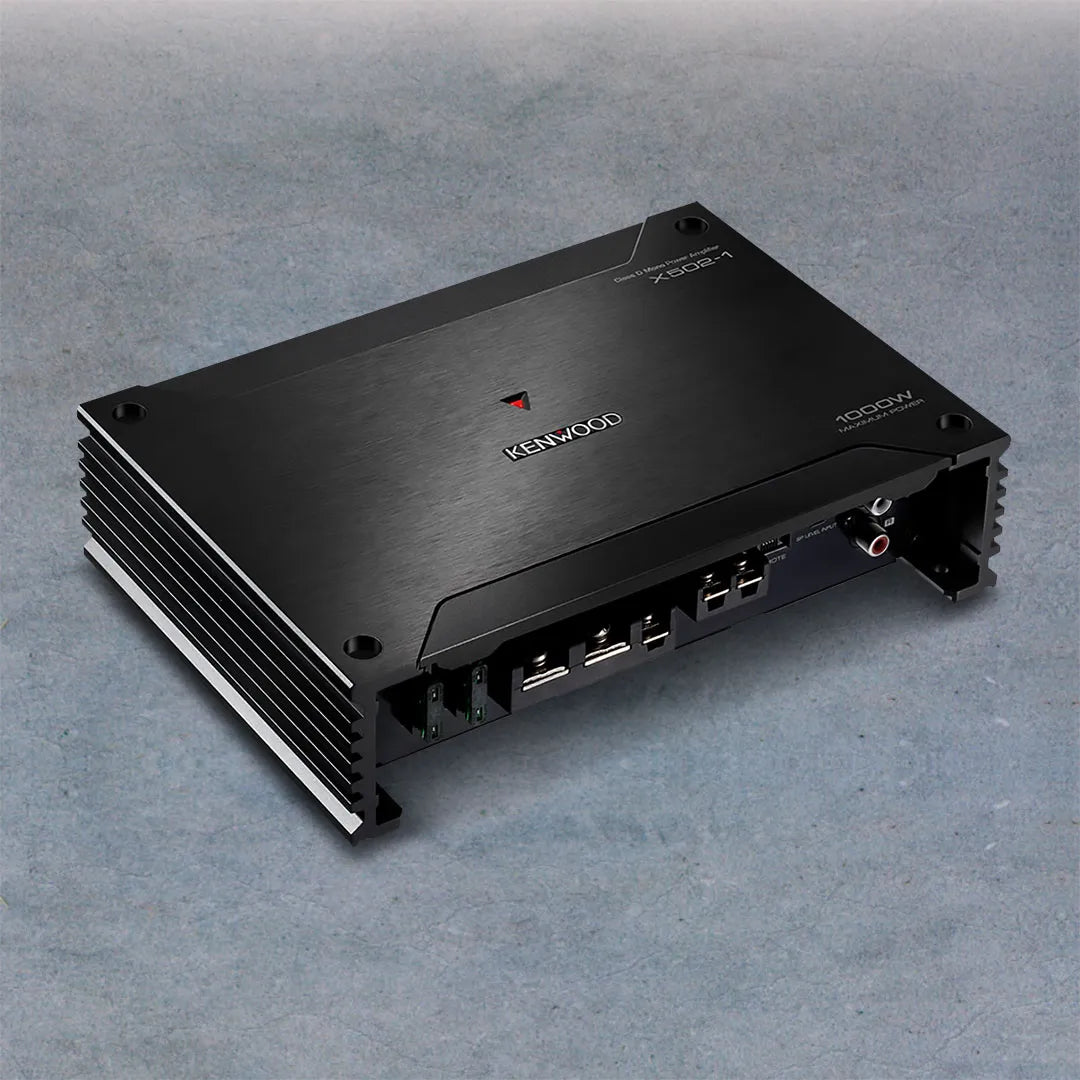

Kenwood 1000W X-Series Class-D Mono-Channel Power Amplifier
Ultra-high grade range amplifiers and speakers that deliver high density realistic sound and a spatial sound impression. The new X-Series amplifiers are precisely designed for High-Resolution Audio to create a truly authentic listening experience with every detail and nuance.

Kenwood X502-1 Features:

• Mono Channel Digital Power Amplifier
• D-Class Amplifier
• Compact Chassis
• Built-In Low Pass Filter
• Speaker Level Input
• Signal Sensing Turn-On
• Extruded Aluminium Heat Sink Design
• 2 Ohms Load Capability
• Screw-Type Terminals

Kenwood X502-1 Specifications:

• Class D Amplifier: Yes
• Full Range Digital Amplifier: Yes
• Load Capability: 2Ω Stable
• Rated Power Output (4Ω): 300W x 1 (4Ω)
• Rated Power Output: 500W x 1 (2Ω)
• CEA-2006 Compliant: Yes
• Low-Pass Filter: Yes
• Switched Mode Power supply: Yes, with Power MOS-FET
• Single Side Terminals: Yes
• Die-Cast Aluminium Heat Sink: Yes
• Rated Power Output (4Ω, 14,4V): 300W x 1 (20Hz ~ 200Hz, 1%THD)
• Rated Power Output (2Ω, 14,4V): 500W x 1 (100Hz, 1%THD)
• Rated power Output (CEA-2006): 300Watts RMS x 1 at 4 Ohms & 1% THD

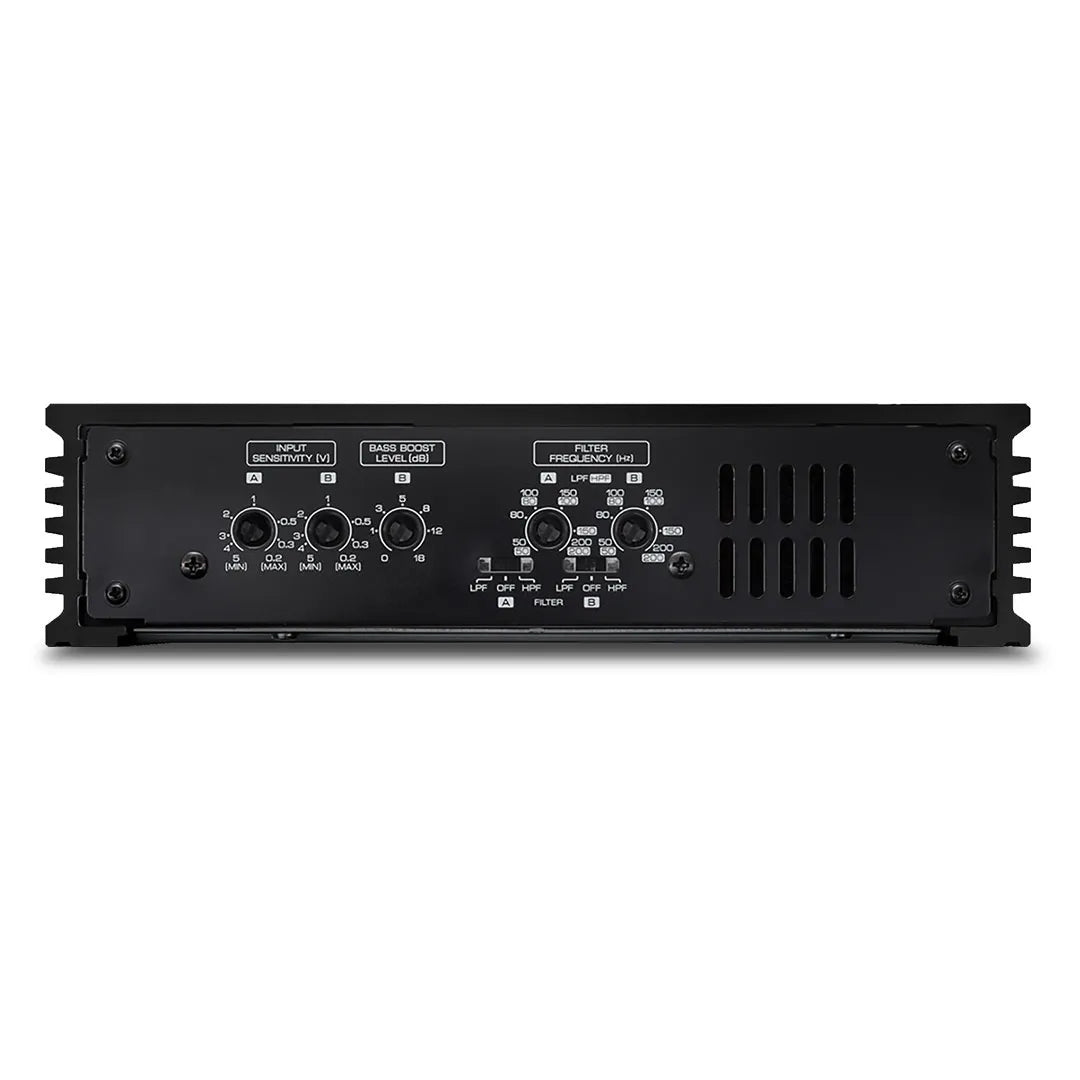

• Low-Pass Filter: 50~200Hz (-24dB/oct)
• Bass Boost Circuit: 40Hz, 18dB (B-Channel)
• RCA Input Sensitivity: 0.2 ~ 5V
• Input Impedance: 10kΩ
• Signal To Noise Ratio:: 100dB
• Signal To Noise Ratio (CEA-2006): 85dBa (Reference: 1 Watt Into 4 Ohms)
• Frequency Response (+0dB, -1dB): 20Hz ~ 200Hz
• Operating Voltage: 14.4V (11V ～ 16V Allowable)
• Maximum Current Consumption: 25A
• Installation Size (W x H x D): 213 x 53 x 149 (mm)
• Weight: 1.5kg

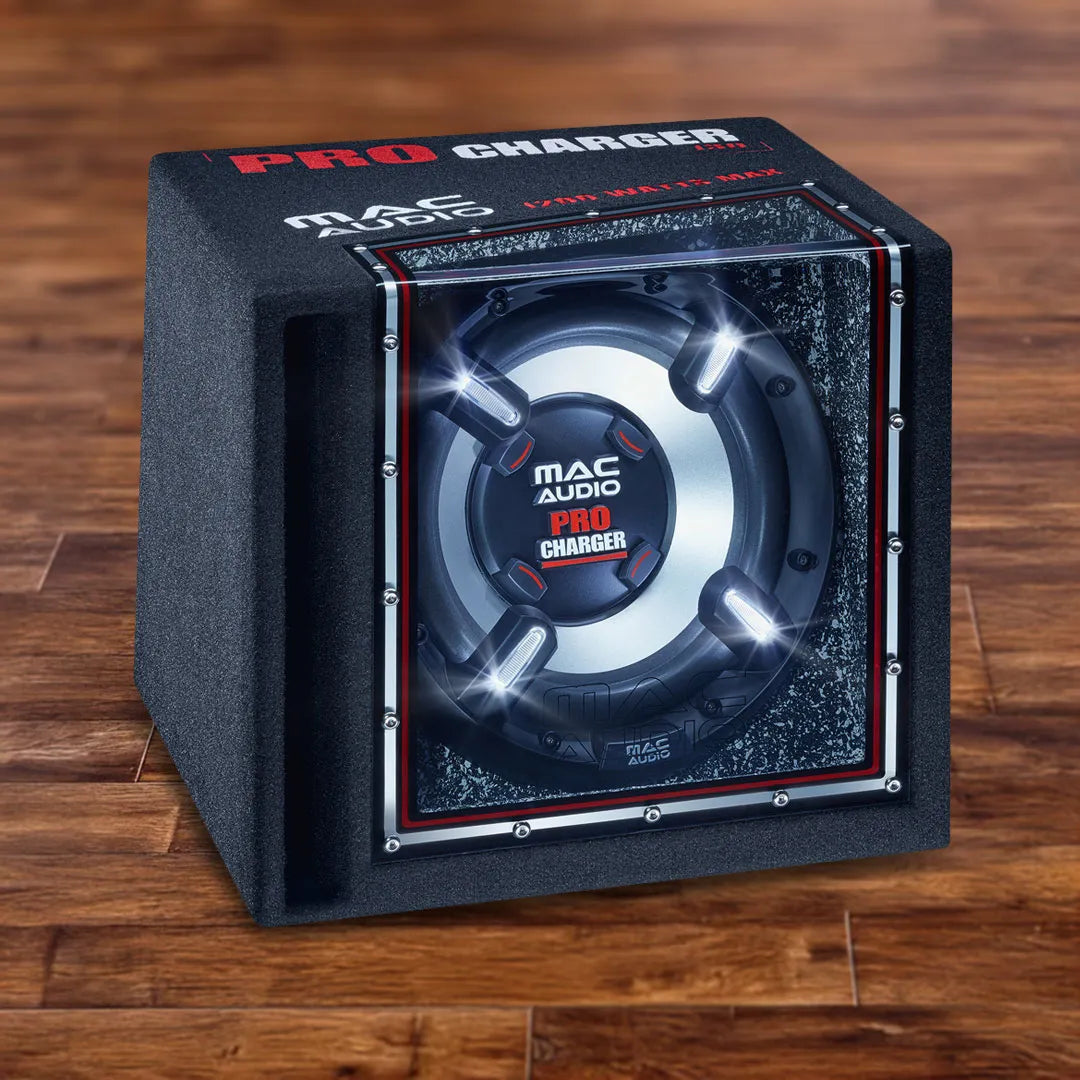

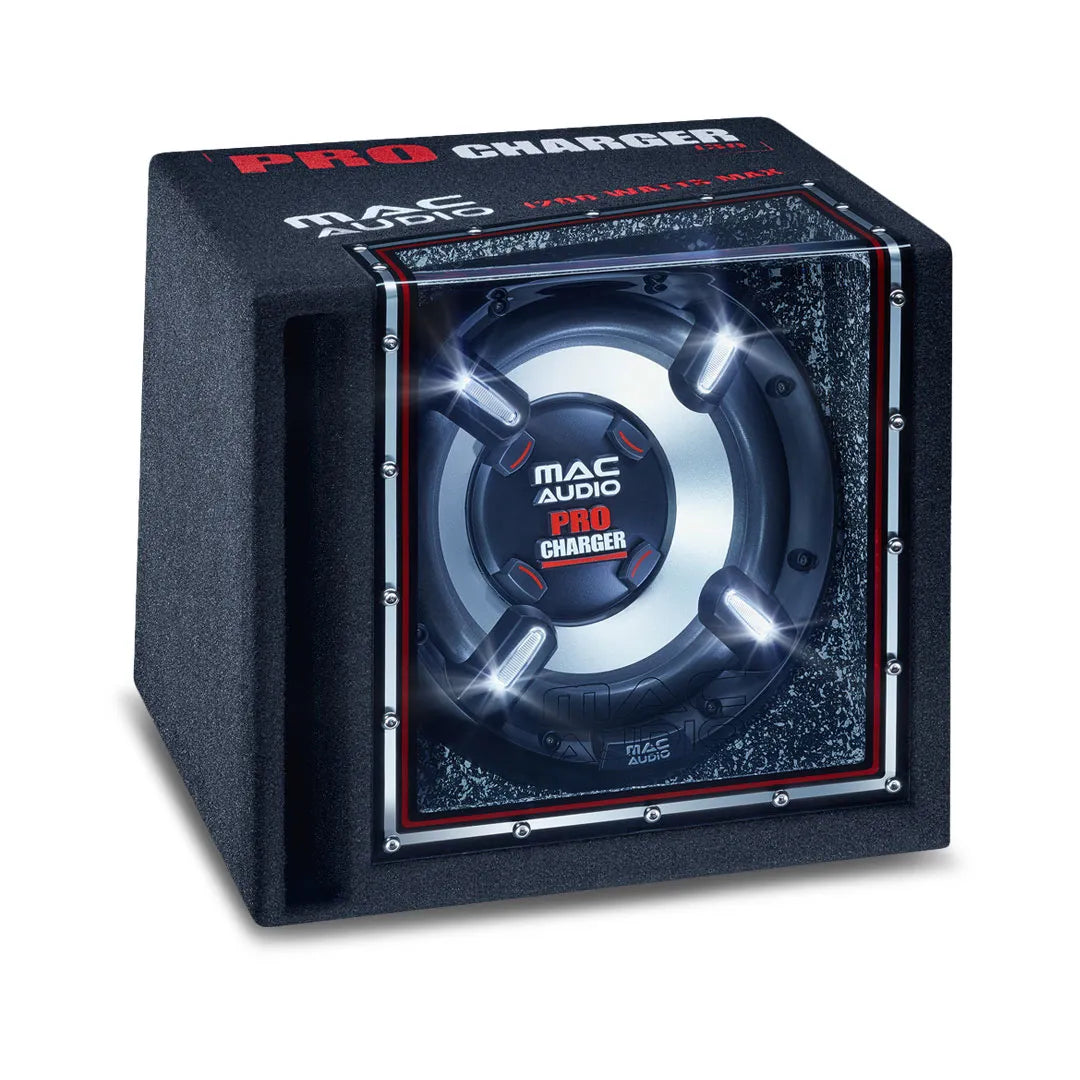

Mac Audio Pro Charger 12" Bandpass-Type Subwoofer Enclosure
The Pro Charger 130 bandpass subwoofer accommodates a 30 cm high-performance driver with tremendous depth and full power. The stable acrylic glass pane clearly shows off the attractive design that the LED-illuminated subwoofer chassis features. The non-slip cover has been embroidered.

The large bandpass subwoofer in the Pro Charger series is home to a 30 cm high-performance driver with bored pole core and long-throw surround for enormous depth and full power. A 44 ounce high-performance magnet is responsible for delivering the appropriate drive.

The reinforced steel basket with additional ventilation for the two inch four-layer voice coil is responsible for low resonances and greater resilience. The robust acrylic cover provides a clear view of the designer subwoofer ring on the chassis with the blue LED lamp; the non-slip cover has been embroidered.

Mac Audio MC-PRO-CHA-130 Features:

• Bandpass subwoofer with solid plexiglas window
• Design subwoofer ring with white LED illumination
• Air-flow optimised bass reflex port
• Screw terminal incl LED remote function
• 12“ high power driver with pole core ventilation and long excursion surround
• 44oz High Power Magnet
• 2” 4-Layer Voice Coil
• Solid steel basket with additional voice coil ventilation
• Anti-skid carpet with logo stitch

Mac Audio MC-PRO-CHA-130 Specifications:

• System: 12“ Bandpass Subwoofer
• Power Handling
• RMS: 400W
• Max: 1200W
• Impedance: 4Ω
• Frequency Response: 20 to 500Hz
• Sound Pressure Level: 91dB
• Dimensions (WxLxD/D): 435mm x 405mm x 340/400mm
• Weight: 15.0kg

This kit includes:

• Kenwood 1000W X-Series Class-D Mono-Channel Power Amplifier (X502-1)
• Mac Audio Pro Charger 130 12" Bandpass-Type Subwoofer Enclosure Package (MC-PRO-CHA-130)
