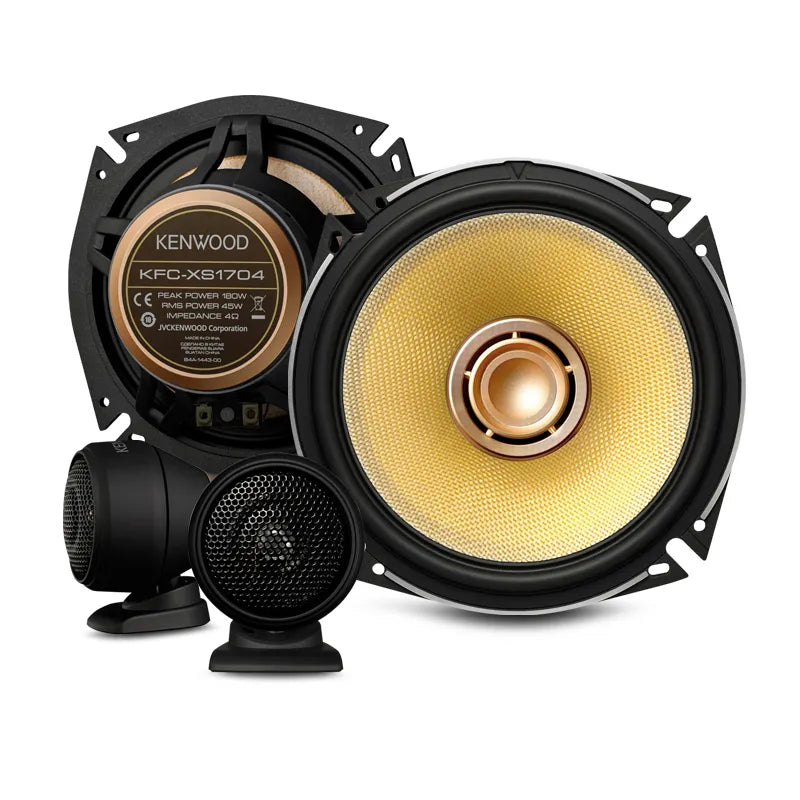

Kenwood KFC-XS1704 180W 17cm Component Speaker

Hi-Res Audio Certified, Enjoy Premium Sound!

Magnetic Circuit with Aluminium Ring
An aluminium ring minimises unwanted distortion caused by electromagnetic induction of the voice coil, and it ensures a clear sound.

High Rigid Glass Fibre Diaphragm
A glass-fiber is the material with high strength and high toughness. The woven glass-fiber diaphragm cleanly provides all the detail and impact you expect.

Phase Correcting Diffuser
Its specially designed slits correct unwanted phase shift and deliver a more life-like sound experience while the concave shape on a centre part of diffuser clearly reproduces a vocal sound image.

2-way Tweeter
The tweeter consists of two tweeters. This unique structure delivers the fullness in a wide range while each tweeter reproduces a different frequency band.

Special Phase Plug with Centre Dip Design
Optimises sound radiation resulting in natural and charming vocal.

Features:

• Magnetic Circuit with Aluminium Ring
• High Rigid Glass Fibre Diaphragm
• Special Phase Plug with Centre Dip Design
• 2-way Tweeter
• Phase Correcting Diffuser

Specifications:

• Peak Input Power 180W
• RMS Input Power 45W
• Size 17cm
• Tweeter Design Soft + Titanium Dome
• Tweeter Magnet Composition Ferrite
• Woofer Magnet Composition Neodymium
• Nominal Impedance 4ohms
• Frequency Response 34Hz to 56kHz (-10dB)
• Sensitivity (dB/W at 1m) 83dB
• Mounting Depth 57mm

FAQ

How much power can the Kenwood KFC-XS1704 handle?

It is rated at 180W peak.

What is the mounting depth of the Kenwood KFC-XS1704?

The listed mounting depth is 57mm. Measure your door or enclosure before you order.

What impedance is the Kenwood KFC-XS1704?

It is a 4 ohm design.

Will it fit my car?

Fitment depends on the vehicle. Contact the F.A.E. team with your make, model and year and we will confirm before you order.
