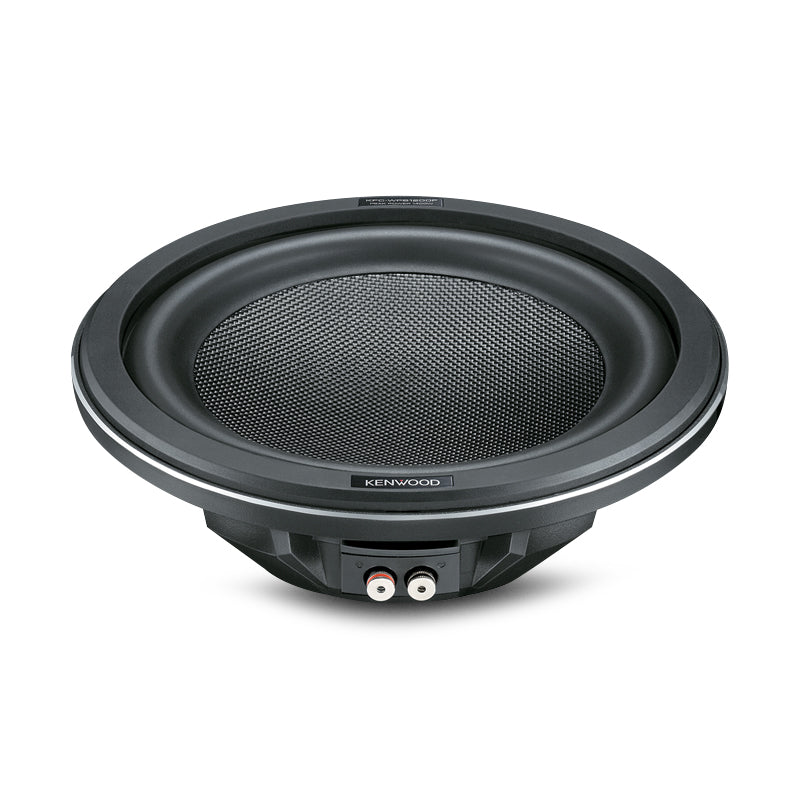

Kenwood KFC-WPS1200F 12" 1400W Shallow Subwoofer

The Kenwood KFC-WPS1200F is a 30cm shallow mount subwoofer, 1,400W peak and 350W RMS, only 100mm deep.

A carbon glass fibre cone with a honeycomb pattern and a heavy rubber surround keep cone flex down.

Problems it solves

• No space for a full depth sub in a ute or small car. Mounting depth is 100mm.
• Bass that smears at volume. The honeycomb cone resists flexing.
• Matching a mid power mono amp. 350W RMS at 4 ohms is an easy load.

KFC-WPS1200F specifications

• Size: 30cm (12 inch), shallow
• Power: 1,400W peak, 350W RMS
• Impedance: 4 ohms, single voice coil
• Frequency response: 30Hz to 800Hz
• Sensitivity: 91dB
• Mounting depth: 100mm
• Magnet: Ferrite

Fitment and compatibility

Suits slim sealed boxes behind or under a seat. Check that the box depth inside clears 100mm plus the grille.

What is in the box

Per Kenwood Europe, eight 5 x 30mm screws, two badges, a gasket and a cushion ship with the sub.

Install notes

Wire the single 4 ohm coil to a mono amp channel, set the low pass filter, and seal the box joints.

Warranty

Your rights under the Australian Consumer Law always apply. Keep your receipt and contact us first if anything goes wrong.

KFC-WPS1200F FAQs

Will the KFC-WPS1200F suit a shallow single cab ute space?

Often. It needs 100mm of mounting depth, so measure behind the seat and add the box wall and grille thickness.

What amp should I wire to the KFC-WPS1200F?

A mono amp making about 350W RMS into 4 ohms.

Can the KFC-WPS1200F go in a standard 12 inch box?

Yes, if the box has at least 100mm of clear depth behind the baffle. A slim box made for shallow 12 inch subs keeps the size down.
