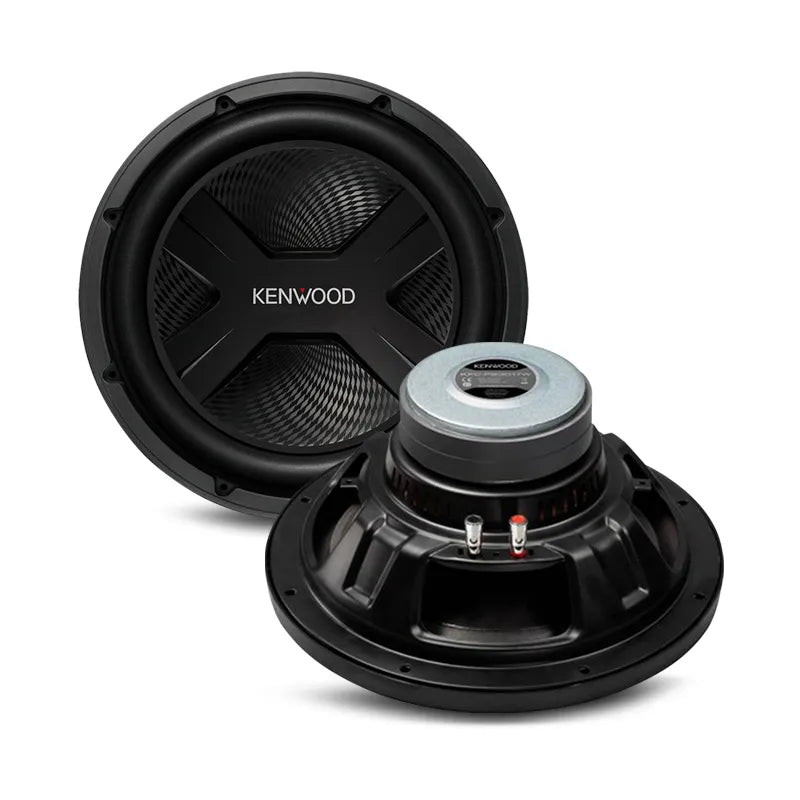

Kenwood KFC-PS3017W 2000W 30cm Subwoofer
Click to open expanded view
KENWOOD logo

Out of stock

Kenwood KFC-PS3017W 2000W 30cm Subwoofer

SKU: KFCPS3017W
5.0 (1)
Regular price
$149
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Enjoy Premium Sound with Kenwood KFC-PS3017W 2000W Subwoofer!

Durability Enhancement
Heat-resistant Aluminum Bobbin provides higher thermal conductivity.

Stress Controlled Spider
Computer-optimized Dumper controls stress and increase mechanical durability.

Kenwood KFC-PS3017W Features:

  • Durability Enhancement
  • Stress Controlled Spider

Kenwood KFC-PS3017W Key Features

  • 300mm Polypropylene Cone (PP Cone)
  • 400 Rated/RMS Input Power
  • High-ridged Two-piece Diaphragm for solid bass
  • X-motif cap Technology for resonance control
  • Single, multi-layered, voice coil.
  • Aluminum bobbin for better thermal conductivity
  • Airflow control for optimal heat radition
  • Stress controlled spider
  • Push-terminals for easy connection
  • Sealed/Ported installation capabillity

Speaker Features

  • Speaker Size 300mm
  • Oversized Dimension Yes
  • Speaker Cone Design Diamond-Array pattern
  • Magnet Type Ferrit
  • Voice-coil single, multi-layer voice coil
  • Terminals Push Type
  • Spider Stress controlled spider
  • Bottom-Yoke Fully closed bottom yoke
  • Heat dissipation technology Airflow control
  • Installation Capability Sealed / Ported

Kenwood KFC-PS3017W Specifications:

General

  • Speaker/Woofer Specifications
  • Peak Input Power 2000W
  • Rated Input Power 400W
  • Woofer Cone material Polypropylene (PP) Cone
  • Center Cap Type x-motif cap
  • Speaker Basket Steel
  • Speaker Surround Foam
  • Spider Type Stress controlled Spider
  • Sensitivity 85dB/W/m
  • Frequency Response 29Hz ~ 300Hz
  • Speaker Impedance 4Ω
  • Dimensions (W x H x D) 326 x 326 x 155.4mm
  • Mounting Depth 137mm
  • Mounting Hole Diameter Ø 280mm
  • Speaker Weight 4200gr

Subwoofer Parameters

  • Nominal impedance (Z) 4Ω
  • DC resistance (Re) 3.7Ω
  • Resonant frequency (FSO) 24.4Hz
  • Mechanical Q factor (QMS) 6.79
  • Electrical Q factor (QES) 0.52
  • Total Q factor (QTS) 0.483
  • Voice coil inductance (LBM) 2.04mH
  • Voice coil diameter (d) 50mm
  • Force factor (BL) 12.9T/m
  • Peak excursion Xmax 5.9mm
  • Moving mass (MMS) 152gr.
  • Volume accoustic compliance (VAS) 104liter
  • Piston Area (SD) 0.0512m²
  • Displacement 1.2cc
  • Sealed box volume 35.4liter
  • Sealed Box Dimensions 457 x 362 x 299mm (18mm thick MDF)(WxHxD)
  • Vented box volume 42.5liter
  • Vented Box Dimensions 590 x 362 x 394mm (18mm thick MDF)(WxHxD)
  • Port dimensions (labyrinth) (W x H x L) 35 x 324 x 736mm
