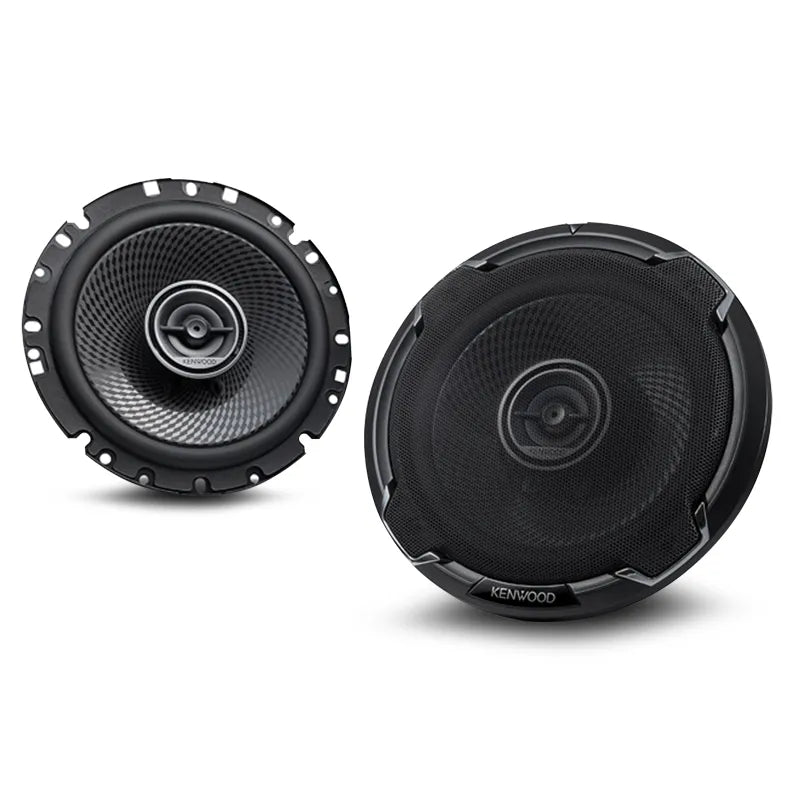

Two coaxial speakers, one showing the cone and tweeter and one with grille fitted
Two coaxial speakers, one showing the cone and tweeter and one with grille fitted
Bare speaker with its centre tweeter on the left beside a grille fitted speaker on the right
Bare speaker with its centre tweeter on the left beside a grille fitted speaker on the right
Click to open expanded view
KENWOOD logo

Kenwood KFC-PS1796 17cm 330W Performance Series 2 Way Speakers, Pair

SKU: KFCPS1796
Price
$139
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Two coaxial speakers, one showing the cone and tweeter and one with grille fitted

Kenwood KFC-PS1796 17cm 330W Performance Series 2 Way Speakers, Pair

$139

Product features

The Kenwood KFC-PS1796 is a pair of 17cm two way coaxial speakers from the Performance Standard series. They are rated at 100W with 330W peak, have 88dB sensitivity and a 48mm mounting depth, and come with grilles and speaker leads. They suit doors or rear decks.

A sensible factory upgrade

Factory paper cones go soft and rattle with age, and the sound turns muddy. These use a stiff polypropylene woofer with a diamond array pattern, a rubber surround and a steel basket, plus a 30mm balanced dome tweeter for clearer highs. At 88dB they work well from head unit power, so an amp is optional.

Specifications

Model KFC-PS1796
Type 2 way coaxial, pair
Size 170mm
Rated power 100W
Peak power 330W
Sensitivity 88dB, 1W at 1m
Frequency response 70Hz to 24kHz
Impedance 4 ohms
Woofer Polypropylene, diamond array pattern
Tweeter 30mm balanced dome, neodymium
Magnet Ferrite, 270g
Mounting depth 48mm
Mounting hole 139.6mm
Tweeter height 6mm
Size with grille 179 x 179 x 66.4mm
Weight each with grille 813g

What is in the box

  • 2 x KFC-PS1796 speakers
  • Grille assemblies
  • 0.5m speaker leads
  • 8 x 4 x 25mm screws and 8 speed nuts
  • Adhesive tape pad

Install notes

Check there is 48mm of clearance behind the mount for the window and the door skin. Many cars need a speaker adaptor for a 17cm frame. Seal the speaker to the mount with foam so the bass does not leak away into the door.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ

Do I need an amplifier?

No. With 88dB sensitivity they run well on head unit power.

Are grilles included?

Yes.

Will they fit a 6.5 inch opening?

They are 17cm speakers with a 139.6mm hole. Many 6.5 inch openings fit, but check yours first.
