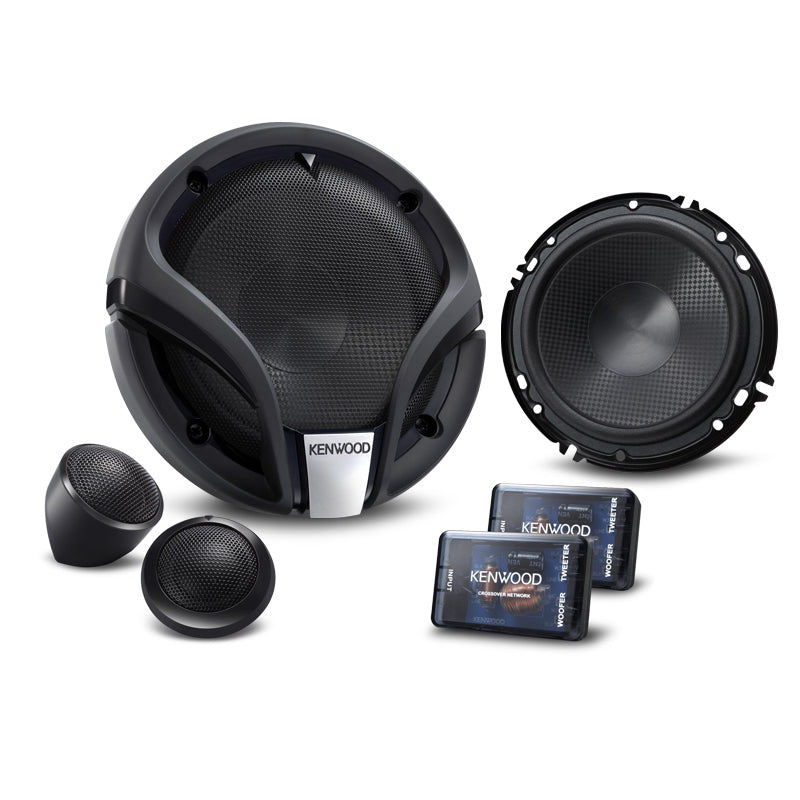

Set of Kenwood KFC-M614P 6.5 inch 300W 2-Way Component Speaker System, including a woofer, tweeter, and external crossovers.
Set of Kenwood KFC-M614P 6.5 inch 300W 2-Way Component Speaker System, including a woofer, tweeter, and external crossovers.
Click to open expanded view
KENWOOD logo

Kenwood KFC-M614P 6.5" 300W 2-Way Component Speaker System

SKU: KFCM614P
5.0 (1)
Sale price
$128.34
Regular price
$199
You save
36%
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Set of Kenwood KFC-M614P 6.5 inch 300W 2-Way Component Speaker System, including a woofer, tweeter, and external crossovers.

Kenwood KFC-M614P 6.5" 300W 2-Way Component Speaker System

$128.34
$199

Product features

Quick answer

The Kenwood KFC-M614P is a 6.5 inch component speaker set rated at 300W peak and 65W RMS, with external crossovers.

Kenwood builds the 160mm woofers with injection PP cones and a square array diaphragm, paired with 25mm soft dome tweeters on neodymium magnets.

Problems it solves

  • Muddy factory door speakers. A separate 25mm soft dome tweeter mounted high puts vocals on the dash, not at your knees.
  • Awkward tweeter spots. Angle and flush brackets come in the box for both styles.
  • A first amplifier upgrade. 65W RMS suits a modest 4 channel amp.

Specifications

  • Size: 160mm (6.5 inch) woofer, 25mm tweeter
  • Power: 300W peak (KITS spec), 65W RMS (CEA spec)
  • Sensitivity: 85dB/W at 1m
  • Frequency response: 75Hz to 21kHz
  • Impedance: 4 ohms
  • Cutout diameter: 123.0mm
  • Mounting depth: 45.5mm

Fitment and compatibility

Kenwood gives a 123mm cutout and 45.5mm of mounting depth for the KFC-M614P woofer, which suits most 6.5 inch door openings. Many cars need speaker spacers and adaptor leads for the factory plugs.

What is in the box

Kenwood lists two woofer grilles, two crossover network boxes, angle and flush tweeter brackets, speed nuts, screws, wing nuts, mounting hardware, cushions and two vinyl ties.

Install notes

Mount each crossover where it stays dry, run the head unit or amp feed into it, then out to the woofer and tweeter.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the KFC-M614P

Is 45.5mm of depth enough for the KFC-M614P in my doors?

That is the depth Kenwood quotes. Measure from the mounting face to the window glass when it is wound down, and add spacers if the factory mount is a different shape.

Where do the KFC-M614P crossover boxes go?

Each side has a network box. Mount it somewhere dry in the door or kick panel, feed it from the head unit or amp, then connect the woofer and tweeter outputs.

Is 85dB loud enough for the KFC-M614P on head unit power?

It works on head unit power, but 85dB is on the quiet side, so an amp of around 65W RMS a channel suits it better.

Gear that works with the KFC-M614P: Car Speakers and Kenwood KFC-PS1697 Speakers.
