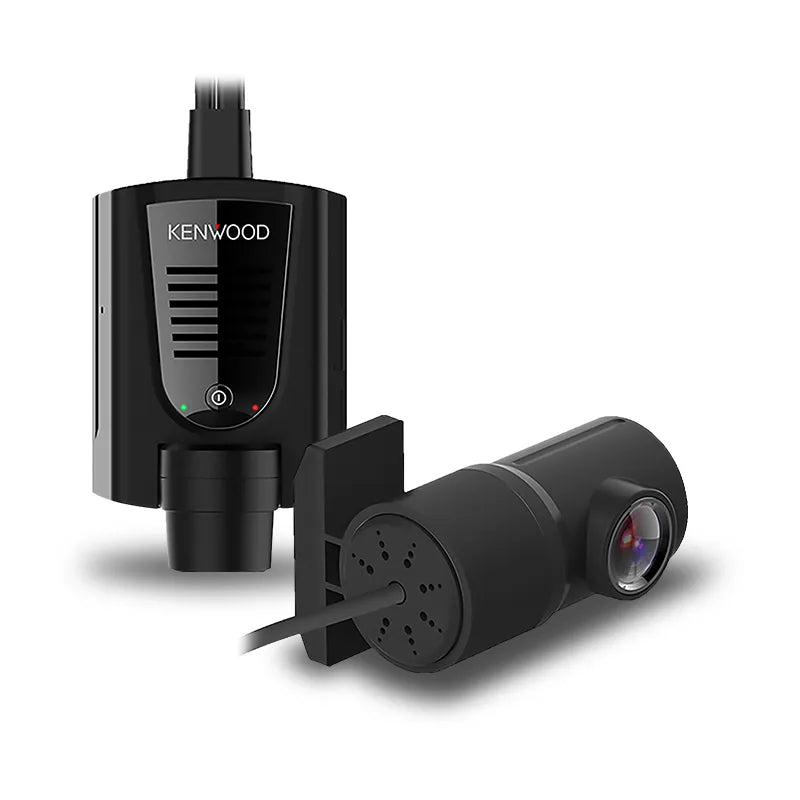

Kenwood DRV-MN1025 Optional Front & Rear Camera for DMX1025BT

The Kenwood DRV-MN1025, SKU DRVMN1025, is a front and rear Full HD dash camera made to run from the DMX1025BT head unit.

You pick front, rear or both views on the radio screen and record by touch.

Problems it solves

• A dash cam with its own fiddly screen. This one runs from the DMX1025BT display.
• No record of what happens behind. The rear camera records at the same time.
• A bump while parked. Parking mode and the G sensor save the footage.

DRV-MN1025 specifications

• Resolution: 1920 x 1080 front and rear
• Frame rate: 30fps
• Sensor: 1/2.8 inch colour CMOS
• Lens: F2.0 fixed focus
• Field of view: 140 degrees diagonal front and rear
• Format: H.264 MP4
• Storage: microSDXC Class 10 or above, up to 256GB
• Supply: DC 9 to 16V, 350mA max
• Cable: 9.5 m
• Front camera: 54 x 26 x 71 mm
• Rear camera: 62 x 42 x 40 mm

Fitment and compatibility

Kenwood makes it for the DMX1025BT multimedia receiver. Ask us before pairing it with any other head unit.

What is in the box

Kenwood lists a mount bracket but no SD card.

Install notes

Kenwood supplies a 9.5 m cable for the camera link. Ask us to fit the DRV-MN1025 and hide the wiring.

Warranty

Your rights under the Australian Consumer Law always apply. Keep your receipt and contact us first if anything goes wrong.

DRV-MN1025 FAQs

Which Kenwood head units does the DRV-MN1025 plug into?

It is made for the Kenwood DMX1025BT. Check with us for other units.

Does the DRV-MN1025 include an SD card?

No. Use a Class 10 or faster microSDXC card up to 256GB.

Can the DRV-MN1025 rear camera act as a reverse camera?

Kenwood says the rear dash cam can be used as a backup camera.

How do I connect the DRV-MN1025 cameras?

It connects to the DMX1025BT and runs from its screen. Ask us to fit it and route the 9.5 m cable.
