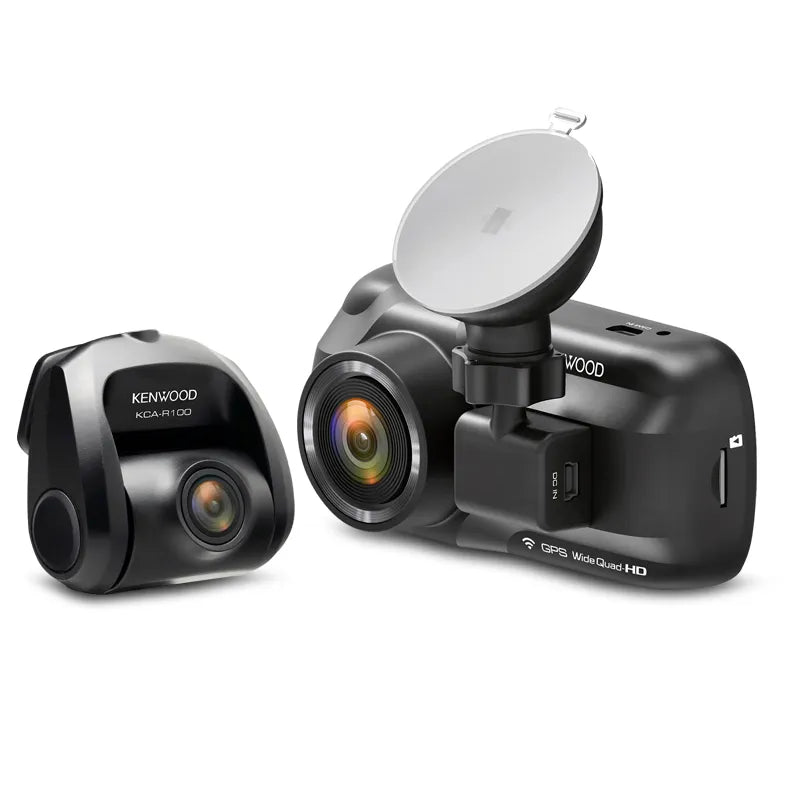

Kenwood DRV-A501WDP Dual Camera Package

The Kenwood DRV-A501WDP Features a Dual-Camera System

3.7 & 2.0 Megapixel Recording provides High Resolution Recording
3.7 and 2.0 Megapixel High Definition recording captures clear video even while driving.

Capable of capturing a clear image of a license plate

HDR (High Dynamic Range) & WDR (Wide Dynamic Range) for Backlighting
Easily records clear images in dark or well lit settings without underexposing or overexposing the image.
Front camera switches to WDR when rear camera is connected.

Front & Rear View Recording
The DRV-A501WDP includes 2 dash cams: 1 to record in front of your vehicle and 1 to record behind your vehicle, all at the same time. The rear dash cam includes a 26’ cable that connects to the front dash cam, allowing it to easily be mounted to the rear windshield or anywhere else in the vehicle where you would like to record. When in Dual Camera Recording Mode, both cameras maximum recording resolution is 2.0 Megapixel (Full HD). Rear cam must be turned off in menu setting to enable front cam 3.7 Megapixel recording.

Polarized Filter Included (Front Camera)
Simply attach PL filter to front of lens to reduce windscreen glare/reflection. The filter has a rotating bezel, so that you can setup the reflection free lens exactly how you need in your vehicle.

Supports micro SDXC/SDHC

• microSDXC/SDHC card 8GB to 256GB supported.
• SD Card Recorded File Capacity
• 8GB Micro SD = 47 mins (1 minute x 47 recordings)
• 16GB Micro SD = 94 mins (1 minute x 94 recordings)
• 32GB Micro SD = 141 mins (1 minute x 141 recordings)
• 64GB Micro SD = 376 mins (1 minute x 376 recordings)
• 128GB Micro SD = 752 mins (1 minute x 752 recordings)
• 256GB Micro SD = 1504 mins (1 minute x 1504 recordings)
  *Based on default recording settings.

26'(8m) Rear Camera Cable
26' (8m) power & video cable enable you to install the rear camera inside your car, truck, or RV.
*Do not install the camera outside of your vehicle.

12V & 24V Compatible
Cameras work with both 12V and 24V applications.

3.0" LCD Display with Touch Panel Control
Large touch display provides easy access to checking recorded videos and changing settings.

Wireless Link
Access your dash cam data wirelessly.

Wireless Link App
Easily share recorded videos directly to social media using the KENWOOD DASH CAM MANAGER smartphone application (iOS 9.0+ or Android 5.0.2+).

KENWOOD VIDEO PLAYER
The KENWOOD VIDEO PLAYER is a desktop software for displaying video recorded with this device.

PC Requirements

• OS: Microsoft Windows 10, 8.1, 7*
• Windows 7 Service Pack 1 & Microsoft Visual C++must be installed.
• OS: Apple Mac OS X 10.11 (El Capitan) or later.

G-sensor & Built-in GPS
The DRV-A700WDP is equipped with a G-Sensor designed to detect a collision, and GPS that records speed, latitude, and longitude. KENWOOD DASH CAM MANAGER is a PC application that displays video recorded by the dash cam. KENWOOD DASH CAM MANAGER can be downloaded from the JVCKENWOOD website.

Parking Mode Recording
When the vehicle is parked and turned off, parking mode becomes active. If the vehicle is subject to a collision or other physical impact, the camera powers on and automatically records 30 seconds of video.

Super Capacitor
If power is lost, this prevents the recorded video file from being corrupted, as it provides enough power to allow the video file to close properly.

Magnetic Mount
Quickly place and remove the dash cam. No cable to connect or disconnect from the dash cam.

2 Mounts Included for Front Camera
3M Tape Style
Suction Cup Style

Adjustable Mounting Holder (Rear Camera)
Adjustable Rear Camera mounting holder enables viewing position change by up to 180 degrees.

Features:

• 3.7 & 2.0 Megapixel Recording provides High Resolution Recording
• HDR (High Dynamic Range) & WDR (Wide Dynamic Range) for Backlighting
• Front & Rear View Recording
• Polarized Filter Included (Front Camera)
• Supports micro SDXC/SDHC
• 26'(8m) Rear Camera Cable
• 12V & 24V Compatible
• 3.0" LCD Display with Touch Panel Control
• Access Your Dash Cam Data Wirelessly
• G-sensor & Built-in GPS
• Parking Mode Recording
• Super Capacitor
• Magnetic Mount
• 2 Mounts Included for Front Camera
• Adjustable Mounting Holder (Rear Camera)
