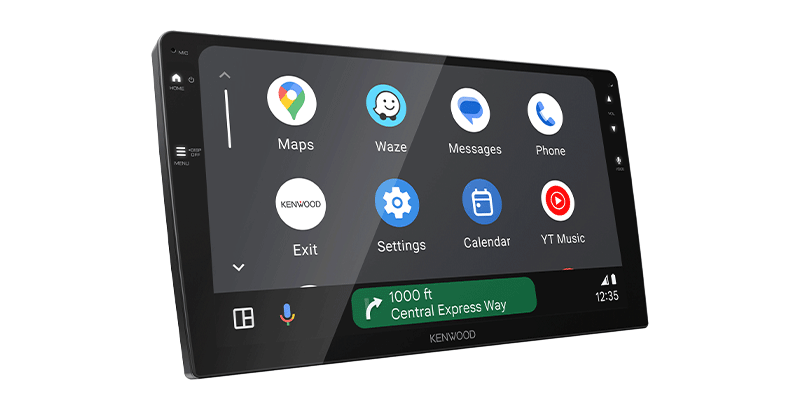

Kenwood DMX80AXS at an angle showing the Android Auto app screen
Kenwood DMX80AXS at an angle showing the Android Auto app screen

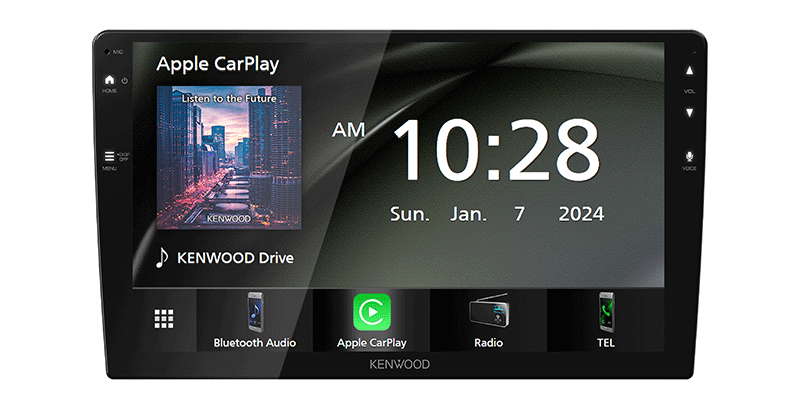

Kenwood DMX80AXS showing the Apple CarPlay home screen with clock
Kenwood DMX80AXS showing the Apple CarPlay home screen with clock

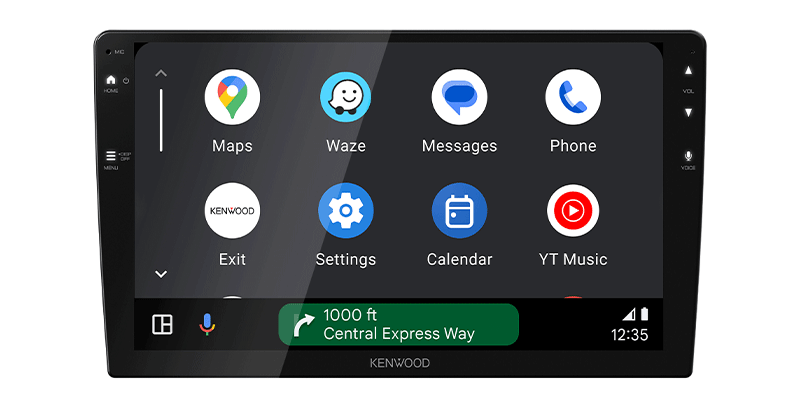

Kenwood DMX80AXS face on showing the Android Auto app screen
Kenwood DMX80AXS face on showing the Android Auto app screen

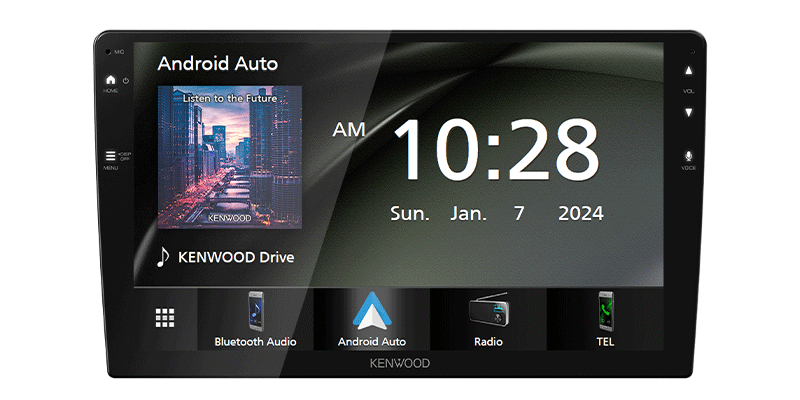

Kenwood DMX80AXS showing the Android Auto home screen with clock
Kenwood DMX80AXS showing the Android Auto home screen with clock

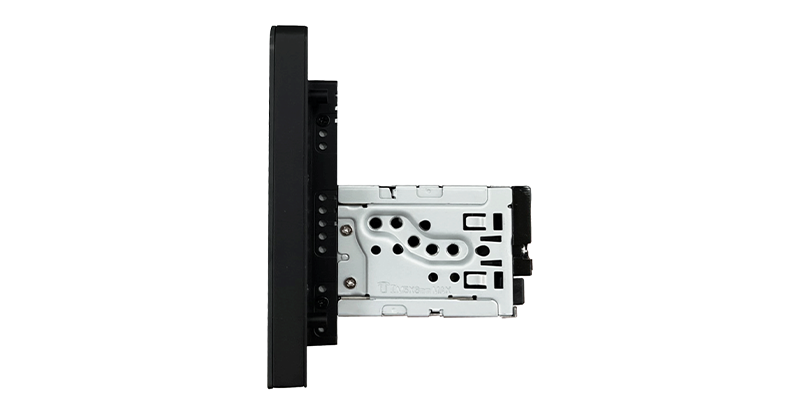

Side view of the Kenwood DMX80AXS screen and chassis
Side view of the Kenwood DMX80AXS screen and chassis

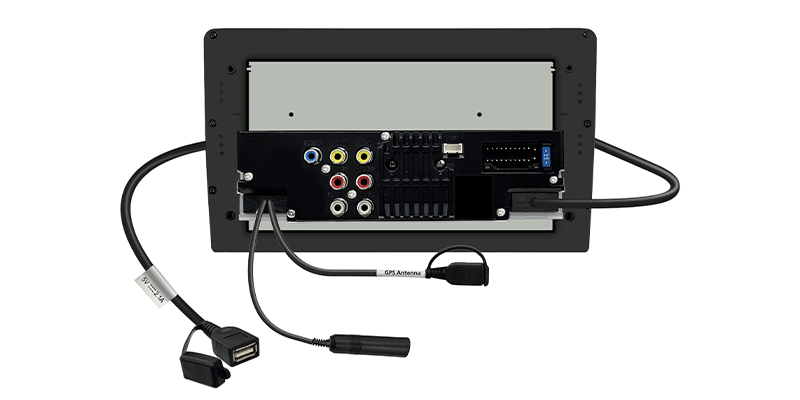

Rear of the Kenwood DMX80AXS chassis with connectors and leads
Rear of the Kenwood DMX80AXS chassis with connectors and leads
Click to open expanded view
KENWOOD logo

Kenwood DMX80AXS 9" Wireless CarPlay and Android Auto Universal Digital Multimedia Receiver

SKU: DMX80AXS
Price
$899
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Kenwood DMX80AXS 9-inch head unit with a touchscreen displaying the time, a music app interface, and the Kenwood Drive app. It shows features like Bluetooth audio, Android Auto, and radio.

Kenwood DMX80AXS 9" Wireless CarPlay and Android Auto Universal Digital Multimedia Receiver

$899

Product features

A 9 inch screen will not drop into most dashes without the right kit, and the wrong kit leaves gaps. The DMX80AXS is built to flush mount with a vehicle specific 9 inch kit, and we stock kits that name it.

Kits and bundles we list for it

  • Aerpro AKTO3 for the Toyota Hilux 2020 on, for vehicles without a factory amplifier.
  • Aerpro AKNI12 for the Nissan Navara 2015 to 2020, DX and RX base models.
  • Aerpro AKMZ1 for the Mazda BT-50 2012 to 2018.
  • Ready made bundles for the Mitsubishi Triton 2016 to 2018 and the Mazda BT-50 2012 to 2018.
  • Aerpro says these kits suit trapezoid shaped units and will not suit standard DIN or double DIN radios.

What it does

  • 9.0 inch WSVGA capacitive screen. CarPlay and Android Auto work by USB cable or wirelessly.
  • Wireless mirroring through MirrorApp+ on selected phones.
  • 13 band EQ, time alignment, rear camera input with guidelines, two 2.5V preouts plus a mono sub out, short chassis and a 2.1A USB port.
  • Direct OEM steering remote control on most Japanese and Korean vehicles, with an optional KCA-RCDV340 remote.

Specifications

  • Screen: 9 inch WSVGA capacitive touchscreen, 1024 x 600
  • Apple CarPlay and Android Auto: wired and wireless
  • Bluetooth: version 5.0, SBC and AAC
  • Amplifier: 50W x 4 maximum, 22W x 4 full bandwidth
  • Preouts: 2.5V
  • EQ: 13 band graphic, with high and low pass filters
  • USB: Type A, up to 2.1A charging
  • WiFi: 5GHz
  • Installation size without sleeve: 229 x 130.5 x 100.8 mm (W x H x D)
  • Weight: 1.33 kg
  • Optional remote: KCA-RCDV340

Warranty

  • This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

Questions and answers

Do I need a kit to fit it?

Yes, a vehicle specific 9 inch kit. We list Aerpro kits for the Hilux 2020 on, Navara 2015 to 2020 and BT-50 2012 to 2018.

Will my steering wheel controls keep working?

On most Japanese and Korean vehicles, yes, through direct OEM steering remote control. Tell us your car and we will confirm.

Is there a bundle for my ute?

We list DMX80AXS bundles for the Triton 2016 to 2018 and the BT-50 2012 to 2018, with the kit and harnesses included.

How deep is the DMX80AXS behind the dash?

Kenwood lists it at 100.8mm deep without the sleeve, 229mm wide and 130.5mm high. Send us your vehicle and we will check the fit and the dash kit.

Can I add an amplifier later?

Yes. It has 2.5V preouts, so an amplifier and sub can be added down the track.
