Kenwood DMX7525DABS 6.92" HD Multimedia Receiver DAB+ CarPlay

SKU: DMX7525DABS
Price
$799
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Kenwood DMX7525DABS 6.92" HD Digital Multimedia Receiver with DAB+ and Wireless CarPlay

A 6.92" HD 1280x720 capacitive touchscreen Double DIN multimedia receiver with built-in DAB+ digital radio, wireless and wired Apple CarPlay and Android Auto, wireless smartphone mirroring, HDMI input, Bluetooth, Wi-Fi, dual camera inputs with HD rear camera capability, 13-band graphic EQ with time alignment, and 3V 3-channel preouts.

Product Overview

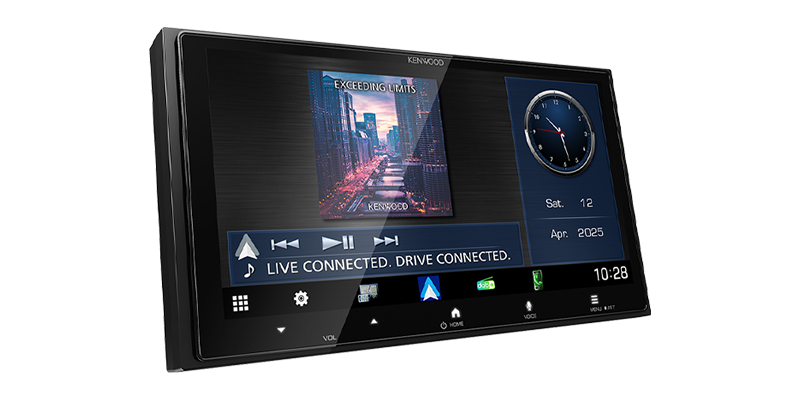

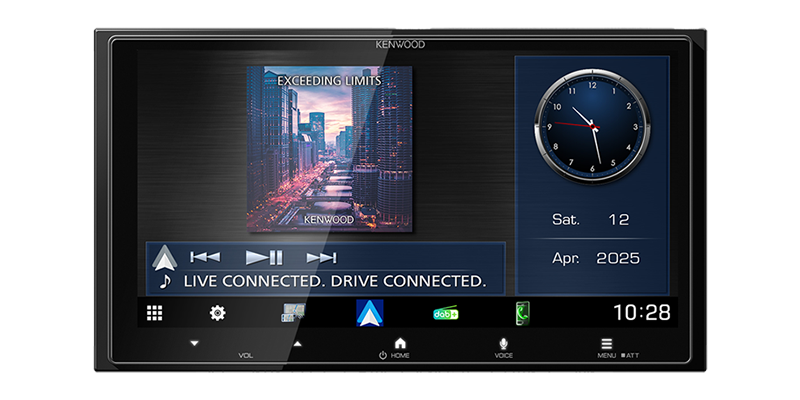

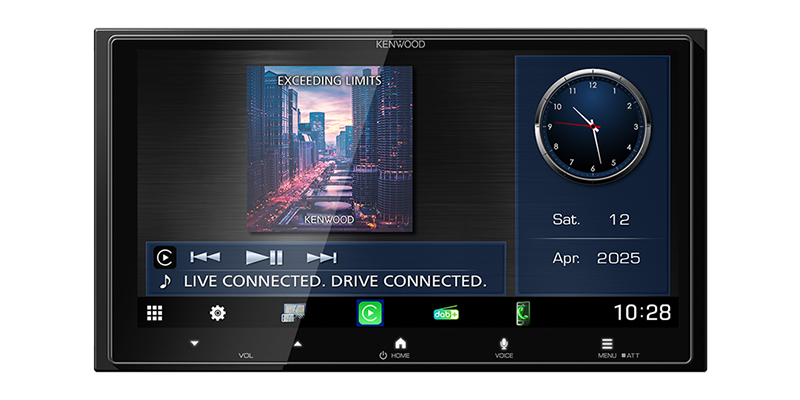

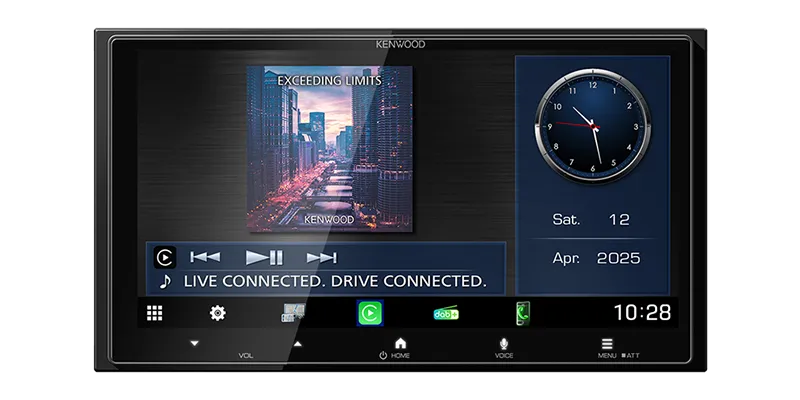

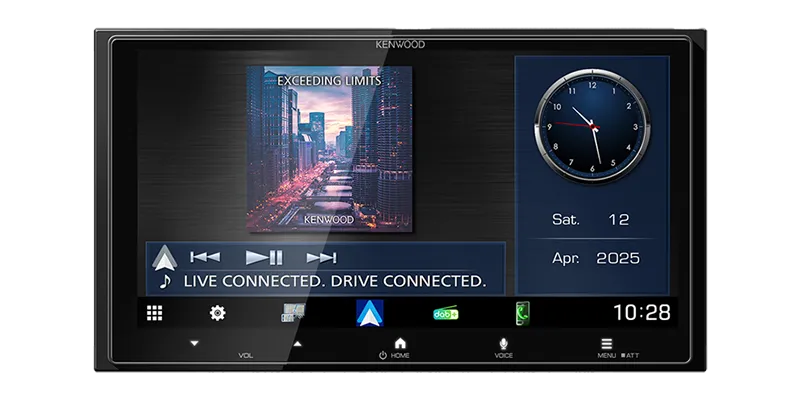

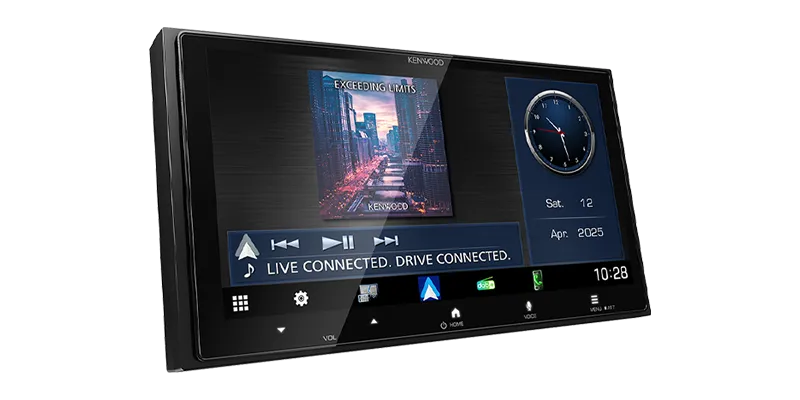

The Kenwood DMX7525DABS is a 6.92" Double DIN multimedia receiver featuring a high-definition 1280x720 electrostatic capacitive touchscreen with high-luminance white LED backlight and wide viewing angles - providing 2.4 times the resolution of a standard WVGA display. Built-in DAB+ digital radio provides digital radio reception without requiring an additional tuner; an optional DAB antenna is required. Wireless and wired Apple CarPlay and wireless and wired Android Auto are supported, alongside wireless smartphone mirroring via the CarbitLink-EasyConnection app for compatible smartphones. HDMI input supports screen mirroring via cable using an optional KCA-HD100 HDMI cable (sold separately).

Audio processing includes a 13-band graphic EQ, time alignment, and 3V 3-channel preouts (front, rear, subwoofer). Two camera inputs support both a front and rear camera with built-in adjustable parking guidelines and HD rear camera compatibility with the optional CMOS-740HD and CMOS-150HD cameras (sold separately). The USB port provides up to 2.1A charging for compatible smartphones. Direct OEM steering wheel remote control learning is supported for most Japanese and Korean vehicles. The optional KCA-RCDV340 remote control is available separately.

Features & Benefits

6.92" HD 1280x720 Capacitive Touchscreen: The electrostatic capacitive touchscreen at 1280x720 resolution with high-luminance white LED backlight and wide viewing angles provides 2.4 times the resolution of a standard WVGA display, delivering sharper and more detailed map, media, and interface visuals.

Wireless and Wired Apple CarPlay: Both wireless and wired Apple CarPlay are supported, allowing iPhone users to access calls, maps, and music via the touchscreen or voice without requiring a cable connection for compatible iPhones.

Wireless and Wired Android Auto: Both wireless and wired Android Auto are supported, providing a safe, distraction-minimising interface for compatible Android smartphones with larger touch targets and voice action support.

Wireless Smartphone Mirroring via CarbitLink-EasyConnection: By installing the CarbitLink-EasyConnection app on a compatible smartphone, the phone screen is mirrored wirelessly on the DMX7525DABS display, enabling access to apps including Waze, YouTube, and Instagram from the head unit screen.

HDMI Input for Wired Screen Mirroring: The HDMI input allows a smartphone or other compatible device to be mirrored on the 6.92" display via a cable connection using the optional KCA-HD100 HDMI cable (sold separately).

Built-In DAB+ Digital Radio Tuner: The DMX7525DABS includes a built-in DAB+ tuner for digital radio reception without requiring a separate tuner module. An optional DAB antenna is required for use.

Built-In Bluetooth and Wi-Fi: Integrated Bluetooth provides hands-free calling and wireless audio streaming. Wi-Fi connectivity supports wireless CarPlay, Android Auto, and smartphone mirroring functionality.

Dual Camera Inputs with HD Rear Camera Capability: Two camera inputs support both a front and rear camera simultaneously. Built-in adjustable parking guidelines are provided. The rear camera input is HD-compatible, supporting the optional Kenwood CMOS-740HD and CMOS-150HD cameras at 1280x720 resolution.

13-Band Graphic EQ with Time Alignment: The 13-band graphic EQ enables precise audio tuning across the frequency spectrum, and the time alignment feature provides optimal sound staging for the specific listening position in the vehicle.

3V 3-Channel RCA Preouts: Three-channel 3V preouts covering front, rear, and subwoofer outputs support external amplifier integration.

Direct OEM Steering Wheel Remote Control Learning: The DMX7525DABS supports direct OEM steering wheel remote control learning for most Japanese and Korean vehicles, allowing the factory steering wheel buttons to control the head unit without an additional SWC interface in supported vehicles.

2.1A USB Charging: The USB port provides up to 2.1A charging output for rapid smartphone charging during use.

Technical Specs

Specification Detail
SKU DMX7525DABS
Brand Kenwood
Display Size 6.92"
Display Resolution 1280 x 720 (HD)
Touchscreen Electrostatic Capacitive
Apple CarPlay Yes (Wireless and Wired)
Android Auto Yes (Wireless and Wired)
Wireless Mirroring Yes (CarbitLink-EasyConnection app)
HDMI Input Yes (KCA-HD100 cable sold separately)
DAB+ Tuner Built-In (DAB antenna required, sold separately)
Bluetooth Built-In
Wi-Fi Built-In
Camera Inputs 2 (Front and Rear)
HD Rear Camera Yes (CMOS-740HD and CMOS-150HD compatible)
Parking Guidelines Yes (adjustable)
EQ 13-Band Graphic
Time Alignment Yes
RCA Preouts 3V, 3-Channel (Front, Rear, Subwoofer)
USB Charging 2.1A Max
OEM SWC Learning Yes (most Japanese and Korean vehicles)
DIN Size Double DIN

Compatible With

The DMX7525DABS is compatible with iPhones supporting CarPlay for wireless and wired Apple CarPlay, and Android smartphones supporting Android Auto for wireless and wired Android Auto. Wireless mirroring requires the CarbitLink-EasyConnection app on a compatible smartphone. HDMI mirroring requires the optional KCA-HD100 HDMI cable (sold separately) and a compatible third-party adaptor where applicable. DAB+ reception requires an optional DAB antenna (sold separately). HD rear camera requires the optional CMOS-740HD or CMOS-150HD (sold separately). The optional KCA-RCDV340 remote control is available separately.

Frequently Asked Questions

Does the DMX7525DABS support wireless CarPlay and Android Auto?

Yes. The DMX7525DABS supports both wireless and wired Apple CarPlay and wireless and wired Android Auto, allowing full smartphone integration without requiring a cable connection for compatible devices.

Does the DMX7525DABS have a built-in DAB+ tuner?

Yes. The DMX7525DABS includes a built-in DAB+ digital radio tuner. An optional DAB antenna is required and must be purchased separately.

What is the CarbitLink-EasyConnection app and how does wireless mirroring work?

CarbitLink-EasyConnection is a free app that when installed on a compatible smartphone, enables wireless screen mirroring of the phone's display on the DMX7525DABS touchscreen. This provides access to apps including Waze, YouTube, and Instagram directly from the head unit without a cable connection. Compatible with selected smartphones only.

Does the DMX7525DABS support HD rear camera display?

Yes. The rear camera input is HD-compatible, supporting the optional Kenwood CMOS-740HD and CMOS-150HD cameras at 1280x720 HD resolution. Standard AHD and CVBS cameras are also compatible.

Does the DMX7525DABS support factory steering wheel controls?

The DMX7525DABS supports direct OEM steering wheel remote control learning for most Japanese and Korean vehicles without an additional SWC interface. For other vehicles, an Aerpro or compatible SWC interface and patch lead are required and sold separately.
