Kenwood DMX7509XDS 9 Inch Floating Screen Wireless CarPlay DAB+

Kenwood DMX7509XDS 9 Inch HD 1280 x 720 Floating Panel Multimedia Receiver Wired and Wireless Apple CarPlay Wireless Android Auto Built-In DAB+ Bluetooth Wi-Fi HDMI Input Dual Camera Inputs iDatalink Maestro Ready 13-Band EQ 3V 3-Channel Pre-Out 1 DIN Chassis

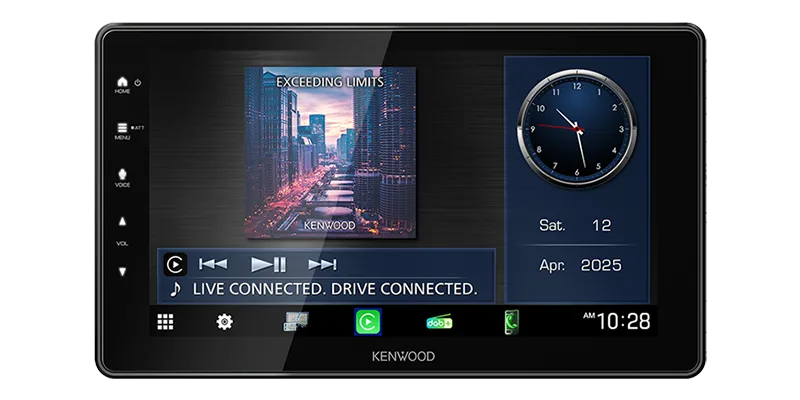

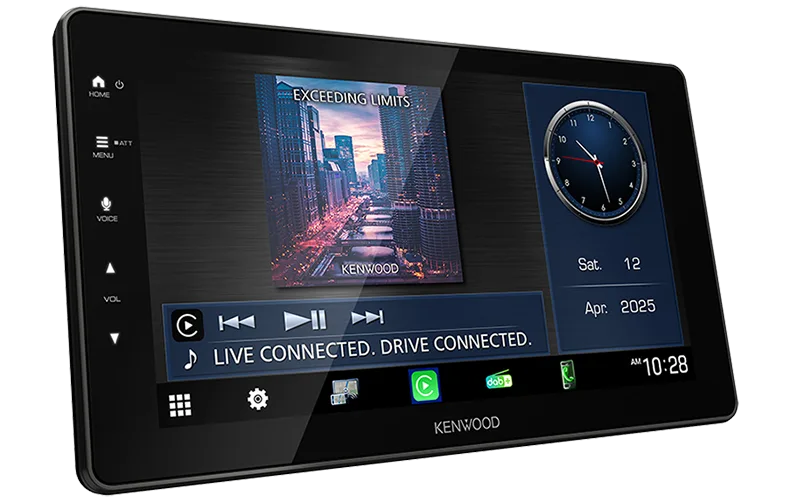

The Kenwood DMX7509XDS is a 9-inch HD floating panel multimedia receiver with a 1280 x 720 capacitive touch display, wired and wireless Apple CarPlay, wired and wireless Android Auto, built-in DAB+ digital radio, Bluetooth, and Wi-Fi. It includes an HDMI input, two camera inputs, iDatalink Maestro RR and RR2 compatibility, a 13-band graphic EQ with time alignment, and 3V 3-channel pre-out. The floating panel adjusts 360 degrees with left/right and tilt motion. 1 DIN chassis design. Security updates confirmed until at least 30 April 2028.

Product overview

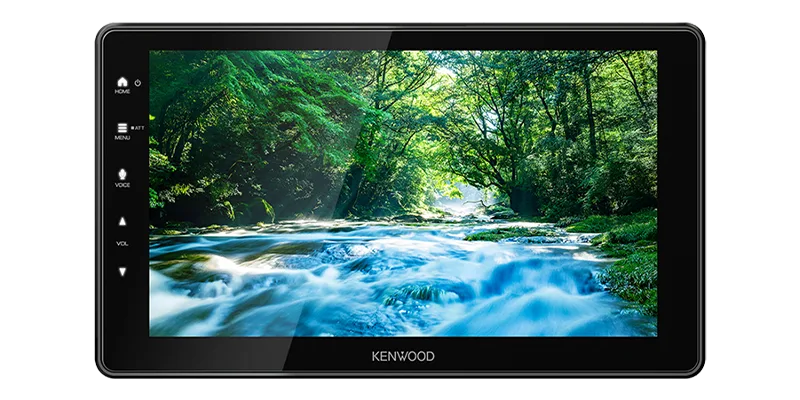

The DMX7509XDS centres on a 9-inch 1280 x 720 HD capacitive touch LCD panel with high-luminance white LED backlight and wide viewing angles. The floating panel mechanism allows 360-degree rotation and tilt adjustment so the screen can be positioned for the driver's sight line without modifying the fascia. Underneath, the chassis is 1 DIN height, making it easier to fit in vehicles with limited behind-dash space.

Apple CarPlay connects wired via USB or wirelessly over Wi-Fi. Android Auto connects the same way. Wireless smartphone mirroring is also available through the CarbitLink-EasyConnection app for compatible Android and iOS devices, allowing apps including navigation and media to display on the screen without a cable.

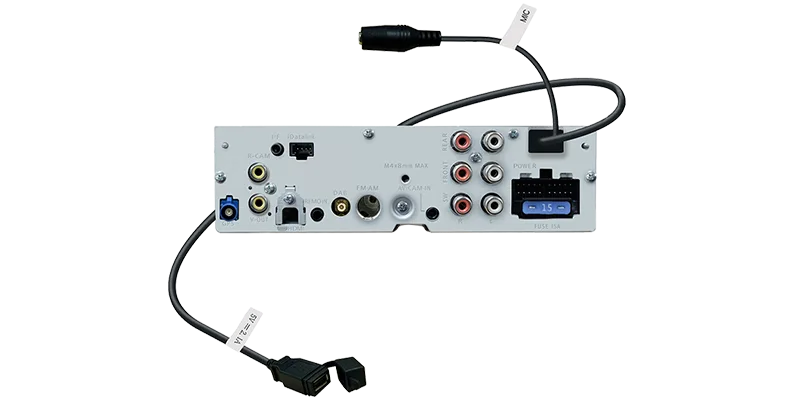

Two camera inputs allow a front and rear camera to be connected simultaneously. The rear camera input supports HD 1280 x 720 resolution from compatible cameras such as the CMOS-740HD and CMOS-150HD (sold separately). Built-in adjustable parking guidelines are included. The HDMI input connects smartphones and other HDMI devices via an optional KCA-HD200 cable (sold separately).

iDatalink Maestro RR and RR2 compatibility provides enhanced vehicle integration on supported vehicles. Direct OEM steering wheel remote control is supported on most Japanese and Korean vehicles without an adapter. The USB port delivers up to 2.1A for device charging.

Features and benefits

9-inch HD 1280 x 720 capacitive touch display: 2.4 times the resolution of a standard WVGA display, with high-luminance backlight and wide viewing angles.

360-degree adjustable floating panel: Left/right and tilt adjustment for driver-optimised screen positioning without fascia modification.

Wired and wireless Apple CarPlay: Connects via USB or Wi-Fi for hands-free iPhone control of calls, maps, and music.

Wired and wireless Android Auto: Connects via USB or Wi-Fi with a split-screen interface designed to minimise driver distraction.

Wireless smartphone mirroring: CarbitLink-EasyConnection app support for cable-free screen mirroring on compatible devices.

HDMI input: Connects smartphones and HDMI devices via optional KCA-HD200 cable (sold separately).

Built-in DAB+ digital radio tuner: No additional DAB+ module required.

Built-in Bluetooth and Wi-Fi.

Dual camera inputs: Front and rear camera connection with HD rear camera input support (1280 x 720 with compatible cameras).

Built-in adjustable parking guidelines.

iDatalink Maestro RR and RR2 ready: Enhanced vehicle integration on supported vehicles via the iDatalink Maestro interface (sold separately).

13-band graphic EQ with time alignment: Full sound tuning for custom audio configurations.

3V 3-channel pre-out: Supports connection to external amplifiers.

1 DIN chassis design: Reduced height for easier installation in vehicles with limited behind-dash space.

USB with 2.1A charging: Fast charging for compatible smartphones.

Security updates until at least 30 April 2028.

Technical specs

Frequently asked questions

Does the DMX7509XDS support wireless Apple CarPlay and wireless Android Auto? Yes. Both Apple CarPlay and Android Auto connect either wired via USB or wirelessly over Wi-Fi, with no cable required for the wireless option.

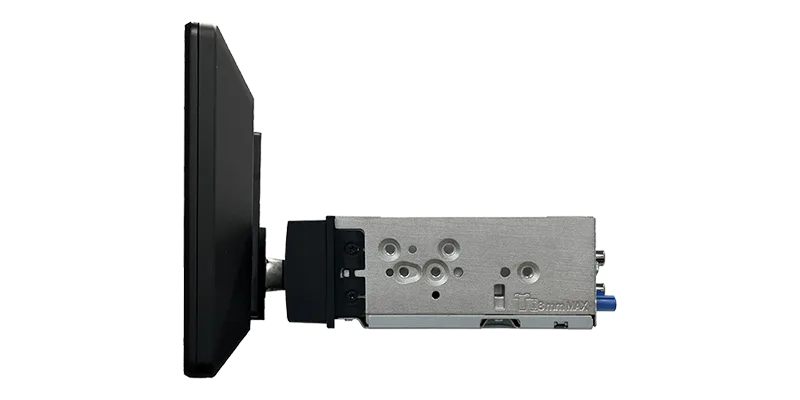

What is the floating panel mechanism and how does it adjust? The floating panel mechanism mounts the 9-inch screen separately from the 1 DIN chassis, allowing 360-degree rotation as well as left/right and tilt adjustment so the display can be angled for optimal driver viewing without altering the dash fascia.

Can the DMX7509XDS connect to two cameras at the same time? Yes. The DMX7509XDS has two camera inputs, allowing a front and rear camera to be connected simultaneously. The rear camera input supports HD 1280 x 720 resolution with compatible cameras such as the optional CMOS-740HD or CMOS-150HD.

What is iDatalink Maestro and is it included? iDatalink Maestro is a vehicle integration interface that allows the head unit to read and display factory vehicle data such as steering wheel controls, reverse camera triggers, and vehicle information on compatible vehicles. The DMX7509XDS is ready for both the Maestro RR and RR2, but the Maestro module is sold separately.

What does the 13-band graphic EQ and time alignment do? The 13-band graphic EQ allows detailed adjustment of the frequency response across 13 bands to tailor the sound to your speakers and listening preferences. Time alignment compensates for the different distances between the listener and each speaker, improving stereo imaging and soundstage accuracy.
