SKU: TBXT013

Out of stock

Kanatechs TBX-T013 Professional Install Kit to Suit Mazda CX5 2012-2017

Product features

This Install Kit Allows You to Install a Double DIN Aftermarket Headunit Into Your Vehicle and Retain Factory Bose Amp and Speakers

Features:

  • Application: Double DIN

Notes:

  • Depending on the vehicle's illumination power supply specifications, the illumination interlocking function may not work depending on the car AV to be installed. In addition, illumination may be lit up.
  • Depending on the car AV, there may be no illumination power supply, but in that case it will not be connected.
  • If the antenna power terminal on the car AV side is a terminal other than JEITA (flat terminal), use the conversion code for antenna power supply. Be sure to connect. If there is no amp remote (system remote) in car AV please connect accessory power supply. If you do not connect, you will not hear any sound.
  • When the amp remote (system remote) on the car AV side is a terminal (flat terminal) other than JEITA, use the conversion code for the antenna / amplifier remote power supply.
  • The wiring color of steering remote control code differs depending on the installed car AVI.
  • Yellow/brown - steering wheel control signal
  • Brown/black - steering wheel control ground

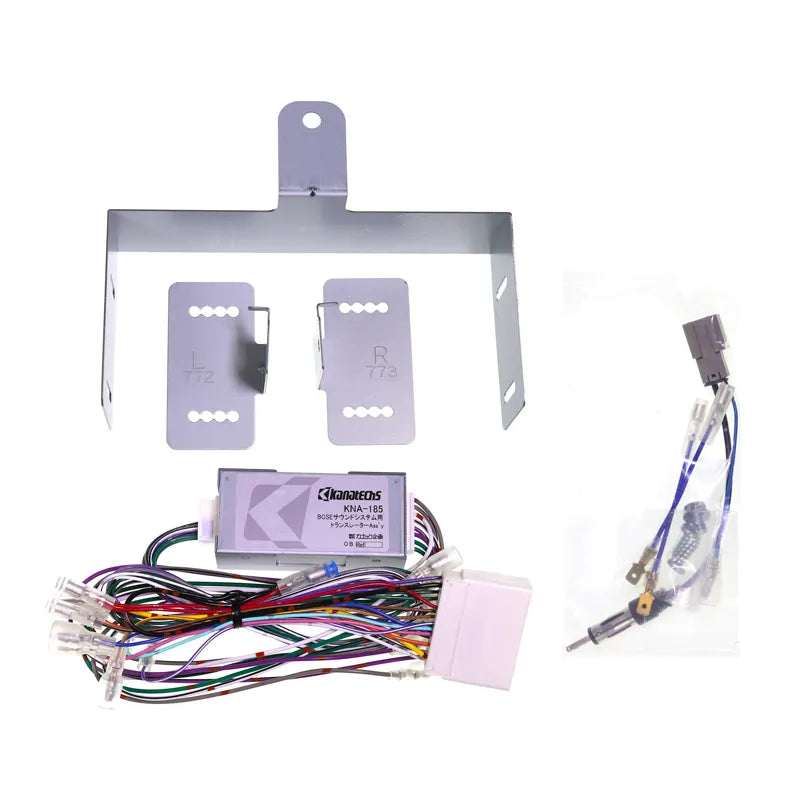

What's in the Box:

  • Metal Brackets
  • Speaker and Power Harness
  • Antenna Adapter
  • Bose Translator
  • Detailed Instructions

Vehicles Known to Work with this Product:

Mazda CX5 2012-2014

Mazda CX5 2015-2017
