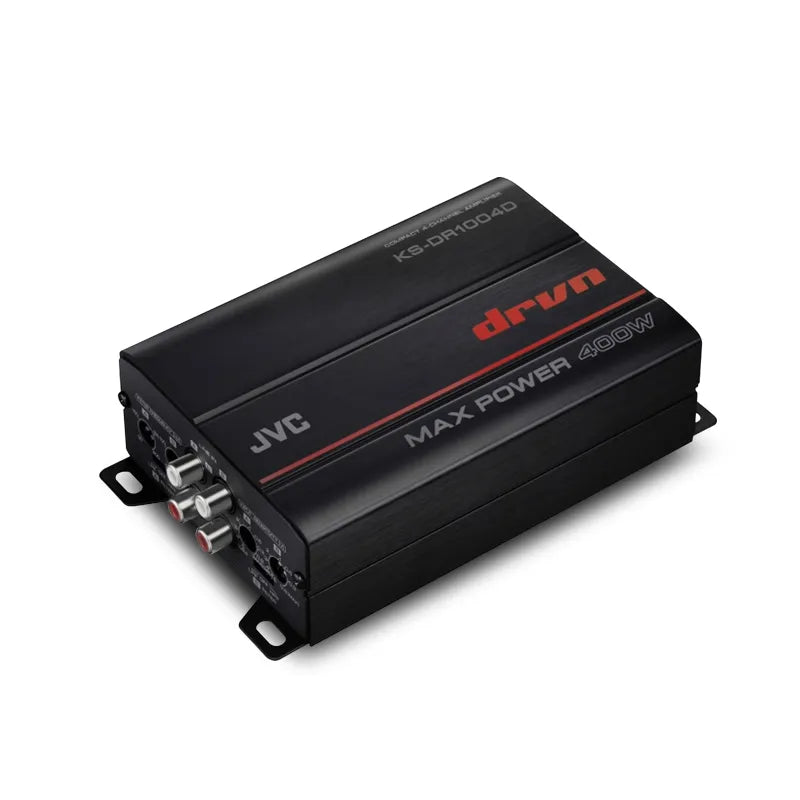

Black JVC KS-DR1004D 4-channel 400-watt compact car amplifier with multiple connection ports and a front panel featuring the JVC logo.
Black JVC KS-DR1004D 4-channel 400-watt compact car amplifier with multiple connection ports and a front panel featuring the JVC logo.
Click to open expanded view
JVC logo

JVC KS-DR1004D 4-Channel 400W Compact Amplifier for Car/Marine/UTV/Motorcycle

SKU: KSDR1004D
5.0 (1)
Sale price
$169.55
Regular price
$219
You save
23%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

JVC 4-Channel 400W Compact Amplifier: drvn Amplifiers for Marine/MotorSports

JVC 4-channel compact amplifier for compact car, marine, UTV and motorcycle / max power 400W / 45W RMS x 4 @ 4 ohms.

Versatile Application
Receivers and amplifiers for marine and motor sports applications need to perform in harsh environments exposed to outdoor elements. JVC’s marine and motor sports receivers and amplifiers feature compact size for versatile installation even in tight spaces. Conformal coated main PCBs (printed circuit boards) offer additional protection against moisture and condensation from damaging the product.

Conformal Coating
A conformal coating is a protective chemical coating to safeguard electronic circuits from harsh environments that may contain moisture or chemical contaminants. It provides a barrier to airborne contaminants from the operating environment, such as salt-spray, thus preventing corrosion.

Circuit Separation Construction
Separated circuit boards of the Pre-amp and Power-amp sections contribute to a reduction in radiation noise.

Large LPF Coil
The large LPF coil provides stable, high quality sound with no distortion even when playing at high volume.

Variable HPF & LPF
Incorporates a rotary type HPF and LPF which enables fine adjustment. Compared with fixed type switching, more precise sound adjustment is possible to match your preferences.

JVC KS-DR1004D Specifications:

  • Maximum Power Output 400W
  • RMS Power Output (4 ohm) < 1% THD 14.4V> 45W x 4 (20 - 20,000Hz)
  • RMS Power Output (2 ohm) < 1% THD 14.4V> 45W x 4 (1,000Hz)
  • RMS Power Output (Bridged 4 ohm) < 1% THD 14.4V> 90W x 2 (1,000Hz)
  • Class Class-D
  • Signal-to-Noise Ratio (reference: 1W into 4 ohms), CEA-2006 Compliant > 82dB
  • Load Impedance Allowance 2 - 8 ohms
  • HPF 50Hz - 200Hz (-12dB/oct)
  • LPF 50Hz - 200Hz (-12dB/oct)
  • RCA Input Ach L/R, Bch L/R
  • High Level Input (Speaker Level Input) Yes
  • High Level Input Auto Power Control (Signal Sensing Turn On) Yes
  • Input Sensitivity 0.2 - 5V
  • Dimensions (W x H x D) 145 x 45 x 99 mm (5-11/16" x 1-3/4" x 3-7/8")
  • Weight 0.7kg (1.5lbs)
