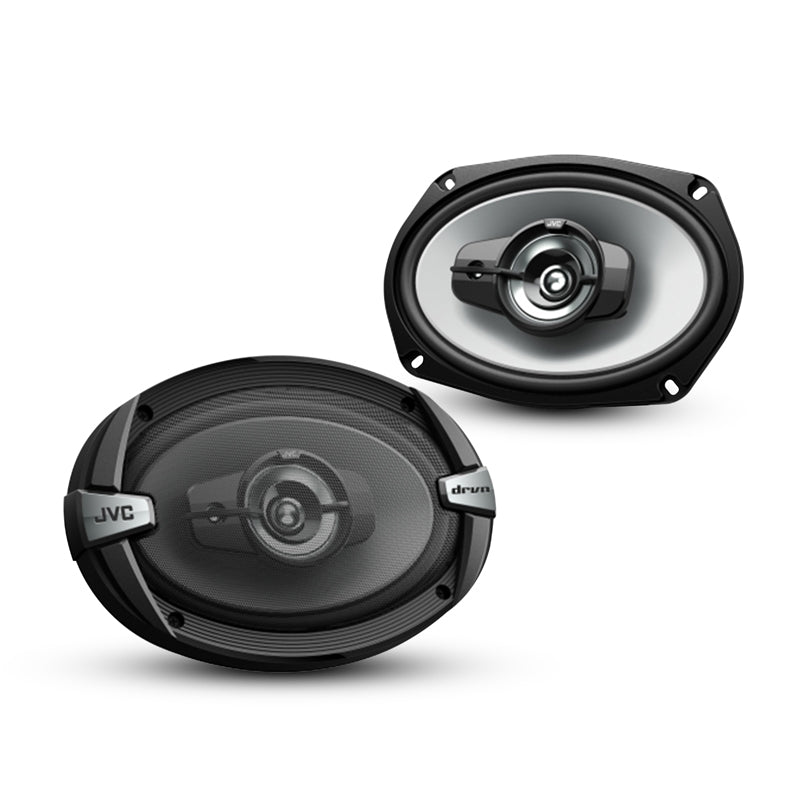

JVC CS-DR693 drvn DR Series 6x9" 500W Speakers

JVC drvn DR Series 6x9" 500W Speakers: High Output & Tough

The DR speakers are designed for JVC head-unit to produce superior directivity, dynamic sound which we call "drvn sound".

Full Cover Grill Design
Protects the woofer and tweeter in open installations.

Horn Ring Sound Enhancer
Improves mid, higher frequency sound character and reproduces life-like sound.

PP + Mica Cone
Lightweight PP + Mica Cone Material provides highly responsive, clear and undistorted sound.

JVC CS-DR693 Specifications:

Woofer

• Size 15 x 23 cm (6'' x 9'')
• Diaphragm PP
• Surround Cloth
• Magnet Ferrite

Midrange

• Size 6.6 cm (2-5/8'')
• Diaphragm Cone
• Magnet Ferrite
• Super Tweeter 1
• Size 1.5 cm (19/32'')
• Diaphragm Dome

General

• Frequency Response 54 to 18,000Hz
• Power Handling Capacity (RMS) 70W
• Power Handling Capacity (Peak Power) 500W
• Impedance 4 ohms
• Sound Pressure Level 86 dB

Weight

• Weight (w.Grille) 1.1kg (2.5lbs)
• Weight (w/o Grille) 1.0kg (2.3lbs)
• Magnet Mass 340g (12.0oz)
• Mounting Depth 79 mm (3-1/8")

FAQ

What is the mounting depth of the JVC CS-DR693?

The listed mounting depth is 79mm. Measure your door or enclosure before you order.

What impedance is the JVC CS-DR693?

It is a 4 ohm design.

Will it fit my car?

Fitment depends on the vehicle. Contact the F.A.E. team with your make, model and year and we will confirm before you order.
