JVC CS-DR622 6 Inch 2-Way Car Speakers 300W Peak 50W RMS Pair

SKU: CSDR622
Price
$89
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

JVC CS-DR622 6 Inch 2-Way Car Speakers 300W Peak 50W RMS 4 Ohm PP Cone Woofer and PEI Balanced Dome Tweeter Pair

The JVC CS-DR622 is a pair of 6-inch (16cm) 2-way car speakers rated at 300W peak and 50W RMS per speaker, with a 4-ohm impedance and 88dB sensitivity. The woofer uses a polypropylene (PP) cone with cloth surround and ferrite magnet in a steel basket. The tweeter is a 25mm PEI balanced dome. Grille holders, tapping screws, speed nuts, and speaker cords included. 12-month warranty.

Product overview

The CS-DR622 is a 6-inch (6.5-inch) 2-way speaker set suited to factory 6-inch and 6.5-inch speaker locations, which are among the most common sizes fitted in Australian passenger vehicles. The 123.6mm cutout diameter and 44mm mounting depth suit standard factory shallow mounting cavities. The polypropylene cone provides a lightweight, moisture-resistant diaphragm, while the cloth surround delivers controlled excursion across the frequency range. The 25mm PEI balanced dome tweeter extends high-frequency response to 24kHz. Sensitivity of 88dB/W at 1m is compatible with factory head unit power levels and aftermarket amplifiers.

For buyers needing a smaller speaker, the CS-DR522 5-inch version is also available.

Features and benefits

300W peak, 50W RMS per speaker: Power handling suited to factory head units and entry-level aftermarket amplifiers.

PP cone woofer with cloth surround: Lightweight, moisture-resistant cone for clean mid-bass reproduction.

25mm PEI balanced dome tweeter: Extends frequency response to 24kHz for improved high-frequency detail.

88dB sensitivity: Compatible with factory head unit power levels.

123.6mm cutout diameter, 44mm mounting depth: Suits standard 6-inch and 6.5-inch factory speaker locations.

Grilles, screws, nuts, and speaker cords included: All hardware for installation supplied in the box.

12-month warranty.

What's in the box

  • 2x CS-DR622 6-Inch 2-Way Speakers
  • 2x Grille Holders/Punching Net
  • 8x Tapping Screw F4x25
  • 8x Speed Nut F4
  • 2x Speaker Cord 0.3m
  • Sub Installation Manual with Warranty Card

Technical specs

Specification Detail
SKU CS-DR622
Brand JVC
Type 6-inch 2-way car speakers
Sold As Pair
Peak Input Power 300W per speaker
RMS Power 50W per speaker
Impedance 4 ohm
Sensitivity 88dB/W at 1m
Frequency Response 76Hz to 24kHz
Woofer Size 16cm / 6.5 inch
Woofer Diaphragm PP cone, black
Woofer Surround Cloth, black
Woofer Basket Steel, black
Woofer Magnet Ferrite F75x10, 190g
Tweeter Size 25mm balanced dome
Tweeter Diaphragm PEI, silver
Dimensions with Grille 170mm (W) x 168.5mm (H) x 71.5mm (D)
Dimensions without Grille 157.7mm (W) x 157.7mm (H) x 53mm (D)
Cutout Diameter 123.6mm (4-7/8 inch)
Height from Mounting Surface 9mm
Mounting Depth 44mm
Warranty 12 months

Frequently asked questions

What is the cutout diameter and mounting depth of the CS-DR622? The CS-DR622 requires a 123.6mm cutout diameter and has a mounting depth of 44mm. Confirm these dimensions suit your speaker location before purchasing.

What power handling does the CS-DR622 require? The CS-DR622 handles 50W RMS per speaker (300W peak). The 88dB sensitivity means these speakers perform well with factory head unit power levels and suit entry-level aftermarket amplifiers.

What is included in the box? The box contains two speakers, two grille holders, eight tapping screws, eight speed nuts, two 0.3m speaker cords, and a sub installation manual with warranty card.

Are these compatible with factory head units? Yes. The 4-ohm impedance and 88dB sensitivity are compatible with standard factory head unit outputs without amplification.

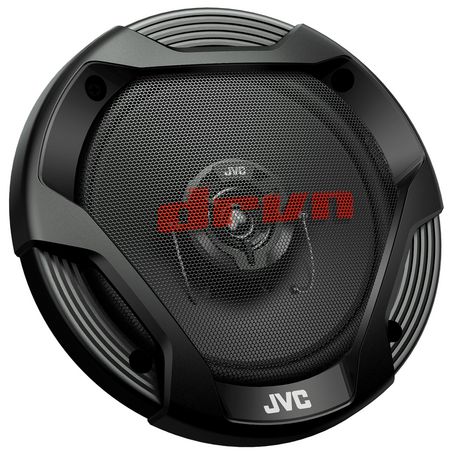

Do the CS-DR622 speakers come with grilles? Yes. Grille holders and punching net grilles are included for both speakers.
