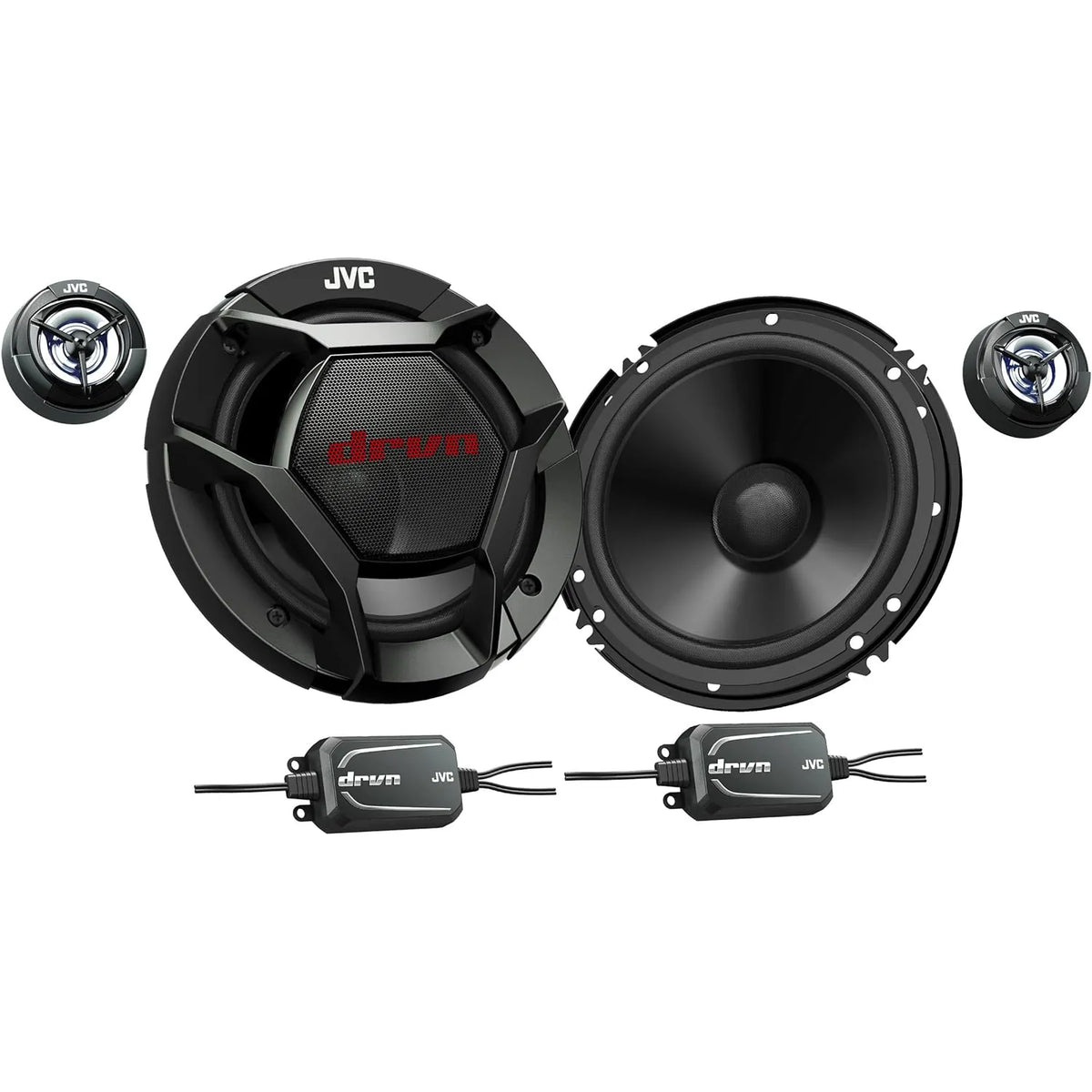

JVC CS-DR601C DRVN Series 6.5" 360W Shallow-Mount Component Speaker System

SKU: CSDR601C
Price
$83.91
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
JVC CS-DR601C car speakers

JVC CS-DR601C DRVN Series 6.5" 360W Shallow-Mount Component Speaker System

$83.91

Product features

JVC DRVN Series 6.5" 360W Shallow-Mount Component Speaker System: Slim-Profile Speakers Offer Strong Performance With Good Power Handling!

Balanced Neodymim Tweeter
It provides a detailed high-range and smooth mid-range.

Great Factory Replacement
Installable vehicle types are greatly increased thanks to their shorter height.

Wide Opening Grill
The grill’s opening ratio is 30% wider than the conventional model, enabling increased durability and clear sound.

Dimensions

JVC CS-DR601C Features:

  • Carbon Mica Cone: Robust and lightweight carbon mica material provides highly responsive, clear, and undistorted reproduction.
  • Hybrid Surround: Rubber-coated cloth with increased mobility enables high efficiency and improved follow-up to audio signals.
  • Small Design Tweeter Cover: A newly developed small cover significantly reduces areas that interfere with the woofer cone. High-quality sound is assured.

JVC CS-DR601C Specifications:

  • Woofer:
    Size: 16cm (6.5'')
    Diaphragm: Carbon Mica Cone
    Surround: Hybrid Surround (Rubber & Cloth)
    Magnet: Ferrite
  • Tweeter:
    Size" 2.5cm (1'')
    Type: Separate Type, Unit: Balanced
    Diaphragm: Poly-Ether Imide
    Magnet: Neodymium
  • General:
    Power Handling Capacity, Peak: 360W
    Power Handling Capacity, RMS: 60W
    Impedance: 4Ω
    Sound Pressure Level: 88dB
    Frequency Response: 76 to 24,000Hz
    Magnet Mass: 285g (10oz)
    Mounting Depth: 56.5 mm (2-1/4")
    Weight: 2.17kg

FAQ

How much power can the JVC CS-DR601C handle?

It is rated at 360W peak and 60W RMS.

What is the mounting depth of the JVC CS-DR601C?

The listed mounting depth is 56.5mm. Measure your door or enclosure before you order.

What impedance is the JVC CS-DR601C?

It is a 4 ohm design.

Will it fit my car?

Fitment depends on the vehicle. Contact the F.A.E. team with your make, model and year and we will confirm before you order.
