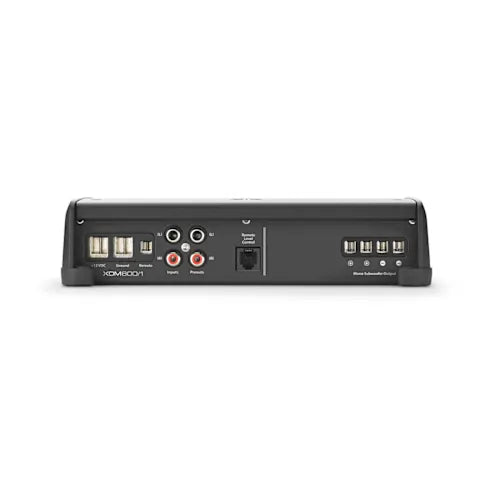

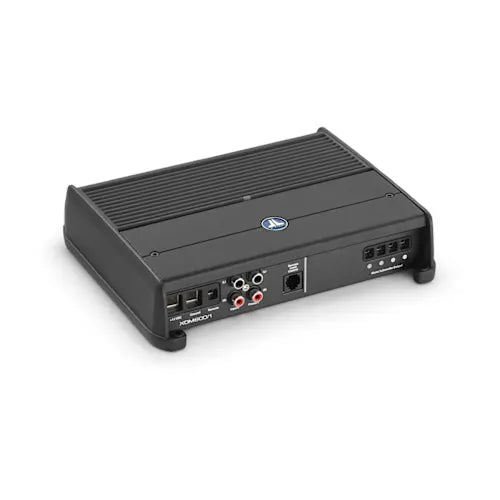

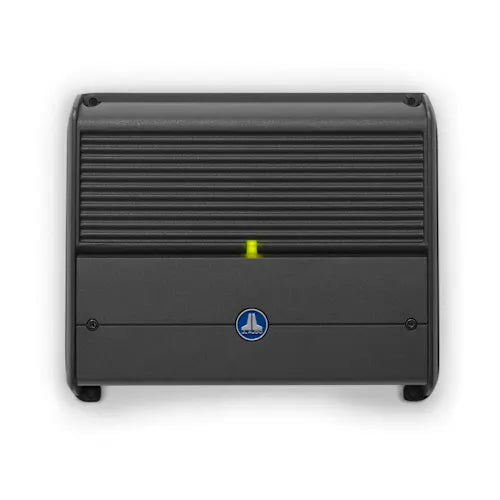

JL Audio JLA-010-03116-00 XDM600 Monoblock Car and Marine Subwoofer Amplifier

Premium Class D subwoofer amplification engineered for marine and automotive applications where power meets durability.

Product Overview

The JL Audio XDM600 monoblock amplifier represents JL Audio's commitment to marine-grade power delivery in a compact, efficient Class D platform. Delivering 600W RMS at 2Ω and 400W at 4Ω, this dedicated subwoofer amplifier drives deep bass with authority while maintaining exceptionally low distortion below 1% THD. The marine-rated construction handles Australian coastal conditions, wet bilges, and dusty 4WD environments with equal confidence.

Designed for single-subwoofer installations where space is limited but performance isn't negotiable, the XDM600 features variable low-pass filtering (50Hz-500Hz) with selectable 12dB or 24dB/octave slopes, plus a defeatable 30Hz infrasonic filter to protect drivers from damaging subsonic frequencies. At just 216mm wide and 2.86kg, it mounts easily in boats, utes, caravans, or behind seats where traditional amplifiers won't fit.

Key Specifications

• Monoblock Class D amplifier optimised for subwoofer duty
• Maximum rated power: 600W RMS at 2Ω (14.4V input, <1% THD)
• Power at 4Ω load: 400W RMS (14.4V input, <1% THD)
• Power at 2Ω load (battery voltage): 500W RMS (12.5V input, <1% THD)
• Power at 4Ω load (battery voltage): 300W RMS (12.5V input, <1% THD)
• Frequency response: 7Hz-500Hz (+0, -1dB)
• Signal-to-noise ratio: >87dB (A-weighted, 20Hz-20kHz, referred to rated power)
• Signal-to-noise ratio: >67dB (A-weighted, 20Hz-20kHz, referred to 1W)
• Operating voltage: 11-14.5 VDC (12V systems only)
• Damping factor: >1000 @ 4Ω, 50Hz / >500 @ 2Ω, 50Hz
• THD+N: <1% @ rated power, 2Ω per channel
• Input voltage range: 200mV-4V RMS via RCA inputs
• Filter mode: Off or Low-Pass only
• Filter slope: 12dB/octave or 24dB/octave (selectable)
• Filter frequency range: 50Hz-500Hz
• Infrasonic filter: 30Hz, defeatable
• Dimensions: 216mm (W) × 180mm (D) × 52mm (H)
• Weight: 2.86kg
• Fuse rating: 50A (AFS, AGU or MaxiFuse™ recommended)
• Minimum power/ground wire: 4 AWG copper
• Buffered pass-through preamp outputs
• Compatible with optional HD-RLC or MHD-RLC (water-resistant) remote level control
• Marine-rated construction suitable for wet/harsh environments
• 3-year manufacturer warranty

Features & Benefits

Variable Low-Pass Filtering (50Hz-500Hz)
Dial in precise crossover points to match your subwoofer's characteristics and cabin acoustics. Selectable 12dB or 24dB/octave slopes provide flexibility for sealed or ported enclosures, ensuring smooth integration with front-stage speakers without overlap or gaps in frequency response.

Defeatable 30Hz Infrasonic Filter
Protects subwoofer drivers from destructive subsonic content below audible range—critical when running ported enclosures near tuning frequency or when playing bass-heavy tracks with subsonic rumble. Defeat when running sealed enclosures for maximum low-end extension.

Marine-Rated Class D Topology
Conformal-coated circuit boards and marine-grade construction resist moisture, salt spray, and corrosion. Ideal for tinnie fishing setups, ski boats, wakeboard towers, caravan installations exposed to rain ingress, or 4WD dual-battery systems subjected to dust and vibration across corrugated tracks.

Compact, Efficient Footprint
At 216mm × 180mm × 52mm and just 2.86kg, the XDM600 delivers serious subwoofer power without monopolising installation space. Class D efficiency reduces heat generation, enabling mounting behind seats, under false floors, or in shallow bilge areas where traditional Class AB amplifiers would overheat.

High Damping Factor (>1000 @ 4Ω)
Tight electrical control over subwoofer cone motion delivers punchy, articulate bass with minimal overhang—critical for reproducing kick drums, bass guitar, and electronic music with precision. The high damping factor ensures transient response remains crisp even during demanding passages.

Optional Water-Resistant Remote Level Control
Add JL Audio's HD-RLC or MHD-RLC (not included) to adjust subwoofer output from the helm, driver's seat, or caravan dinette. Essential for compensating between moored listening and underway conditions, or between solo driving and loaded touring configurations.

Buffered Pass-Through Preamp Outputs
Daisy-chain additional amplifiers for multi-sub or full-range expansion without signal degradation. The buffered output maintains voltage consistency regardless of downstream impedance, ensuring predictable system performance as installations grow.

Technical Specs

• Amplifier class: Class D
• Channels: 1 (Monoblock)
• Operating voltage: 11-14.5 VDC (12V models only - NOT 24V compatible)

Power Output (varies by voltage and load impedance):

• Maximum rated power (14.4V @ 2Ω, <1% THD): 600W × 1
• Power at 4Ω load (14.4V @ 4Ω, <1% THD): 400W × 1
• Power on battery voltage (12.5V @ 2Ω, <1% THD): 500W × 1
• Minimum power output (12.5V @ 4Ω, <1% THD): 300W × 1
• Signal-to-noise ratio (A-weighted, 20Hz-20kHz, referred to rated power): >87dB
• Signal-to-noise ratio (A-weighted, 20Hz-20kHz, referred to 1W): >67dB
• Damping factor @ 4Ω: >1000 @ 50Hz
• Damping factor @ 2Ω: >500 @ 50Hz
• THD+N @ rated power: <1% @ 2Ω per channel
• Frequency response (+0, -1dB): 7Hz-500Hz
• Input voltage range @ RCA inputs: 200mV-4V RMS
• Filter mode: Off or Low-Pass only
• Filter slope: 12dB/octave or 24dB/octave (selectable)
• Filter frequency range: 50Hz-500Hz
• Infrasonic filter: 30Hz, defeatable
• Detented, calibrated filter potentiometers: Yes
• Buffered pass-through preamp output: Yes
• Remote level control compatibility: Optional HD-RLC or MHD-RLC (water-resistant)
• Recommended fuse type: AFS, AGU or MaxiFuse™
• Fuse rating: 50A
• Minimum copper power/ground wire gauge: 4 AWG
• Physical dimensions (W × D × H): 216mm × 180mm × 52mm (8.52" × 7.09" × 2.05")
• Weight: 2.86kg (6.3 lbs)
• Warranty: 3 years

Important Note: This is the 12V model. The XDM series also includes 24V variants (6-channel and 8-channel only) for commercial/heavy vehicle applications - this monoblock 600W model operates on 12V systems exclusively.

Compatible With / Goes Well With

Subwoofer Recommendations:

• JL Audio Marine M6 or M3 10" or 12" subwoofers (300W-600W RMS continuous)
• Sealed or ported enclosures up to 600W RMS handling
• Shallow-mount subwoofers for space-constrained marine or automotive installations

Installation Accessories:

• 4 AWG amplifier wiring kit with 50A+ inline fuse holder
• JL Audio HD-RLC or MHD-RLC water-resistant remote level control
• Marine-grade speaker wire (14-16 AWG recommended for subwoofer runs)
• RCA interconnect cables with marine-grade shielding
• Sound deadening material for enclosure mounting surfaces

System Compatibility:

• Marine head units with preamp outputs (2V-4V recommended)
• Aftermarket head units with dedicated subwoofer preouts
• Line output converters for OEM integration
• Dual-battery systems with adequate alternator capacity (90A+ recommended)

Caution: Verify your subwoofer's impedance (2Ω or 4Ω) and power handling capacity before connection. Running a 4Ω sub will yield 400W; a 2Ω load delivers full 600W output. Ensure adequate alternator capacity and battery reserve for sustained high-output operation.

Weight

2.86kg (6.3 lbs)

Frequently Asked Questions

Will this amplifier fit behind my boat's helm seat or under a ute tub liner?
At 216mm × 180mm × 52mm, the XDM600 fits most shallow-mount locations. Ensure 50mm clearance above the unit for heat dissipation and verify mounting depth accommodates wire terminals.

Can I run two subwoofers with this monoblock amplifier?
Yes, if wired correctly. Wire two 4Ω subs in parallel for 2Ω total load (600W shared) or two 2Ω subs in series for 4Ω total (400W shared). Do not wire two 2Ω subs in parallel—this creates a 1Ω load that risks amplifier damage.

Is the marine rating suitable for saltwater boating environments?
Yes. Conformal-coated circuit boards resist salt spray, moisture, and corrosion. Mount away from direct water streams or bilge flooding. Pair with marine-grade wiring and heat-shrink connections for long-term reliability in coastal conditions.

What size power wire and fuse do I need for installation?
Minimum 4 AWG copper power and ground wire with a 50A fuse (AFS, AGU, or MaxiFuse™) installed within 45cm of battery positive terminal. Use marine-grade tinned copper wire for saltwater applications to prevent corrosion. This 12V model requires standard automotive/marine electrical systems (11-14.5 VDC).

How do I set the low-pass filter and infrasonic filter correctly?
Start with low-pass filter at 80Hz (12dB slope) and infrasonic filter engaged. Adjust low-pass upward if bass sounds thin or downward if vocals sound muddy. Switch to 24dB slope for ported enclosures. Disengage infrasonic filter only if running sealed enclosures and experiencing bass roll-off.
