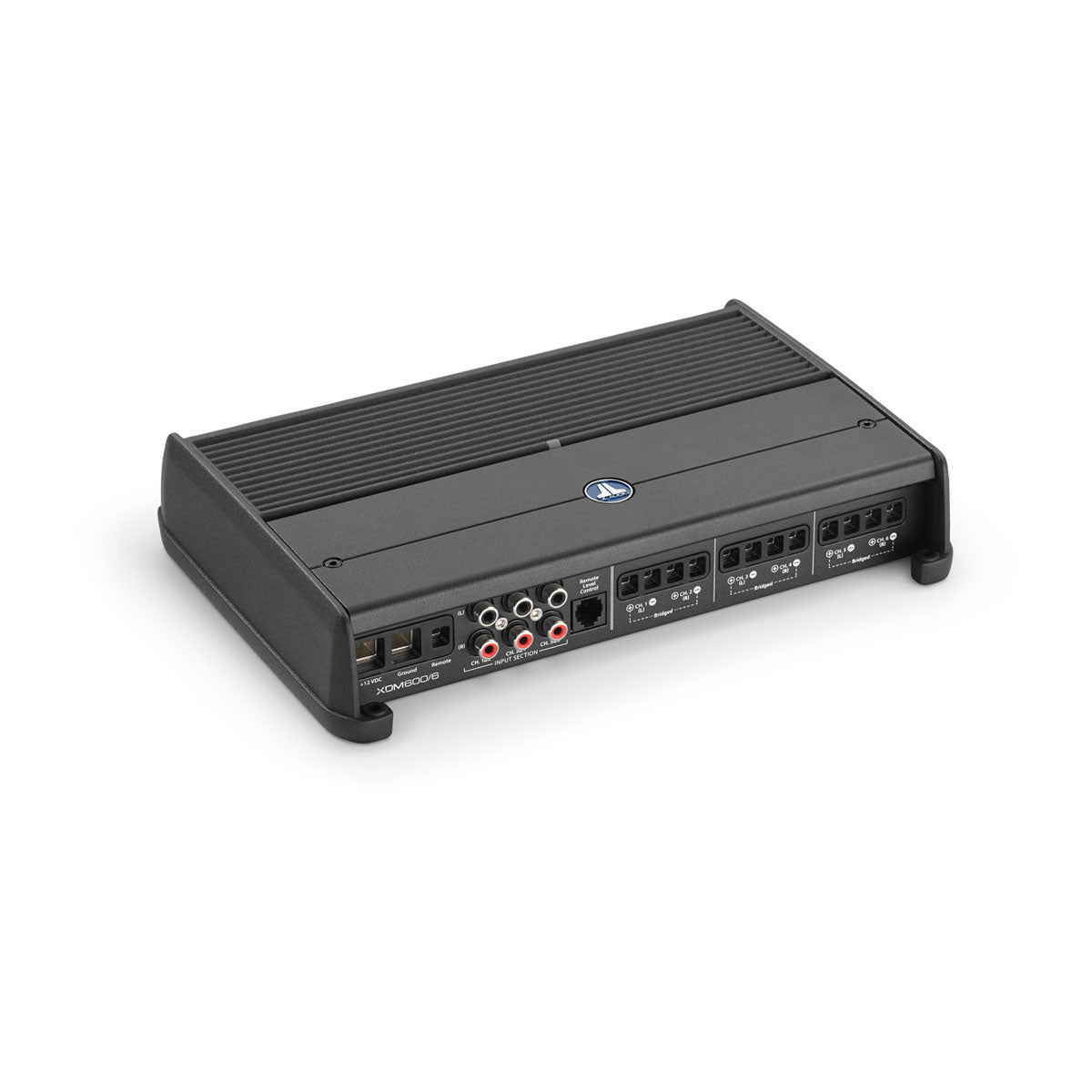

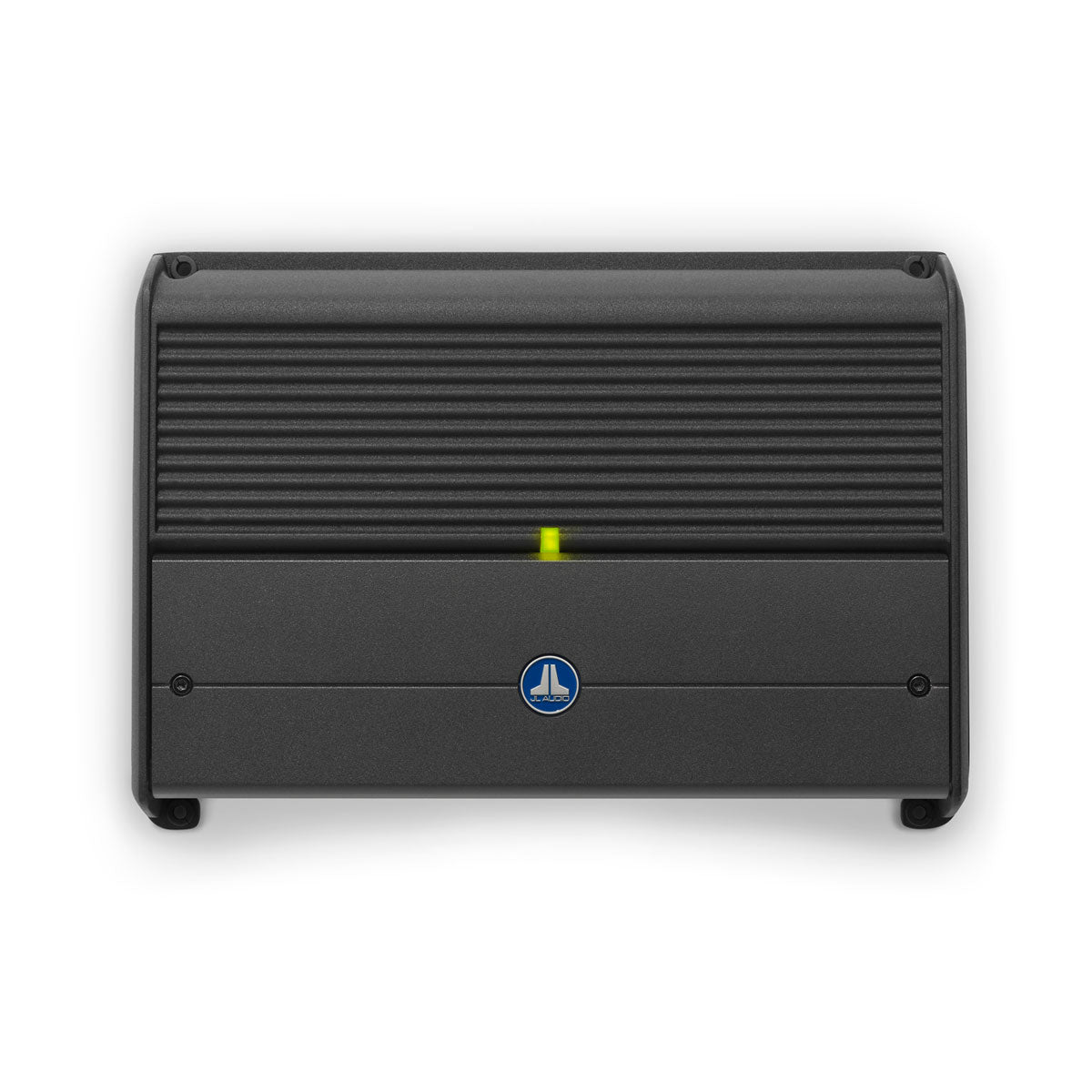

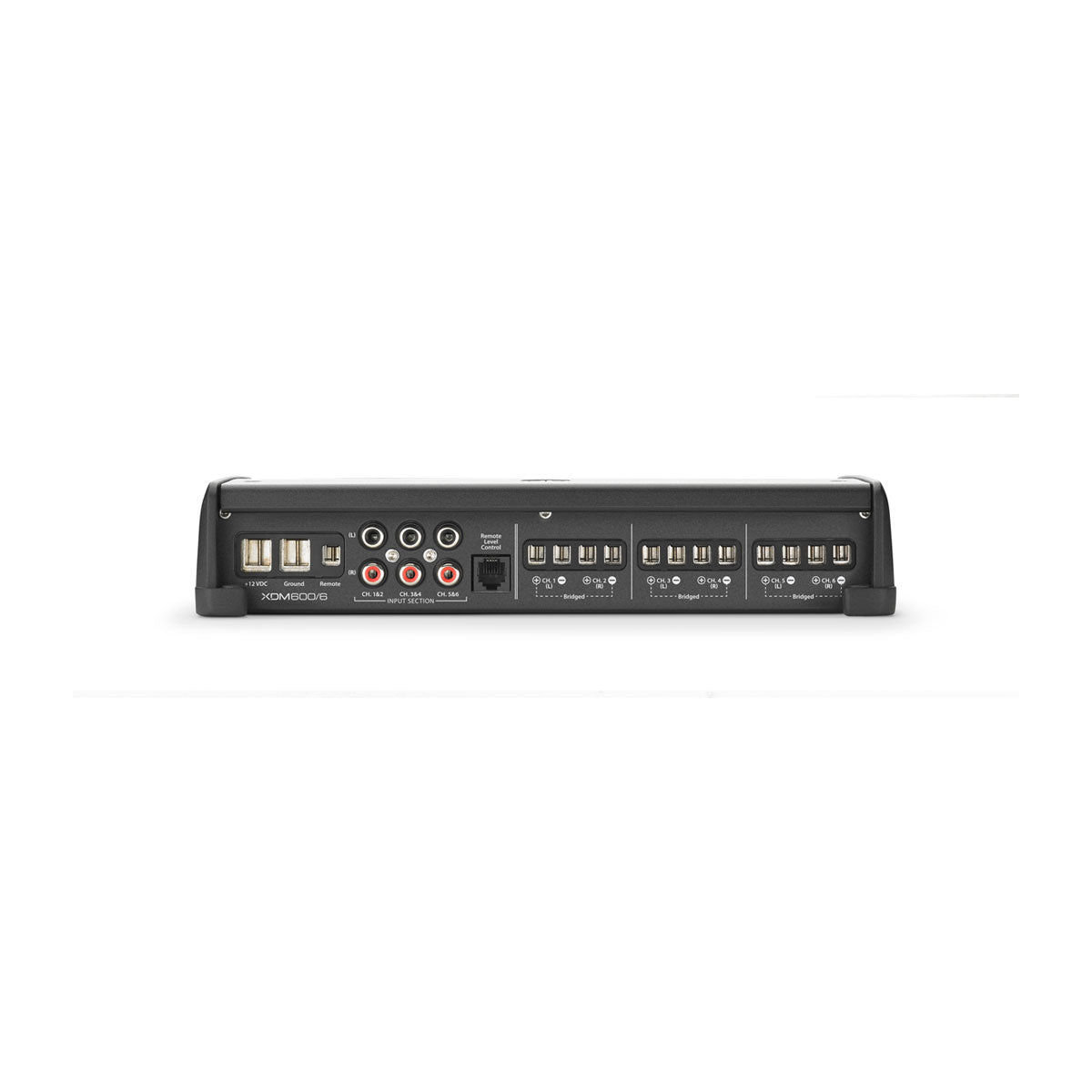

JL Audio JLA-010-03117-00 XDM600/6 6-Channel Marine Amplifier

Versatile 6-channel Class D amplification engineered for complete marine and automotive multi-zone audio systems.

Product Overview

The JL Audio XDM600/6 6-channel amplifier delivers comprehensive full-range amplification for multi-zone marine installations, automotive touring setups, and enthusiast builds requiring complete speaker control from a single chassis. With 100W RMS per channel at 2Ω (600W total) or 75W per channel at 4Ω (450W total), this marine-rated Class D platform drives cabin speakers, cockpit zones, tower speakers, and helm areas independently. The 12V design integrates seamlessly into standard automotive and marine electrical systems while the conformal-coated construction withstands Australia's harshest coastal conditions, bilge moisture, and dusty 4WD environments.

Built on JL Audio's proven XDM architecture, the 6-channel configuration enables sophisticated system design: run all six channels independently for maximum zone control, bridge adjacent pairs for 200W output to demanding tower speakers or compact subwoofers, or create staggered-power configurations with bridged front channels and unbridged rear fill. Variable filtering on all three channel banks (channels 1&2, 3&4, 5&6) with 50Hz-500Hz range and 12dB/octave slopes accommodates different speaker types and mounting locations. At 260mm wide with a 50A fuse rating and 2.63kg weight, the XDM600/6 represents the ideal multi-zone amplification solution for Australian marine enthusiasts, ski boat owners, and 4WD tourers.

Key Specifications

• 6-channel Class D amplifier optimised for full-range multi-zone applications
• Maximum rated power (14.4V @ 2Ω, <1% THD): 100W RMS × 6 channels (600W total)
• Power at 4Ω load (14.4V @ 4Ω, <1% THD): 75W RMS × 6 channels (450W total)
• Bridged power (14.4V @ 4Ω, <1% THD): 200W RMS × 3 channels (600W total bridged)
• Power at 2Ω load (12.5V @ 2Ω, <1% THD): 90W RMS × 6 channels (540W total)
• Power at 4Ω load (12.5V @ 4Ω, <1% THD): 60W RMS × 6 channels (360W total)
• Bridged power (12.5V @ 4Ω, <1% THD): 180W RMS × 3 channels (540W total bridged)
• Operating voltage: 11-14.5 VDC (12V systems only)
• Frequency response: 12Hz-22kHz (+0, -1dB)
• Signal-to-noise ratio: >104dB (A-weighted, 20Hz-20kHz, referred to highest rated power)
• Signal-to-noise ratio: >84dB (A-weighted, 20Hz-20kHz, referred to 1W)
• Damping factor @ 4Ω: >150 @ 50Hz
• Damping factor @ 2Ω: >75 @ 50Hz
• THD+N: <1% @ rated power, 2Ω per channel
• Input voltage range: Not specified for 6-channel (other multi-channel models: 200mV-4V RMS)
• Filter modes (Channels 1&2, 3&4, 5&6): Off, Low-Pass, or High-Pass
• Filter slope: 12dB/octave
• Filter frequency range: 50Hz-500Hz
• Detented, calibrated filter potentiometers: Yes
• Buffered pass-through preamp outputs: Not specified for 6-channel
• Dimensions: 260mm (W) × 180mm (D) × 52mm (H)
• Weight: 2.63kg (5.8 lbs)
• Fuse rating: 50A (AFS, AGU or MaxiFuse™ recommended)
• Minimum power/ground wire: 4 AWG copper
• Remote level control: Optional HD-RLC or MHD-RLC (water-resistant)
• Marine-rated construction suitable for wet/harsh environments
• 3-year manufacturer warranty

Features & Benefits

6-Channel Multi-Zone Flexibility
Drive complete audio systems from a single amplifier installation. Allocate channels strategically: four channels for cabin coaxials, two bridged pairs for tower speakers at 200W each, or six channels for full cabin coverage with independent zone control. Perfect for ski boats requiring cockpit, cabin, and tower zones, or 4WD tourers with front cabin, rear cargo, and rooftop speaker zones. Eliminates the complexity and wiring bulk of multiple smaller amplifiers while providing professional-grade zone control.

12V Standard Electrical Integration
Designed for conventional 12V automotive and marine electrical systems (11-14.5V operating range). Integrates directly into factory or aftermarket head unit systems without voltage converters or special infrastructure. The 50A fuse rating and 4 AWG wire compatibility match standard marine and automotive electrical practices, simplifying professional installations and DIY builds alike. Compatible with AGM, lithium, or standard flooded batteries common in Australian recreational vehicles and vessels.

Independent Channel Control with Bridge Capability
Run all six channels independently at 75-100W each for maximum zone control, or bridge adjacent pairs (1+2, 3+4, 5+6) for three outputs at 200W each. Bridge mode suits high-output tower speakers, marine subwoofers, or demanding full-range speakers requiring more power than single-channel output. Mix configurations within the same installation: four unbridged channels for cabin speakers plus one bridged pair for subwoofer duty, providing system design flexibility without multiple amplifiers.

Marine-Rated Class D Topology
Conformal-coated circuit boards resist salt spray, bilge moisture, and the corrosive environments encountered in Australian coastal boating, offshore fishing, and beach-launched vessels. The robust construction handles tropical humidity in Far North Queensland waters, dusty corrugated tracks in the Outback, and Southern Ocean conditions off Tasmania. Class D efficiency minimizes heat generation, enabling reliable operation in poorly ventilated equipment bays, under seats, or in enclosed amplifier racks without thermal shutdown.

Variable Filtering Across All Three Channel Banks
Precision crossover control on channels 1&2, 3&4, and 5&6 allows speaker-specific tuning. High-pass filter cabin speakers to remove low-frequency strain and improve clarity, low-pass subwoofer channels for dedicated bass reproduction, or run full-range where needed. The 12dB/octave slopes and 50Hz-500Hz continuously variable range accommodate marine coaxials, component speakers, tower speakers, and compact subwoofers. Detented potentiometers enable repeatable settings across similar installations—critical for professional installers servicing multiple boats.

Compact Chassis with Professional-Grade Heat Management
At 260mm (10.23") wide and just 2.63kg, the XDM600/6 fits shallow-mount locations behind helm panels, under seats, or in equipment bays where larger amplifiers won't fit. The efficient Class D topology and well-designed heat sink maintain stable operation across all six channels simultaneously, even during extended listening sessions at anchor, beach parties, or long-distance highway touring. The compact footprint doesn't compromise thermal performance—essential for sustained full-power operation.

Optional Water-Resistant Remote Control
Add JL Audio's HD-RLC or MHD-RLC (not included) to adjust system volume from the helm, driver's seat, or entertainment area. Essential for marine applications where the amplifier is mounted in inaccessible equipment bays, or automotive installations where the amp is hidden behind panels. The remote provides convenient master volume control without accessing the installation location, perfect for recreational boaters and touring enthusiasts.

Technical Specs

• Amplifier class: Class D
• Channels: 6 (Full-range)
• Operating voltage: 11-14.5 VDC (12V models only - NOT 24V compatible)

Power Output (varies by voltage and load impedance):

• Maximum rated power (14.4V @ 2Ω, <1% THD): 100W RMS × 6 (600W total)
• Power at 4Ω load (14.4V @ 4Ω, <1% THD): 75W RMS × 6 (450W total)
• Bridged power (14.4V @ 4Ω, <1% THD): 200W RMS × 3 (600W total bridged)
• Power at 2Ω load (12.5V @ 2Ω, <1% THD): 90W RMS × 6 (540W total)
• Power at 4Ω load (12.5V @ 4Ω, <1% THD): 60W RMS × 6 (360W total)
• Bridged power (12.5V @ 4Ω, <1% THD): 180W RMS × 3 (540W total bridged)
• Frequency response (+0, -1dB): 12Hz-22kHz
• Signal-to-noise ratio (A-weighted, 20Hz-20kHz, referred to highest rated power): >104dB
• Signal-to-noise ratio (A-weighted, 20Hz-20kHz, referred to 1W): >84dB
• Damping factor @ 4Ω: >150 @ 50Hz
• Damping factor @ 2Ω: >75 @ 50Hz
• THD+N @ rated power: <1% @ 2Ω per channel
• Filter modes (Channels 1&2, 3&4, 5&6): Off, Low-Pass, or High-Pass
• Filter slope: 12dB/octave
• Filter frequency range: 50Hz-500Hz (continuously variable)
• Detented, calibrated filter potentiometers: Yes
• Remote level control compatibility: Optional HD-RLC or MHD-RLC (water-resistant)
• Recommended fuse type: AFS, AGU or MaxiFuse™
• Fuse rating: 50A
• Minimum copper power/ground wire gauge: 4 AWG
• Physical dimensions (W × D × H): 260mm × 180mm × 52mm (10.23" × 7.09" × 2.05")
• Weight: 2.63kg (5.8 lbs)
• Warranty: 3 years

Important Note: This is the 12V model. The XDM series also includes a 24V 6-channel variant (XDM600/6-24V) for commercial/heavy vehicle applications—this model operates on standard 12V automotive/marine electrical systems only.

Compatible With / Goes Well With

Speaker Recommendations:

• Marine coaxial speakers rated 75-100W RMS (6", 6.5", 6×9", or 7.7" sizes)
• Marine component speaker systems rated 75-100W RMS per channel
• Marine tower speakers rated 150-200W RMS per speaker (when bridged)
• Compact marine subwoofers rated 200W RMS (when using bridged channel pairs)
• Full-range cabin speakers for multi-zone installations

Installation Accessories:

• 4 AWG amplifier wiring kit with 50A+ inline fuse holder
• JL Audio HD-RLC or MHD-RLC water-resistant remote level control
• Marine-grade speaker wire (14-16 AWG recommended for most runs)
• RCA interconnect cables with marine-grade shielding (minimum 6-channel distribution)
• Distribution blocks for clean power/ground distribution
• Heavy-duty amplifier mounting brackets or marine-rated equipment racks
• Sound deadening material for mounting surfaces

System Compatibility:

• Marine head units with 4V preamp outputs (6-channel preamp output or DSP required)
• Aftermarket head units with 6-channel preamp capability
• Marine DSP processors with 6-channel output
• Line output converters with 6-channel capability for factory radio integration
• 12V electrical systems with adequate alternator capacity (90A+ recommended)

Electrical System Requirements:

• Minimum 90A alternator capacity for sustained full-power operation
• Adequate battery reserve (AGM or lithium recommended for extended engine-off listening)
• Proper grounding with dedicated ground point to chassis/hull
• 4 AWG power and ground wiring with proper routing and protection

Caution: Six-channel systems require careful planning. Ensure your head unit or DSP provides six independent preamp outputs. Verify speaker impedances before bridging channels—bridged operation requires 4Ω minimum load per bridged pair. Running all six channels at maximum power simultaneously demands robust electrical infrastructure including high-output alternator, proper wiring gauge, and adequate battery capacity.

Weight

2.63kg (5.8 lbs)

Frequently Asked Questions

Can I run this amplifier with a standard aftermarket head unit?
Only if your head unit or DSP provides six independent preamp outputs. Most standard head units offer 2-4 channels of preamp output—you'll need a 6-channel DSP or signal processor to feed all channels. Alternatively, use a marine source unit with 6-channel capability or run the amplifier with fewer active channels.

Can I bridge channels for higher power to tower speakers or subwoofers?
Yes. Bridge adjacent channel pairs (1+2, 3+4, 5+6) for 200W RMS per bridged pair at 4Ω load. This provides three bridged outputs at 200W each, ideal for marine tower speakers or compact subwoofers. Ensure speakers are rated for 4Ω minimum impedance when bridging. You can also mix configurations: bridge two pairs, leave two channels unbridged.

What size alternator do I need to run all six channels at full power?
Minimum 90A alternator for sustained full-power operation. At maximum output (600W), the amplifier draws approximately 60-65A from the electrical system. Factor in other electrical loads (navigation, pumps, lights) and ensure your alternator provides adequate reserve capacity. Undersized alternators cause voltage drop and potential thermal protection shutdown.

Can I use this in a ski boat with tower speakers and cabin speakers?
Yes, perfect application. Bridge channels 1+2 and 3+4 for 200W × 2 to tower speakers, use channels 5&6 unbridged for 75W × 2 to cabin speakers. Alternatively, run all six channels unbridged for complete cabin/cockpit coverage at 75-100W per zone. The variable filtering allows precise tuning for different speaker types and mounting locations.

How do I set up independent zone control for different areas?
Use channels 1&2 for Zone 1 (cabin), 3&4 for Zone 2 (cockpit/tower), and 5&6 for Zone 3 (rear/helm). The optional HD-RLC remote controls master volume. For true zone-independent control, install separate zone controllers or use a DSP with zone management feeding the amplifier. The three independent filter banks allow different crossover settings per zone.
