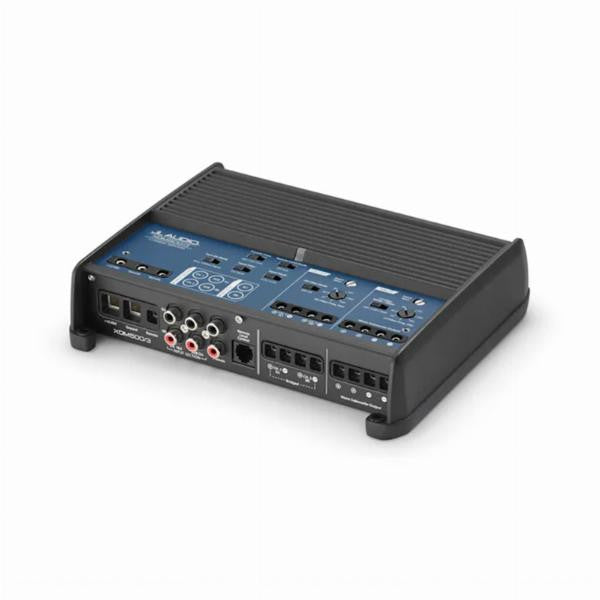

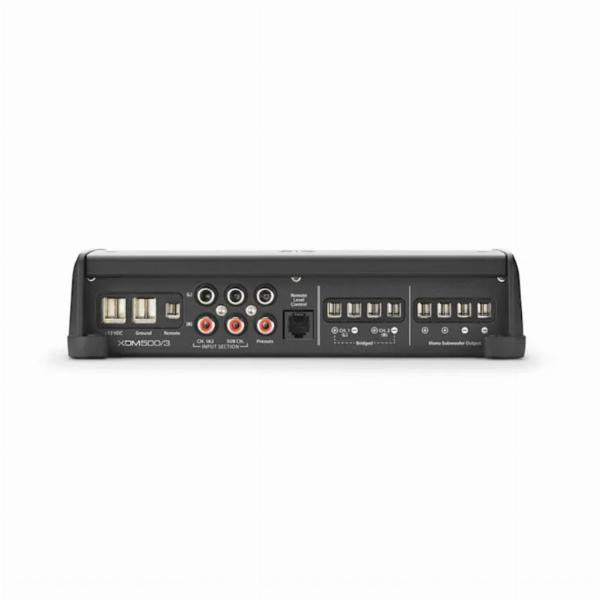

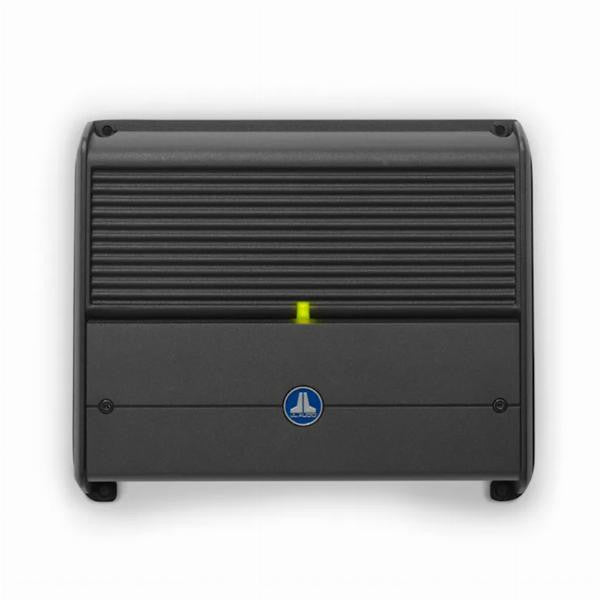

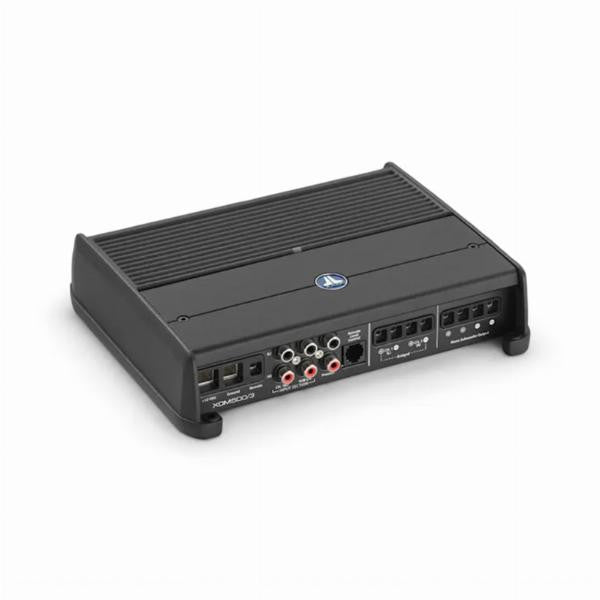

JL Audio JLA-010-03343-00 XDM500/3 3-Channel Marine Amplifier

Versatile 3-channel Class D system amplification engineered for two-channel plus subwoofer configurations with advanced NexD™ technology and thermal rollback protection.

Product Overview

The JL Audio XDM500/3 3-channel amplifier delivers comprehensive system amplification for marine and automotive installations requiring two satellite speakers plus a dedicated subwoofer channel. With 500W total system power distributed across three channels, this marine-rated Class D platform drives complete audio systems from a single compact chassis. Built using JL Audio's advanced NexD™ high-speed switching design achieving over 80% total amplifier efficiency, the XDM500/3 provides exceptional power output while minimizing electrical system demands. The 12V configuration integrates seamlessly into standard automotive and marine electrical systems, while the all-aluminum powder-coated housing with sealed security cover protects against corrosion and the elements in Australia's harshest coastal conditions.

The sophisticated architecture features studio-grade signal processing with fully variable filters and calibrated potentiometers beneath the sealed security cover. Advanced rollback protection ensures the amplifier never shuts down due to thermal overload—innovative circuit design keeps the music playing even under demanding conditions by intelligently managing power output. Automatic turn-on capability offers three options: auto signal sensing with +12V remote out, auto DC-offset sensing with +12V remote out, or conventional +12V turn-on lead. At 216mm wide, 2.18kg, and featuring exclusive dual-mode input filter for outstanding noise rejection, the XDM500/3 represents the ideal single-amplifier solution for Australian marine enthusiasts and automotive audio specialists requiring two-channel plus subwoofer control.

Key Specifications

• 3-channel Class D amplifier with NexD™ technology (2 main channels + 1 dedicated subwoofer channel)
• Total system power: 500W RMS
• Operating voltage: 11-14.5 VDC (12V systems only)
• Amplifier efficiency: >80% (NexD™ high-speed switching design)
• Dimensions: 216mm (W) × 180mm (D) × 52mm (H)
• Weight: 2.18kg (4.8 lbs)
• All-aluminum powder-coated housing for corrosion resistance
• Sealed security cover protects controls from elements
• Studio-grade signal processing with fully variable filters
• Calibrated potentiometers for precise tuning
• Advanced rollback protection prevents thermal shutdown
• Automatic turn-on: 3 modes (signal sensing, DC-offset sensing, or +12V remote)
• Exclusive dual-mode input filter for noise rejection
• Differential-balanced inputs for crystal-clear audio performance
• Marine-grade construction suitable for boats or cars
• 2-year manufacturer warranty

Note: Detailed power ratings per channel, filter specifications, and technical measurements are not provided in supplier documentation. Contact manufacturer for complete specifications.

Features & Benefits

Advanced NexD™ High-Efficiency Technology
JL Audio's proprietary NexD™ high-speed switching design achieves total amplifier efficiencies exceeding 80%—significantly higher than conventional Class D amplifiers. This exceptional efficiency reduces current draw from your electrical system, minimizes heat generation, and permits reliable 500W output from a compact chassis. Critical for Australian marine applications where electrical capacity is limited, or 4WD touring setups where auxiliary battery runtime matters during extended camping scenarios with engine-off listening.

Advanced Rollback Protection System
Innovative circuit design ensures the amplifier never experiences complete thermal shutdown—a common frustration with traditional amplifiers during extended high-output sessions. The advanced rollback protection intelligently manages power output when thermal conditions approach limits, keeping the music playing even under demanding conditions like beach parties, boat rallies, or outback camping. Unlike conventional thermal protection that abruptly cuts power, the XDM500/3 gracefully manages output to maintain continuous operation.

Studio-Grade Signal Processing
Beneath the sealed security cover lies audiophile-grade signal processing with fully variable filters and calibrated potentiometers. The precision controls enable sophisticated system tuning for main speakers and subwoofers in demanding installations. Calibrated potentiometers ensure repeatable settings—critical for professional installers servicing multiple similar builds or enthusiasts fine-tuning systems without external DSP processors. The 3-channel configuration simplifies wiring and system design compared to separate stereo and monoblock amplifiers.

Exclusive Dual-Mode Input Filter
JL Audio's proprietary dual-mode input filter combined with differential-balanced inputs delivers outstanding noise rejection and crystal-clear audio performance in boats or cars. The filter automatically adapts to electrical noise characteristics common in marine environments (alternator whine, bilge pump interference) or automotive installations (ignition noise, accessory interference). Critical for maintaining audiophile-grade sound quality in electrically noisy environments where conventional amplifiers produce audible interference.

Triple Auto Turn-On Capability
Choose from three automatic turn-on options based on your installation: auto signal sensing with +12V remote out (detects audio signal on RCA inputs), auto DC-offset sensing with +12V remote out (detects DC voltage from source unit), or conventional +12V turn-on lead (standard remote wire). The signal/DC-offset sensing modes eliminate the need for separate remote wiring in many factory system upgrades, simplifying integration in commercial fleet applications or vessels where complex wiring modifications aren't practical.

Marine-Grade Corrosion Resistance
The all-aluminum powder-coated housing inhibits corrosion in Australian coastal conditions, salt spray, and bilge moisture. The sealed security cover protects controls and circuitry from the elements—critical for installations in wet bilges, exposed cockpit areas, or poorly sealed cargo compartments in 4WD vehicles. Unlike conventional amplifiers with exposed heatsinks and control surfaces, the XDM500/3 maintains long-term reliability in harsh marine environments from tropical Queensland humidity to Southern Ocean salt spray.

Compact Two-Speaker Plus Sub Configuration
The 3-channel design is ideal for boats with cabin stereo plus subwoofer, utes with front speakers plus bass, or caravans with entertainment zone plus low-frequency reinforcement. Eliminates the need for separate 2-channel and monoblock amplifiers, reducing installation complexity, wiring bulk, and equipment bay congestion. The 216mm width fits locations where larger multi-channel amplifiers won't mount, while the 2.18kg weight simplifies mounting bracket requirements and installation logistics.

Technical Specs

• Amplifier class: Class D (NexD™ high-speed switching design)
• Channels: 3 (2 main channels + 1 dedicated subwoofer channel)
• Total system power: 500W RMS
• Operating voltage: 11-14.5 VDC (12V models only - NOT 24V compatible)
• Amplifier efficiency: >80% (NexD™ technology)

Signal Processing:

• Studio-grade signal processing with fully variable filters
• Calibrated potentiometers for precise, repeatable tuning
• Exclusive dual-mode input filter for noise rejection
• Differential-balanced inputs for superior audio performance

Protection & Control:

• Advanced rollback protection (prevents thermal shutdown)
• Automatic turn-on options: Signal sensing / DC-offset sensing / +12V remote
• +12V remote output capability (for daisy-chaining additional equipment)

Physical Specifications:

• Dimensions (W × D × H): 216mm × 180mm × 52mm (8.52" × 7.09" × 2.05")
• Weight: 2.18kg (4.8 lbs)
• Housing: All-aluminum powder-coated construction
• Protection: Sealed security cover over controls and circuitry
• Finish: Black powder-coat
• Warranty: 2 years

Important Note: Detailed power output specifications per channel (main channels vs. subwoofer channel), filter frequencies, slopes, fuse rating, wire gauge requirements, frequency response, signal-to-noise ratio, and damping factor are not provided in available documentation. Contact JL Audio or authorized dealers for complete technical specifications before installation planning.

Compatible With / Goes Well With

Speaker Recommendations:

• Marine coaxial speakers for main channels (2 speakers)
• Marine component speakers for main channels
• Marine subwoofers for dedicated subwoofer channel (power handling dependent on actual specifications)
• Compact marine subwoofers for space-constrained installations

Installation Accessories:

• Marine-grade amplifier wiring kit (gauge dependent on actual specifications)
• Marine-grade speaker wire
• RCA interconnect cables with marine-grade shielding (3-channel distribution)
• Distribution blocks for power/ground distribution
• Amplifier mounting brackets or marine-rated equipment racks
• Sound deadening material for mounting surfaces

System Compatibility:

• Marine head units with front preamp outputs plus subwoofer output
• Aftermarket head units with 2-channel plus subwoofer preamp outputs
• Line output converters for factory radio integration with summing
• 12V electrical systems with adequate alternator capacity

Electrical System Requirements:

• Adequate alternator capacity for 500W total system power
• Proper battery reserve (AGM or lithium recommended)
• Proper grounding with dedicated ground point to chassis/hull
• Marine-grade wiring (consult installation manual for gauge requirements)

Caution: Detailed specifications including power output per channel, impedance compatibility, fuse rating, and wire gauge requirements are not provided in available documentation. Consult JL Audio technical support or authorized dealers before purchase to ensure compatibility with your speakers and electrical system.

Weight

2.18kg (4.8 lbs)

Frequently Asked Questions

What's the difference between the XDM500/3 and running separate 2-channel and monoblock amplifiers?
The XDM500/3 consolidates two satellite speakers plus subwoofer amplification into a single chassis, reducing installation complexity, wiring runs, equipment bay space requirements, and power distribution connections. The integrated design simplifies tuning with coordinated controls in one location rather than accessing multiple amplifiers mounted in different areas.

What is advanced rollback protection and how does it work?
Unlike traditional thermal protection that abruptly shuts down the amplifier when overheating, advanced rollback protection intelligently reduces output gradually when approaching thermal limits. This keeps the music playing continuously—albeit at slightly reduced levels—rather than experiencing frustrating shutdowns during extended high-output sessions at anchor, beach parties, or camping scenarios.

How does the NexD technology benefit my electrical system?
NexD™ high-speed switching achieves over 80% efficiency, meaning less current draw from your battery and alternator compared to conventional amplifiers producing the same power. This reduces strain on your electrical system, minimizes heat generation requiring cooling, and extends battery runtime during engine-off listening—critical for marine applications and remote camping scenarios.

Which automatic turn-on mode should I use?
Use signal sensing for most aftermarket head units (detects audio on RCA inputs), DC-offset sensing for many factory systems (detects DC voltage from source unit output), or conventional +12V remote for guaranteed compatibility with any source unit providing remote turn-on output. Try signal or DC-offset modes first to eliminate remote wire runs in complex installations.

Is this amplifier suitable for saltwater marine environments?
Yes. The all-aluminum powder-coated housing resists corrosion, and the sealed security cover protects controls and circuitry from salt spray and moisture. However, mount away from direct water streams, bilge flooding, or areas subject to washdown. Pair with marine-grade wiring and heat-shrink connections for long-term reliability in coastal conditions.
