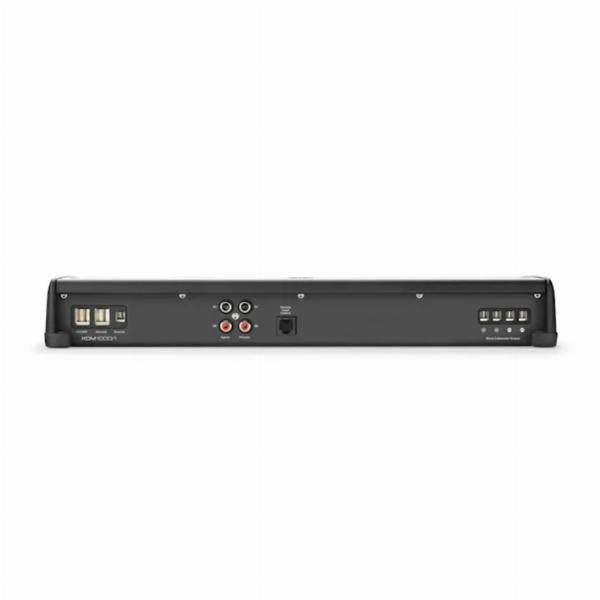

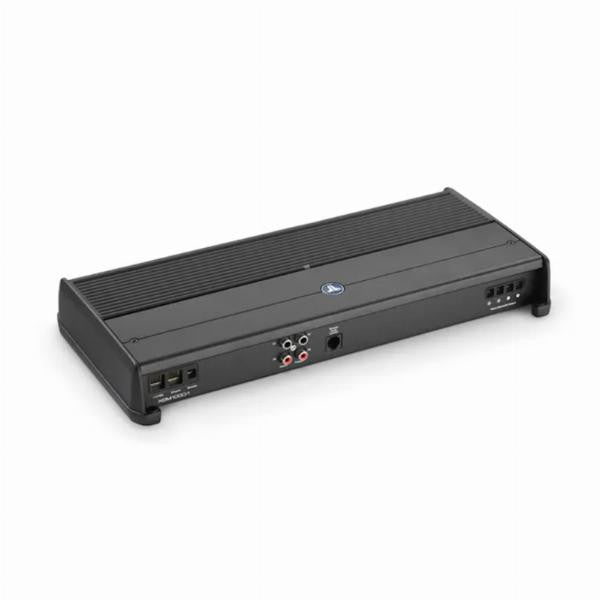

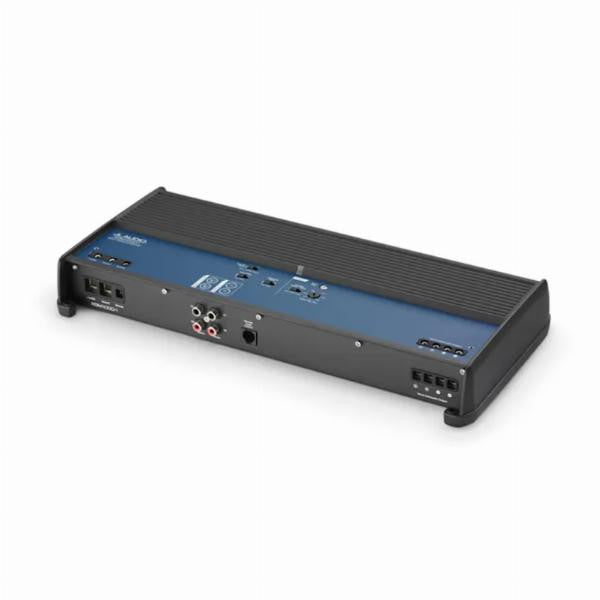

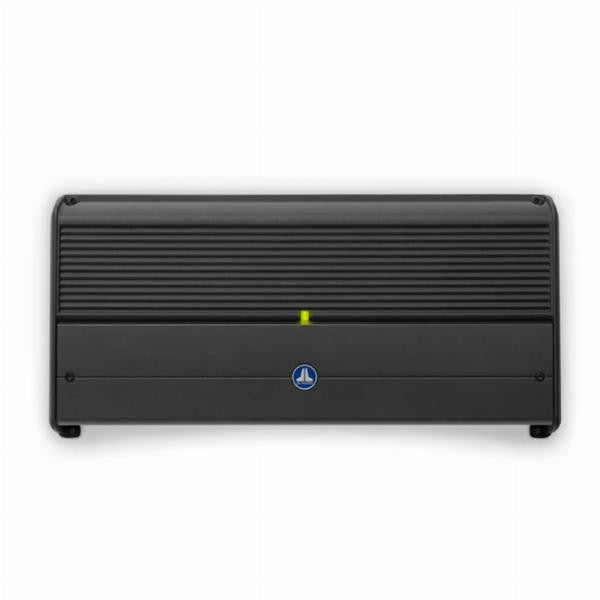

JL Audio JLA-010-03112-00 XDM1000 Monoblock Car and Marine Subwoofer Amplifier

Maximum power Class D subwoofer amplification engineered for extreme marine and automotive bass applications.

Product Overview

The JL Audio XDM1000 monoblock amplifier delivers elite-level subwoofer power in a marine-rated Class D package. With 1000W RMS output at 2Ω and 600W at 4Ω, this dedicated bass amplifier provides the headroom demanded by serious marine audio installations, competition SPL builds, and high-output 4WD systems. The marine-grade conformal coating protects against Australia's harshest coastal conditions, salt spray, and bilge moisture while maintaining exceptionally low distortion below 1% THD across the full power band.

Built on JL Audio's proven XDM platform, the 1000-watt monoblock features variable low-pass filtering (50Hz-500Hz) with selectable 12dB or 24dB/octave slopes, allowing precise integration with any subwoofer configuration. The robust 80A fuse rating and substantial heat sink design ensure sustained performance during extended listening sessions at anchor, beach parties, or highway touring. At 374mm wide, it represents the flagship of JL Audio's monoblock XDM range—engineered for installers who refuse to compromise on power or reliability.

Key Specifications

• Monoblock Class D amplifier optimised for high-output subwoofer applications
• Maximum rated power: 1000W RMS at 2Ω (14.4V input, <1% THD)
• Power at 4Ω load: 600W RMS (14.4V input, <1% THD)
• Power at 2Ω load (battery voltage): 800W RMS (12.5V input, <1% THD)
• Power at 4Ω load (battery voltage): 500W RMS (12.5V input, <1% THD)
• Frequency response: 7Hz-500Hz (+0, -1dB)
• Signal-to-noise ratio: >83dB (A-weighted, 20Hz-20kHz, referred to rated power)
• Signal-to-noise ratio: >53dB (A-weighted, 20Hz-20kHz, referred to 1W)
• Operating voltage: 11-14.5 VDC (12V systems only)
• Damping factor: >1000 @ 4Ω, 50Hz / >500 @ 2Ω, 50Hz
• THD+N: <1% @ rated power, 2Ω per channel
• Input voltage range: 200mV-4V RMS via RCA inputs
• Filter mode: Off or Low-Pass only
• Filter slope: 12dB/octave or 24dB/octave (selectable)
• Filter frequency range: 50Hz-500Hz
• Infrasonic filter: Not specified for this variant
• Dimensions: 374mm (W) × 180mm (D) × 52mm (H)
• Weight: Not specified
• Fuse rating: 80A (AFS, AGU or MaxiFuse™ recommended)
• Minimum power/ground wire: 4 AWG copper
• Buffered pass-through preamp outputs
• Compatible with optional HD-RLC or MHD-RLC (water-resistant) remote level control
• Marine-rated construction suitable for wet/harsh environments
• 3-year manufacturer warranty

Features & Benefits

1000W RMS Continuous Power
Delivers maximum bass authority for demanding marine wakeboard towers, competition SPL builds, or dual-subwoofer touring setups. The 1000W output at 2Ω provides substantial headroom above typical listening levels, ensuring clean, undistorted bass even during peak musical passages. Perfect for large cabin volumes in centre console boats, caravan entertainment systems, or dual-cab ute installations requiring serious low-frequency impact.

Variable Low-Pass Filtering (50Hz-500Hz)
Precision crossover control allows seamless integration with any subwoofer design. Selectable 12dB or 24dB/octave slopes accommodate sealed, ported, or bandpass enclosures, ensuring smooth transitions between subwoofer and main speakers. The detented, calibrated potentiometers enable repeatable settings across installations—critical for professional installers servicing multiple similar builds.

Marine-Rated Class D Topology
Conformal-coated circuit boards resist salt spray, moisture ingress, and corrosive coastal environments. Engineered for harsh Australian marine conditions—from tropical Queensland humidity to Southern Ocean salt spray. The robust construction handles bilge moisture, deck washdowns, and weather exposure that would destroy conventional automotive amplifiers, making it equally suitable for offshore fishing boats, ski boats, or canopy-protected 4WD cargo areas.

Flagship Power Capacity
The 80A fuse rating and substantial internal power supply deliver consistent performance under sustained high-output conditions. Whether running twin 12" subs in a ported enclosure or a single high-excursion 15" driver, the XDM1000 maintains voltage stability and thermal control during extended listening sessions. Ideal for beach parties, boat rallies, or long-distance touring where the engine may be off for hours.

High Damping Factor (>1000 @ 4Ω)
Exceptional electrical control over subwoofer cone motion produces tight, articulate bass with minimal overhang. The high damping factor ensures kick drums, bass guitar, and electronic music maintain transient precision even at extreme output levels. Critical for maintaining clarity in noisy marine environments where wind, engine, and wave noise compete with audio playback.

Extended Chassis Design
At 374mm (14.73"), the XDM1000 features the largest footprint in the monoblock XDM range, accommodating a substantial heat sink and power supply components. The extended chassis distributes thermal load efficiently, enabling sustained full-power operation without thermal compression—the enemy of clean bass. Mount horizontally under seats, vertically behind panels, or in dedicated amplifier racks.

Optional Water-Resistant Remote Level Control
Add JL Audio's HD-RLC or MHD-RLC (not included) for convenient output adjustment from the helm, driver's seat, or entertainment zone. Essential for compensating between moored listening conditions and underway wind noise, or between empty boat weight and fully loaded touring configurations. The remote maintains full control authority over the amplifier's output level.

Technical Specs

• Amplifier class: Class D
• Channels: 1 (Monoblock)
• Operating voltage: 11-14.5 VDC (12V models only - NOT 24V compatible)

Power Output (varies by voltage and load impedance):

• Maximum rated power (14.4V @ 2Ω, <1% THD): 1000W × 1
• Power at 4Ω load (14.4V @ 4Ω, <1% THD): 600W × 1
• Power on battery voltage (12.5V @ 2Ω, <1% THD): 800W × 1
• Minimum power output (12.5V @ 4Ω, <1% THD): 500W × 1
• Signal-to-noise ratio (A-weighted, 20Hz-20kHz, referred to rated power): >83dB
• Signal-to-noise ratio (A-weighted, 20Hz-20kHz, referred to 1W): >53dB
• Damping factor @ 4Ω: >1000 @ 50Hz
• Damping factor @ 2Ω: >500 @ 50Hz
• THD+N @ rated power: <1% @ 2Ω per channel
• Frequency response (+0, -1dB): 7Hz-500Hz
• Input voltage range @ RCA inputs: 200mV-4V RMS
• Filter mode: Off or Low-Pass only
• Filter slope: 12dB/octave or 24dB/octave (selectable)
• Filter frequency range: 50Hz-500Hz
• Detented, calibrated filter potentiometers: Yes
• Buffered pass-through preamp output: Yes
• Remote level control compatibility: Optional HD-RLC or MHD-RLC (water-resistant)
• Recommended fuse type: AFS, AGU or MaxiFuse™
• Fuse rating: 80A
• Minimum copper power/ground wire gauge: 4 AWG
• Physical dimensions (W × D × H): 374mm × 180mm × 52mm (14.73" × 7.09" × 2.05")
• Weight: Not specified
• Warranty: 3 years

Important Note: This is the 12V model. The XDM series also includes 24V variants (6-channel and 8-channel only) for commercial/heavy vehicle applications—this monoblock 1000W model operates on 12V systems exclusively.

Compatible With / Goes Well With

Subwoofer Recommendations:

• JL Audio Marine M6 or M3 12" or 15" subwoofers (500W-1000W RMS continuous)
• Dual 10" or 12" subwoofer configurations (500W each, wired for 2Ω total)
• Single high-excursion 15" subwoofer (800W-1000W RMS handling)
• Ported or sealed enclosures rated for 1000W RMS handling

Installation Accessories:

• 4 AWG or 2 AWG amplifier wiring kit with 80A+ inline fuse holder (0 AWG recommended for extended runs)
• JL Audio HD-RLC or MHD-RLC water-resistant remote level control
• Marine-grade speaker wire (12-14 AWG recommended for subwoofer runs)
• RCA interconnect cables with marine-grade shielding
• Sound deadening material for enclosure mounting surfaces and surrounding panels
• Heavy-duty amplifier mounting brackets or racks

System Compatibility:

• Marine head units with 2V-4V preamp outputs (4V recommended for best signal-to-noise ratio)
• Aftermarket head units with dedicated subwoofer preouts
• Line output converters for factory radio integration
• Dual-battery systems with high-output alternators (130A+ minimum recommended)
• Distribution blocks for multi-amplifier systems

Electrical System Requirements:

• Minimum 130A alternator capacity for sustained full-power operation
• Adequate battery reserve (AGM or lithium recommended for deep-cycle support)
• Proper grounding with dedicated ground point to chassis/hull
• Voltage-stable electrical system (avoid excessive voltage drop under load)

Caution: The XDM1000 demands substantial electrical capacity. Verify your alternator output, battery capacity, and wiring gauge before installation. Undersized electrical systems will result in voltage drop, thermal protection triggering, or inconsistent performance. Running at 2Ω delivers maximum 1000W but requires robust electrical infrastructure. For extended engine-off listening, consider auxiliary battery systems with proper isolation.

Frequently Asked Questions

What electrical system upgrades do I need to run this 1000W amplifier?
Minimum 130A alternator, AGM or lithium auxiliary battery for engine-off use, 4 AWG power/ground wire (0-2 AWG for runs over 5m), and 80A fuse within 45cm of battery. Undersized systems cause voltage drop and thermal protection shutdown.

Can I run dual subwoofers with this amplifier?
Yes. Wire two 4Ω subs in parallel for 2Ω total (1000W shared) or two 2Ω subs in series for 4Ω total (600W shared). Never wire two 2Ω subs in parallel—this creates 1Ω load that can damage the amplifier.

Will this fit in the same space as the XDM600 monoblock?
No. The XDM1000 measures 374mm wide versus the XDM600's 216mm width. Verify mounting location accommodates the extended chassis (374mm × 180mm × 52mm) with adequate ventilation clearance above and around the heat sink.

Is this suitable for wakeboard tower speakers or only subwoofers?
Subwoofers only. The XDM1000 features low-pass filtering (50Hz-500Hz) optimised for bass reproduction. For wakeboard tower full-range speakers, consider JL Audio's multi-channel XDM amplifiers with high-pass filtering capabilities.

How do I prevent thermal shutdown during long engine-off listening sessions?
Ensure 50mm+ clearance around the amplifier for airflow, avoid mounting in sealed enclosures, and consider auxiliary cooling fans for enclosed installations. Monitor voltage—if battery voltage drops below 11V, reduce output or start engine to prevent thermal protection activation.
