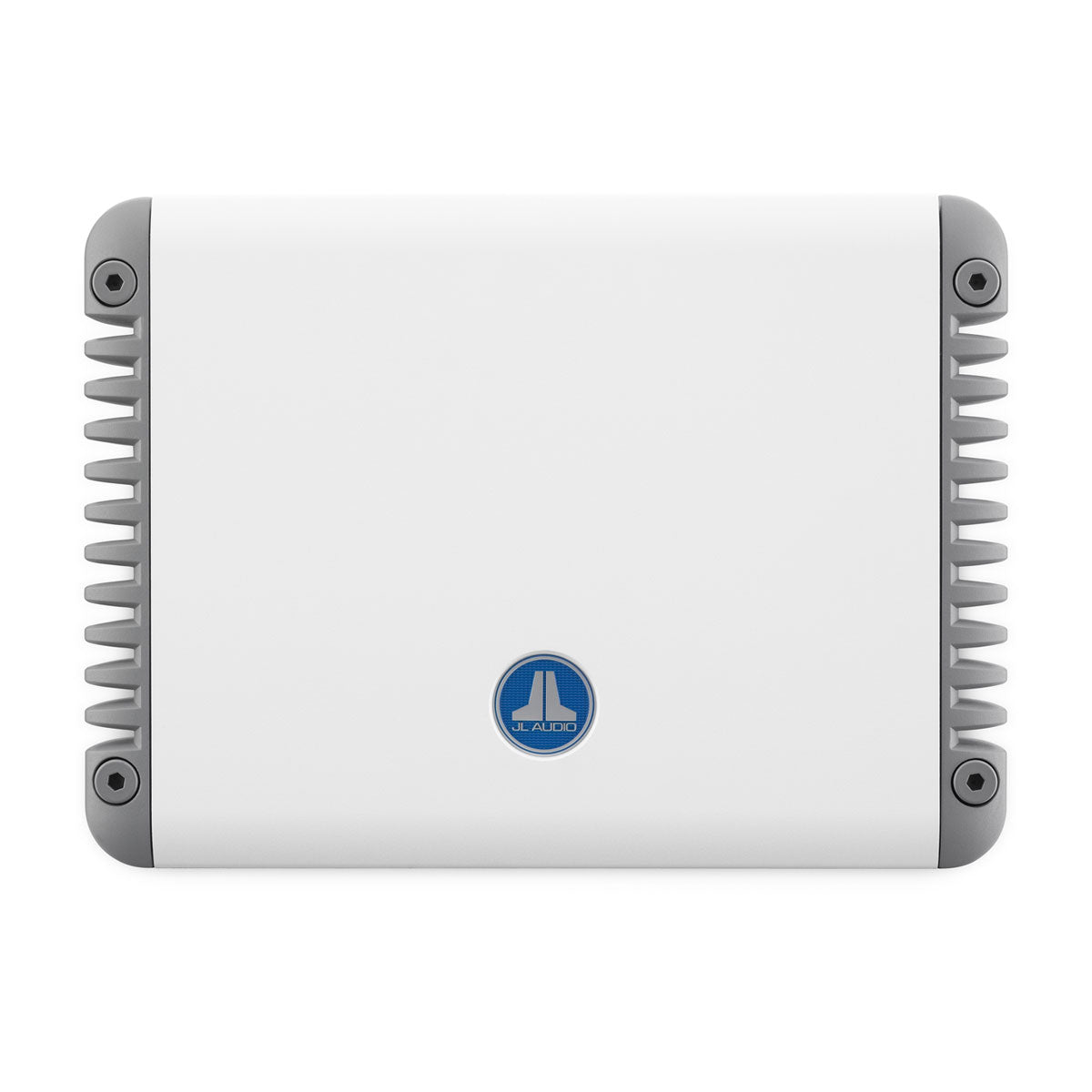

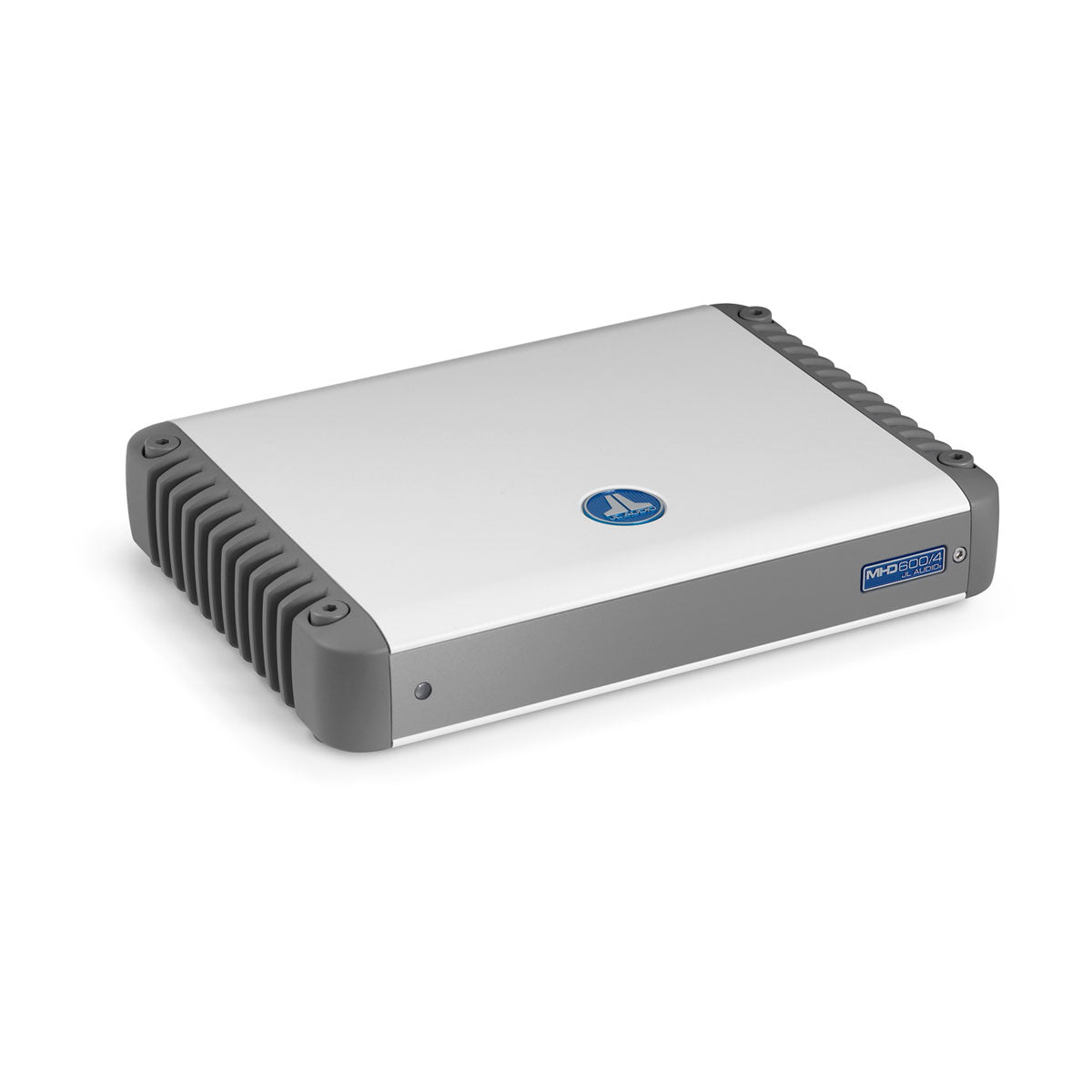

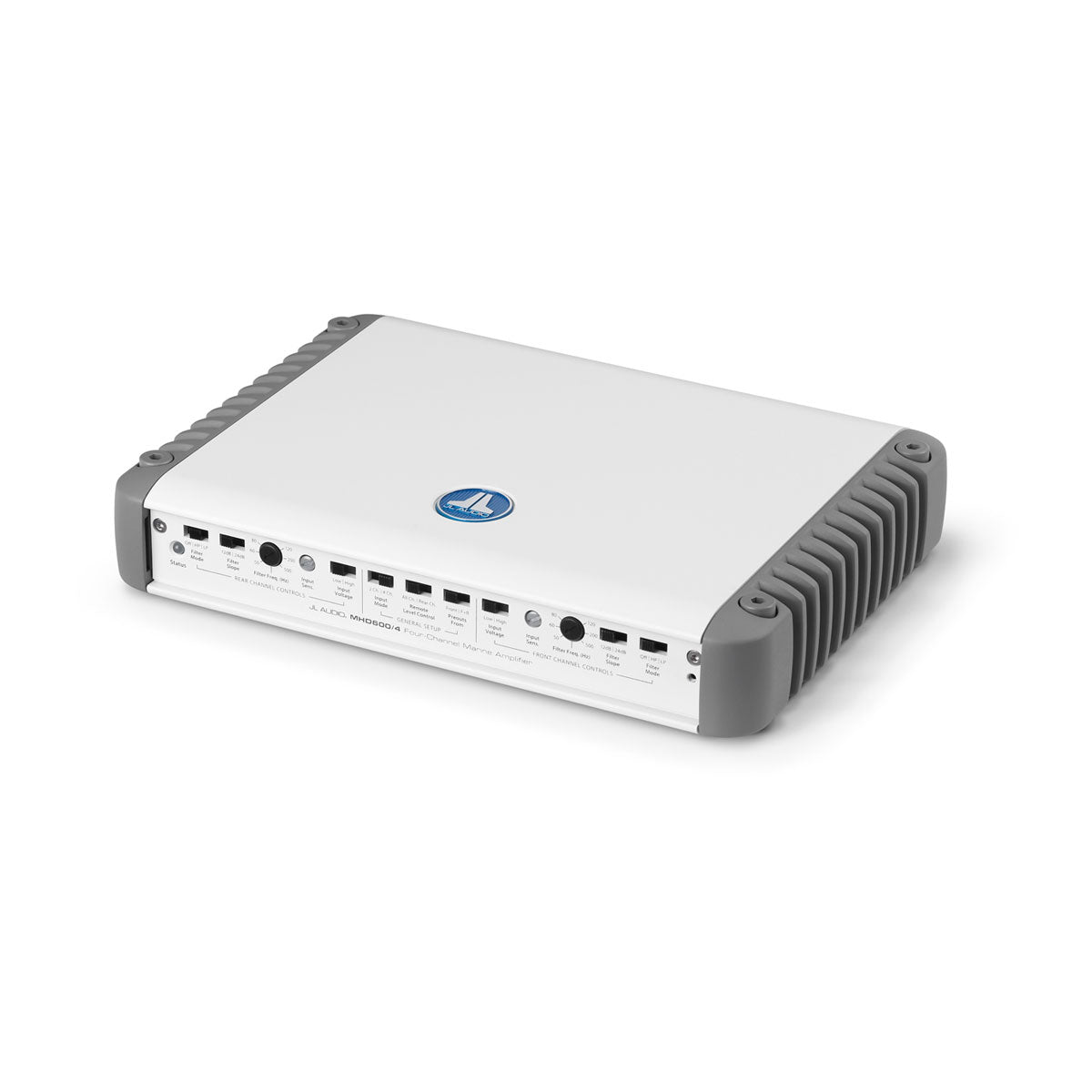

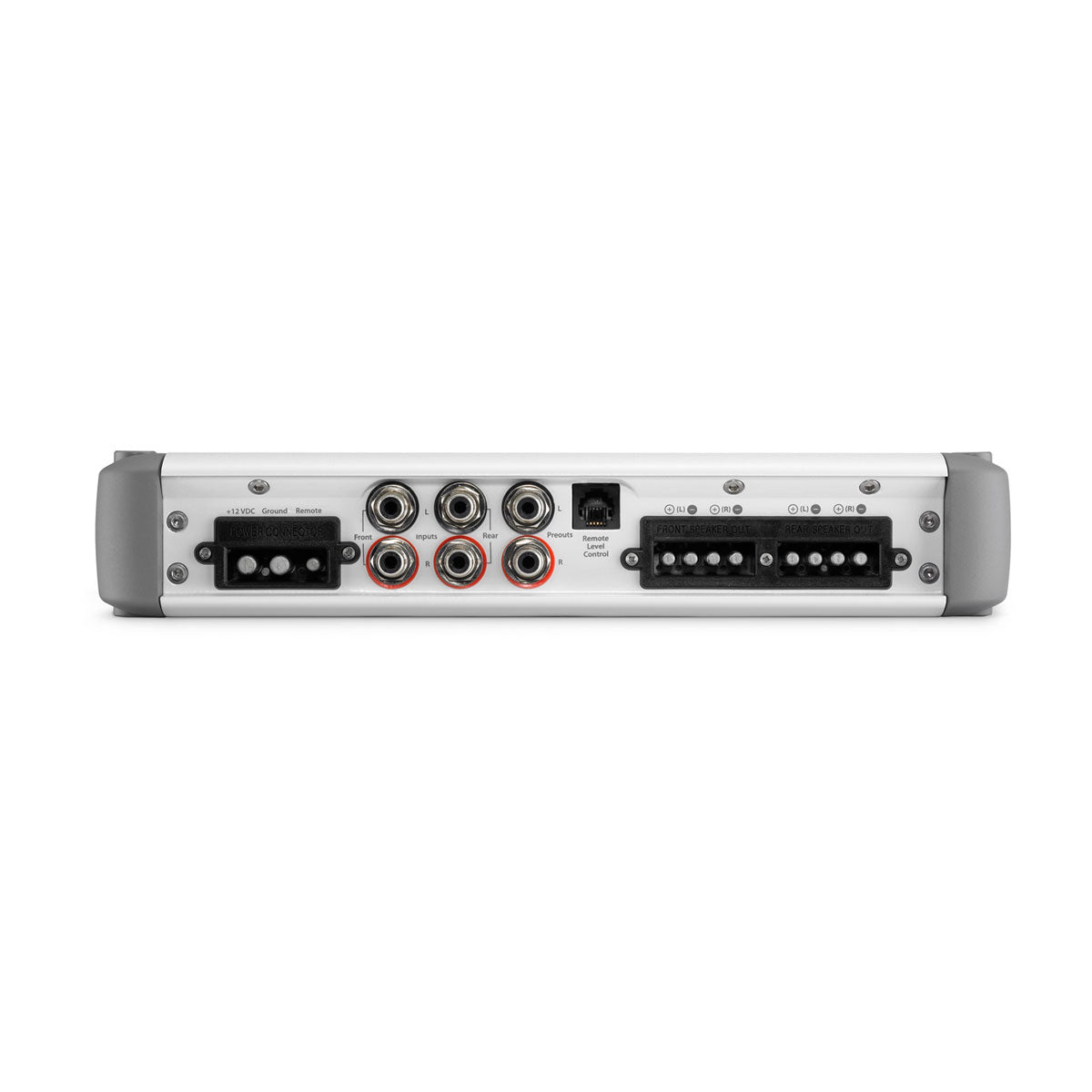

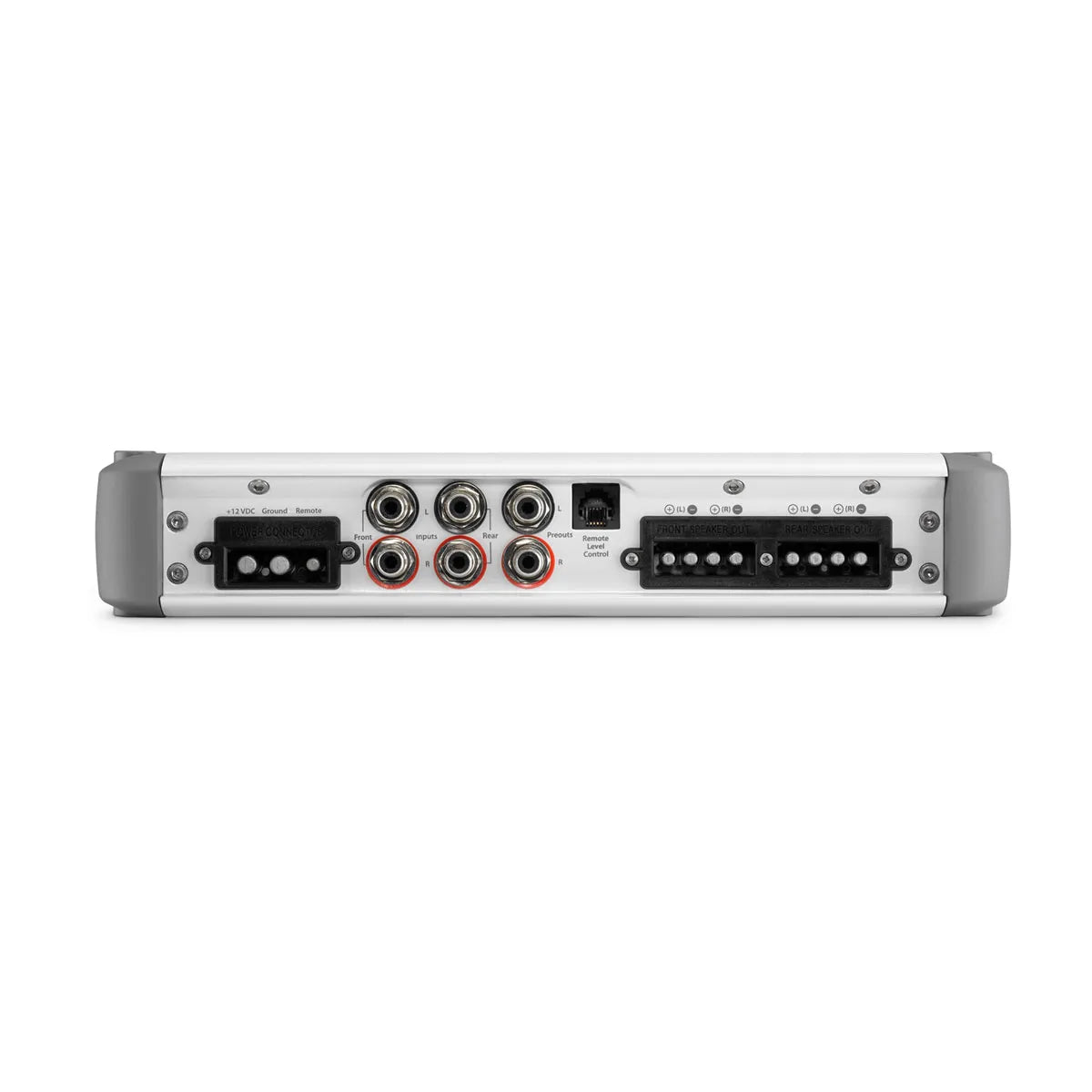

JL Audio JLA-010-03319-00 MHD Marine Amplifier - 4 Channel Full-Range Marine Amplifier (600W)

JL Audio JLA-010-03319-00 MHD Marine Amplifier - 4 Channel Full-Range Marine Amplifier (600W)

Premium 4-channel Class D marine amplifier engineered for exceptional performance in demanding marine environments, delivering 600W total power with advanced signal processing and marine-grade construction for complete system flexibility.

Product Overview

The JL Audio MHD 4-Channel Marine Amplifier delivers exceptional performance and versatility in a compact, marine-grade package designed specifically for the harsh conditions of marine audio installations. With 150 watts RMS per channel at 4 ohms or 300 watts RMS per channel in bridged mode, this Class D amplifier provides clean, efficient power for complete marine audio systems including tower speakers, in-boat speakers, and subwoofers. The MHD series features advanced signal processing with adjustable crossovers, selectable filter slopes, and flexible input configuration, allowing precise system tuning for optimal performance. Marine-grade construction with conformal-coated circuit boards, stainless steel hardware, and sealed connections ensures reliable operation even when exposed to water spray and salt air. The compact dimensions and efficient Class D design minimize installation space requirements while reducing heat generation, making it ideal for space-constrained marine installations. Compatible with both 12V and 24V systems, the MHD amplifier provides professional-grade performance backed by JL Audio's legendary build quality and 3-year warranty.

Features & Benefits

• Flexible 4-Channel Configuration: 150W x 4 @ 4Ω for full-range speakers or 300W x 2 bridged for high-power applications
• Class D Efficiency: Advanced Class D topology delivers high power output with minimal heat generation and reduced power draw
• Marine-Grade Construction: Conformal-coated circuit boards and sealed connections resist moisture, salt spray, and corrosion
• Advanced Signal Processing: Independent crossover controls with selectable high-pass/low-pass filters and 12dB/24dB slopes
• Detented Filter Controls: Precision calibrated potentiometers with detents provide accurate, repeatable crossover settings
• Flexible Input Configuration: Switchable 2-channel or 4-channel input mode accommodates various source configurations
• Variable Input Sensitivity: Switchable from 200mV-2V RMS (low) to 800mV-8V RMS (high) matches any source unit
• Bridgeable Channels: Bridge channel pairs for high-power subwoofer or speaker applications
• Pass-Through Outputs: Buffered preamp outputs allow daisy-chaining additional amplifiers
• Source Channel Selection: Select which input channels feed the pass-through outputs for system flexibility
• Compact Footprint: Space-efficient design fits in tight installation locations
• Stainless Steel Hardware: All mounting hardware resists corrosion in marine environments
• Comprehensive Protection: Built-in short circuit, thermal, and DC offset protection ensures long-term reliability
• Optional Remote Control: Compatible with HD-RLC remote level control (sold separately)
• Dual Voltage Compatible: Works with both 12V and 24V marine electrical systems
• 3-Year Warranty: Extended coverage provides confidence in long-term reliability

Technical Specs

Compatible With / Goes Well With

Compatible Speakers:

• JL Audio M3 Enclosed Tower Speakers (full-range power)
• JL Audio M3 Marine Speakers (in-boat audio)
• JL Audio M6 Enclosed Tower Speakers (premium tower audio)
• JL Audio M6 Marine Speakers (high-performance in-boat audio)

Compatible Subwoofers (Bridged Mode):

• JL Audio M3 Marine Subwoofers (300W bridged per sub)
• JL Audio M6 Marine Subwoofers (requires additional amplifier for full power)
• JL Audio M6 Marine Thin-Line Subwoofers (ideal match in bridged mode)
• JL Audio M7 Marine Subwoofers (requires dedicated monoblock for full power)
• JL Audio VeX Enclosed Systems (powered subwoofer solutions)

Compatible Source Units:

• JL Audio MediaMaster 105 Stereo (premium source integration)
• JL Audio MediaMaster 55 Stereo (compact source solution)
• JL Audio Receivers (seamless system integration)

Installation Accessories:

• HD-RLC Remote Level Control (optional, for convenient volume adjustment)
• 4 AWG power and ground wire (marine-grade copper)
• AFS, AGU, or MaxiFuse 50A fuses
• Marine-grade speaker wire (14AWG or 12AWG recommended)
• Power distribution blocks (for multiple amplifier installations)
• RCA cables (marine-grade for signal connections)

Frequently Asked Questions

Q: Can I use this amplifier to power both speakers and a subwoofer?
A: Yes, the MHD 4-channel is ideal for complete system installations. Run channels 1-2 to front speakers and bridge channels 3-4 for a subwoofer (300W RMS), or run all four channels to speakers and add a separate monoblock for subwoofer duties. The flexible crossover controls allow precise tuning for each application.

Q: What's the difference between 2-channel and 4-channel input mode?
A: 2-channel input mode uses channels 1-2 inputs to feed all four output channels (1 mirrors 3, 2 mirrors 4), ideal for 2-channel source units. 4-channel mode uses independent inputs for each channel pair, allowing front/rear fading from 4-channel source units or processors.

Q: How much current does this amplifier draw from my boat's electrical system?
A: At full rated output, the MHD 4-channel draws approximately 60-70 amps from a 12V system. The efficient Class D design reduces current draw compared to older Class AB amplifiers. Ensure your boat's alternator and battery system can support this load, especially when running multiple amplifiers.

Q: Can I mount this amplifier in an exposed location?
A: While the MHD features marine-grade construction with conformal coating, it's not fully waterproof. Mount in a protected location away from direct water spray, such as under seats, in storage compartments, or inside an amplifier enclosure. Avoid bilge areas or locations that may be submerged.

Q: What speaker impedance should I use for best performance?
A: The MHD 4-channel delivers 150W RMS per channel at both 2-ohm and 4-ohm loads. Use 4-ohm speakers for most installations as they're easier on the amplifier and electrical system. When bridging, present a 4-ohm load to the bridged channel pair (using two 8-ohm speakers in parallel or one 4-ohm speaker).
