JL Audio JLA-010-03289-00 M7 Marine Subwoofer - 12" with LED and Titanium Sport Grille

JL Audio JLA-010-03289-00 M7 Marine Subwoofer - 12" with LED and Titanium Sport Grille

Premium high-performance marine subwoofer engineered for extreme bass output with integrated RGB LED lighting, featuring aggressive titanium sport styling and massive 18.5mm excursion capability.

Product Overview

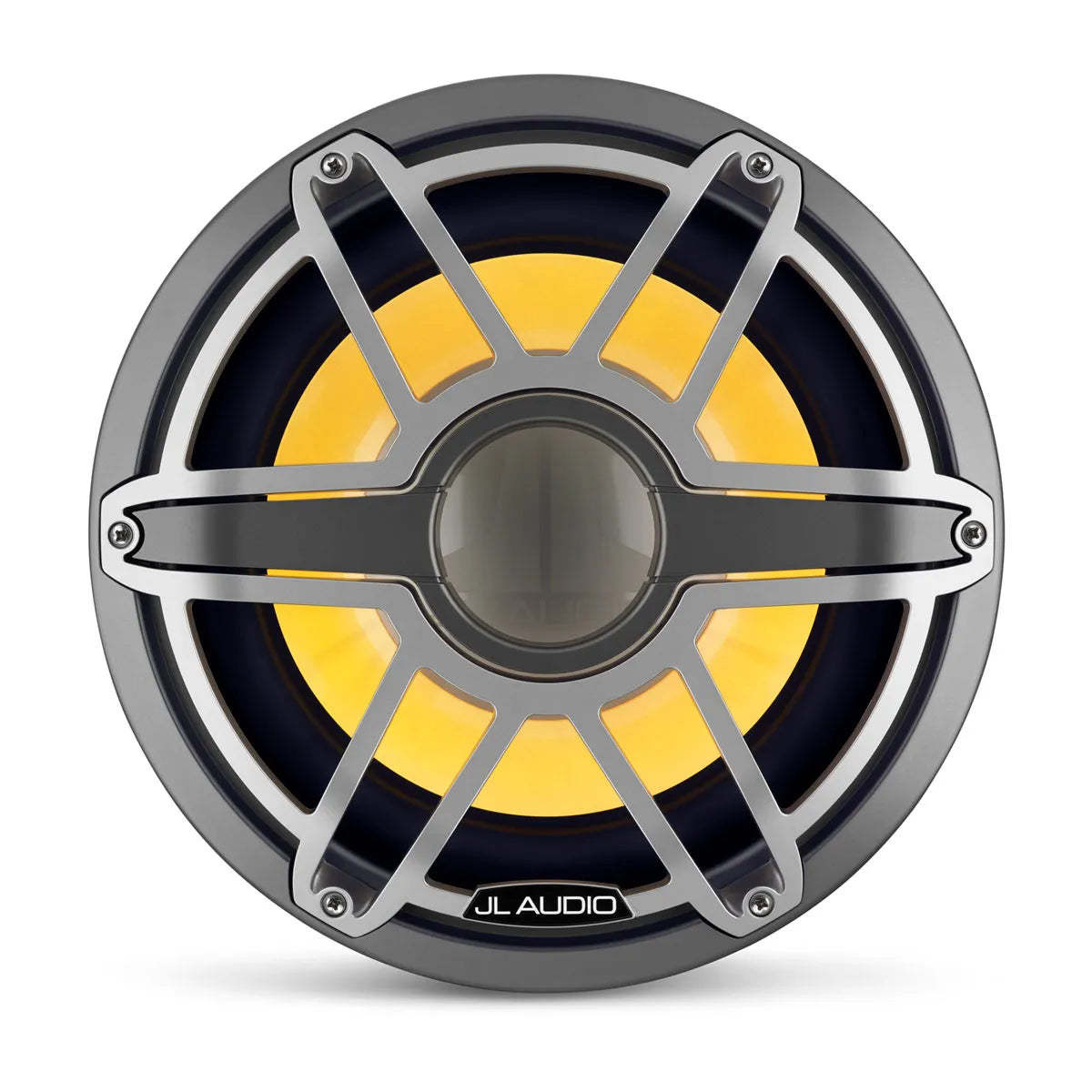

The JL Audio M7 12" Marine Subwoofer with LED and Titanium Sport Grille represents the pinnacle of marine bass performance, delivering exceptional low-frequency output designed specifically for demanding marine applications. The Sport series features a titanium sport grille with integrated Transflective RGB LED illumination that creates dramatic lighting effects while maintaining robust protection and a distinctive metallic finish. This flagship subwoofer is engineered for infinite baffle installations with massive 600W RMS continuous power handling and extraordinary 18.5mm excursion capability. The 4-inch voice coil and mica-filled polypropylene cone deliver authoritative bass that can fill even the largest boats with deep, impactful low frequencies. The Transflective grille technology allows LED illumination to shine through while maintaining structural integrity, creating a stunning visual centerpiece that enhances any premium marine audio system.

Features & Benefits

• Extreme Power Handling: 600W RMS continuous power handling with 1200W peak capability delivers maximum bass authority

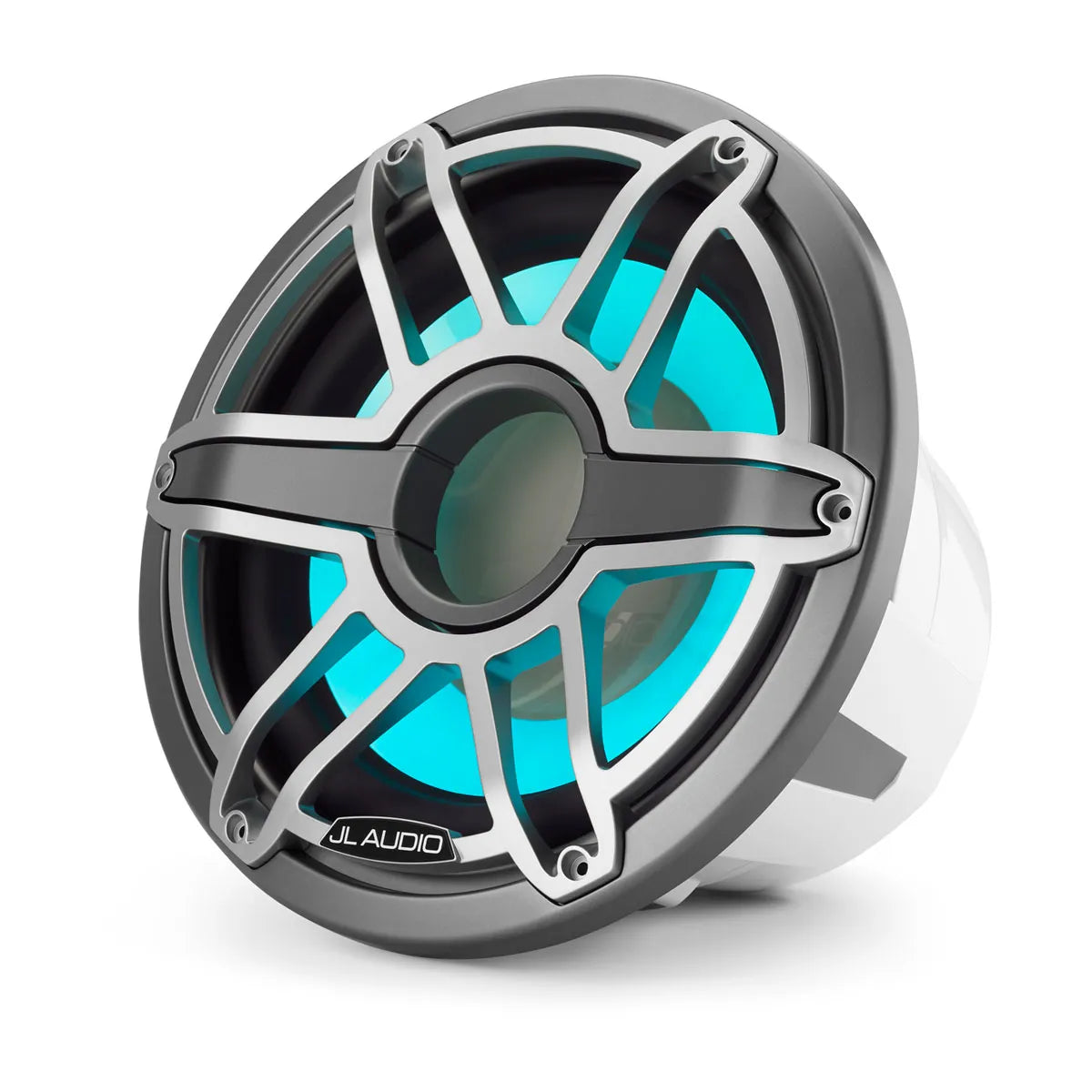

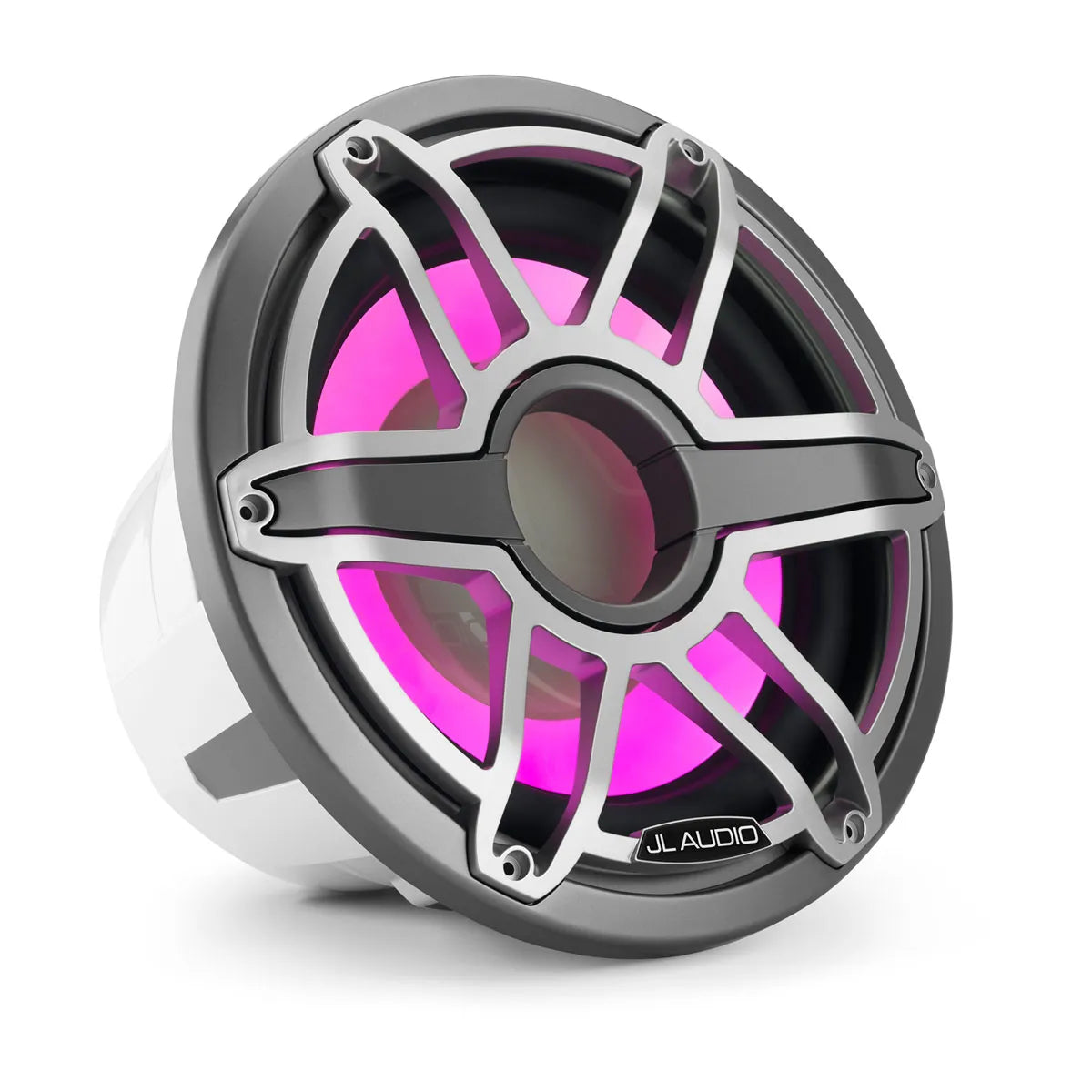

• Integrated RGB LED Lighting: Transflective LED illumination with selectable color options creates stunning visual effects on the water
• Massive Excursion Capability: 18.5mm one-way linear excursion (Xmax) provides exceptional output with controlled distortion
• Large 4-Inch Voice Coil: Oversized voice coil ensures superior power handling and thermal management for sustained high output
• Titanium Sport Grille: Distinctive metallic finish provides aggressive styling with enhanced protection and LED integration
• Transflective Grille Technology: Allows LED illumination to shine through while maintaining grille strength and protection
• Infinite Baffle Design: Optimized for free-air mounting eliminates enclosure requirements for simplified installation

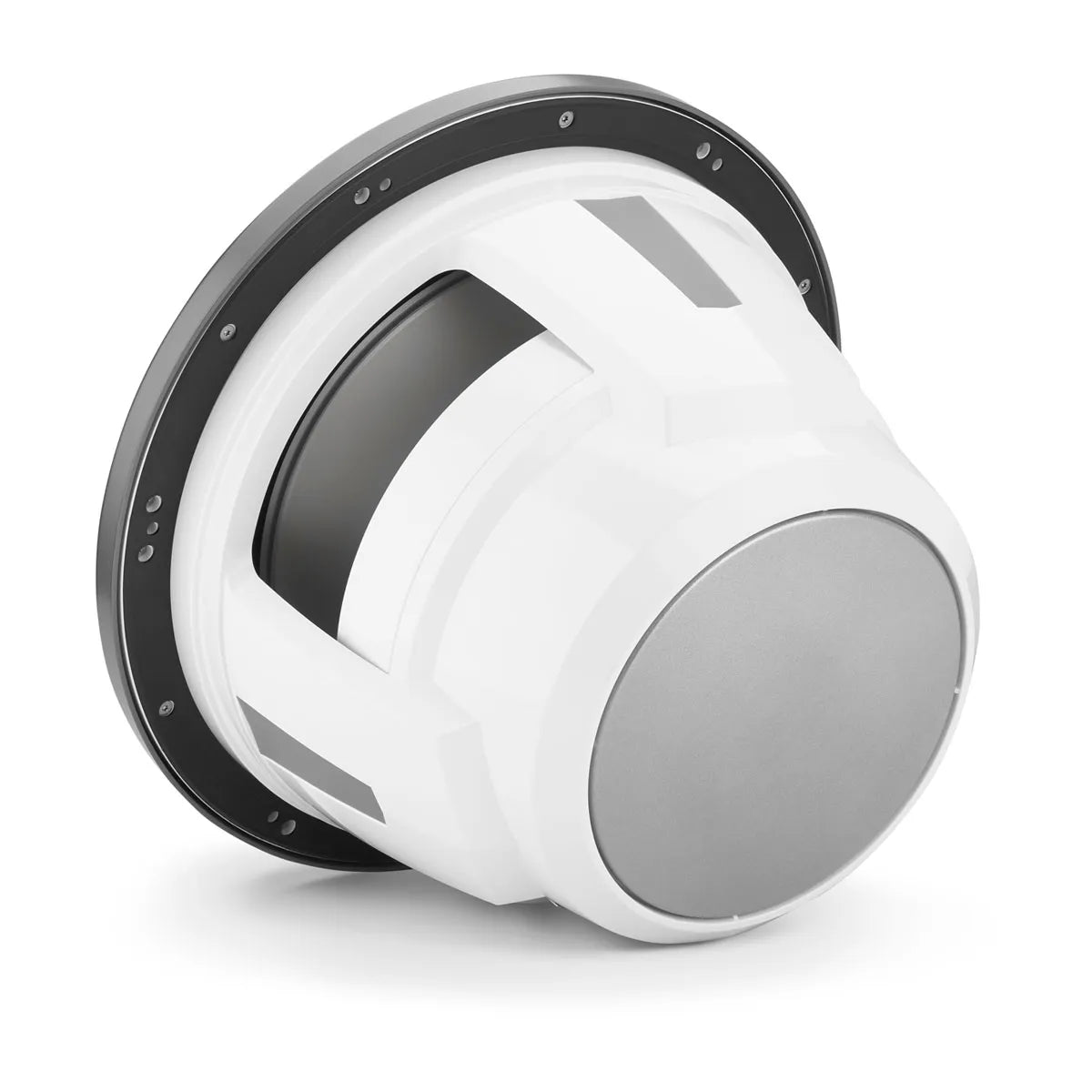

• Marine-Grade Construction: Sealed motor structure and UV-resistant materials ensure long-term reliability in saltwater environments
• Mica-Filled Polypropylene Cone: Injection-molded cone provides excellent stiffness-to-weight ratio for accurate bass reproduction
• High Sensitivity: 86.7 dB efficiency delivers impressive output with moderate amplifier power
• Optimized Thiele-Small Parameters: Engineered for predictable performance in both infinite baffle and enclosed applications
• Professional Spade Terminals: Reliable connections ensure optimal signal transfer and easy installation
• Stainless Steel Mounting Hardware: Marine-grade screws and washers resist corrosion in harsh saltwater environments

Technical Specs

Compatible With / Goes Well With

Essential Amplifiers:

• JL Audio MHD Marine Amplifiers (MHD1200/1 recommended for full power capability)
• JL Audio MVi Marine Amplifiers (high-output monoblock configurations)
• JL Audio XDM Car and Marine Amplifiers (maximum power delivery)

LED Control:

• JL Audio MBT-CRX Bluetooth Controller (for LED color control and audio streaming, sold separately)

Source Units:

• Fusion Apollo MS-RA800 Marine Stereo (subwoofer control and bass management)
• JL Audio MediaMaster marine source units (seamless system integration)

System Building:

• JL Audio M6 Marine Speakers (full-range in-boat audio)
• JL Audio M6 Enclosed Tower Speakers (complete premium marine audio system)

Installation Options:

• Infinite baffle/free-air installation (recommended for most applications)
• Custom sealed enclosure (85L for optimal sealed performance)
• Custom ported enclosure (141.6L tuned to 25 Hz for maximum extension)
• Marine-grade speaker wire (10AWG or 8AWG recommended for high-power runs)

Frequently Asked Questions

Q: How do I control the RGB LED lighting in this subwoofer?
A: The integrated LEDs require the JL Audio MBT-CRX Bluetooth Controller (sold separately), which allows you to select colors, adjust brightness, and create custom lighting effects via smartphone app. The LED system operates on 10-14.4 VDC and draws 648mA maximum current.

Q: What's the difference between the M7 and M6 subwoofers?
A: The M7 12" is JL Audio's flagship marine subwoofer with 600W RMS power handling (vs 250W for M6 10"), 18.5mm excursion (vs 13mm for M6), and a massive 4-inch voice coil (vs smaller coils in M6). The M7 delivers significantly higher output capability for larger boats and extreme bass requirements.

Q: What amplifier power should I use with this subwoofer?
A: The M7 12" performs best with 400-600 watts RMS from a dedicated high-power monoblock amplifier. The JL Audio MHD1200/1 is the ideal match, providing 1200W peak power with marine-specific protection circuits. Minimum recommended power is 200W RMS, though this won't fully utilize the subwoofer's capability.

Q: Can I use this subwoofer without building an enclosure?
A: Yes, the M7 is optimized for infinite baffle (free-air) mounting where the boat's interior cavity acts as the enclosure. This eliminates the need for custom box building. For enclosed applications, sealed (85L) or ported (141.6L) enclosures are recommended for optimal performance.

Q: How much mounting depth do I need for installation?
A: The M7 12" requires 202mm (7.94") of clearance behind the mounting surface. The overall depth including the sport grille is 240mm (9.42"). The mounting hole diameter is 306mm (12.0625"). Always verify clearance and ensure adequate air space behind the subwoofer for proper infinite baffle operation.
