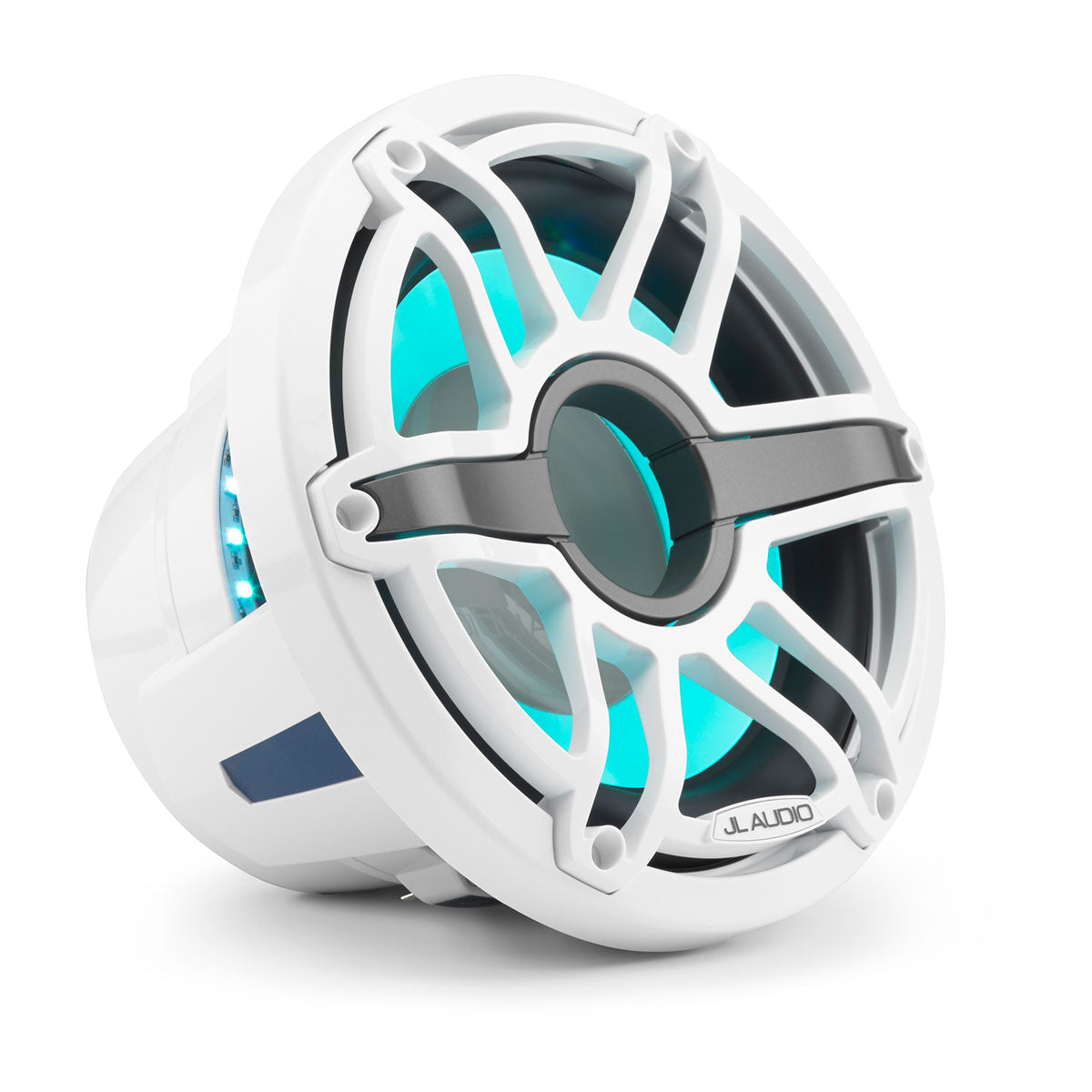

JL Audio JLA-010-03489-00 M6 Marine Subwoofer - 10" with LED and White Sport Grille

JL Audio JLA-010-03489-00 M6 Marine Subwoofer - 10" with LED and White Sport Grille

Premium marine subwoofer engineered for exceptional deep bass performance with integrated RGB LED lighting, featuring sport styling and versatile installation options for demanding marine environments.

Product Overview

The JL Audio M6 10" Marine Subwoofer with LED and White Sport Grille delivers exceptional low-frequency performance combined with stunning visual impact designed specifically for the harsh marine environment. The Sport series features a white sport grille with integrated Transflective RGB LED illumination that creates dramatic lighting effects while maintaining robust protection. This subwoofer is engineered for flexible installation, supporting both infinite baffle and enclosed configurations to accommodate various boat layouts and space constraints. The mica-filled polypropylene cone and robust motor structure deliver 250W RMS continuous power handling with exceptional excursion capability. The Transflective grille technology allows LED illumination to shine through while maintaining structural integrity, creating a stunning visual centerpiece that enhances any marine audio system.

Features & Benefits

• Integrated RGB LED Lighting: Transflective LED illumination with selectable color options creates stunning visual effects on the water
• Versatile Installation Options: Designed for both infinite baffle (free-air) and enclosed applications with optimized parameters for each configuration
• Sport Grille Design: White sport grille provides aggressive styling with enhanced protection and LED integration
• High Power Handling: 250W RMS continuous power handling with 500W peak capability delivers authoritative bass output
• Transflective Grille Technology: Allows LED illumination to shine through while maintaining grille strength and protection
• Marine-Grade Construction: Sealed motor structure and UV-resistant materials ensure long-term reliability in saltwater environments
• Mica-Filled Polypropylene Cone: Injection-molded cone provides excellent stiffness-to-weight ratio for accurate bass reproduction
• Exceptional Excursion: 13mm one-way linear excursion (Xmax) allows high output with low distortion
• Optimized Thiele-Small Parameters: Engineered for predictable performance in both sealed and ported enclosure designs
• Sealed Motor Structure: Prevents water intrusion and corrosion in critical voice coil components
• Professional Spade Terminals: Reliable connections ensure optimal signal transfer and easy installation
• Stainless Steel Mounting Hardware: Marine-grade screws and washers resist corrosion in harsh saltwater environments
• Dual Configuration Specs: IB (Infinite Baffle) and W (Woofer/Enclosed) parameters provided for optimal enclosure design

Technical Specs

Compatible With / Goes Well With

Essential Amplifiers:

• JL Audio MVi Marine Amplifiers (monoblock or multi-channel for dedicated subwoofer power)
• JL Audio MHD Marine Amplifiers (high-output mono amplifiers for maximum bass)
• JL Audio MX Marine and Powersports Amplifiers (versatile power delivery)
• JL Audio XDM Car and Marine Amplifiers (flexible installation options)

LED Control:

• JL Audio MBT-CRX Bluetooth Controller (for LED color control and audio streaming, sold separately)

Source Units:

• Fusion Apollo MS-RA800 Marine Stereo (subwoofer control and bass management)
• JL Audio MediaMaster marine source units (seamless system integration)

System Building:

• JL Audio M6 Marine Speakers (full-range in-boat audio)
• JL Audio M6 Enclosed Tower Speakers (complete marine audio system)
• JL Audio VeX Enclosed Systems (pre-built subwoofer solutions)

Installation Options:

• Custom sealed enclosure (recommended 56.6L IB or 21.2L enclosed configuration)
• Custom ported enclosure (recommended 70.8L IB or 56.6L enclosed configuration)
• Infinite baffle/free-air installation in suitable locations
• Marine-grade speaker wire (12AWG or 10AWG recommended for subwoofer runs)

Frequently Asked Questions

Q: How do I control the RGB LED lighting in this subwoofer?
A: The integrated LEDs require the JL Audio MBT-CRX Bluetooth Controller (sold separately), which allows you to select colors, adjust brightness, and create custom lighting effects via smartphone app. The LED system operates on 10-14.4 VDC and draws 594mA maximum current.

Q: What's the difference between IB (Infinite Baffle) and W (Woofer/Enclosed) configurations?
A: IB parameters are optimized for free-air mounting where the subwoofer uses the boat's internal space as the enclosure. W parameters are optimized for sealed or ported box installations. The IB configuration requires less depth (56.6L sealed) while W configuration provides tighter bass response in smaller enclosures (21.2L sealed).

Q: What amplifier power should I use with this subwoofer?
A: The M6 10" performs best with 150-250 watts RMS from a dedicated monoblock amplifier. The JL Audio MHD600/1 or MVi amplifiers are ideal matches, providing clean bass power with marine-specific protection circuits and enough headroom for dynamic passages.

Q: Can I use this subwoofer in a ported enclosure?
A: Yes, the M6 10" is designed for both sealed and ported enclosures. Ported designs provide deeper bass extension (F3 down to 25 Hz in IB configuration) but require larger enclosure volumes (70.8L IB or 56.6L enclosed) and careful port tuning. Sealed enclosures offer tighter, more controlled bass in smaller spaces.

Q: Are the LED lights visible in daylight conditions?
A: While the RGB LEDs are most dramatic at dusk and night, the Transflective grille technology allows visible illumination even in daylight conditions. The effect is enhanced in shaded areas or cabin spaces where direct sunlight is reduced.
