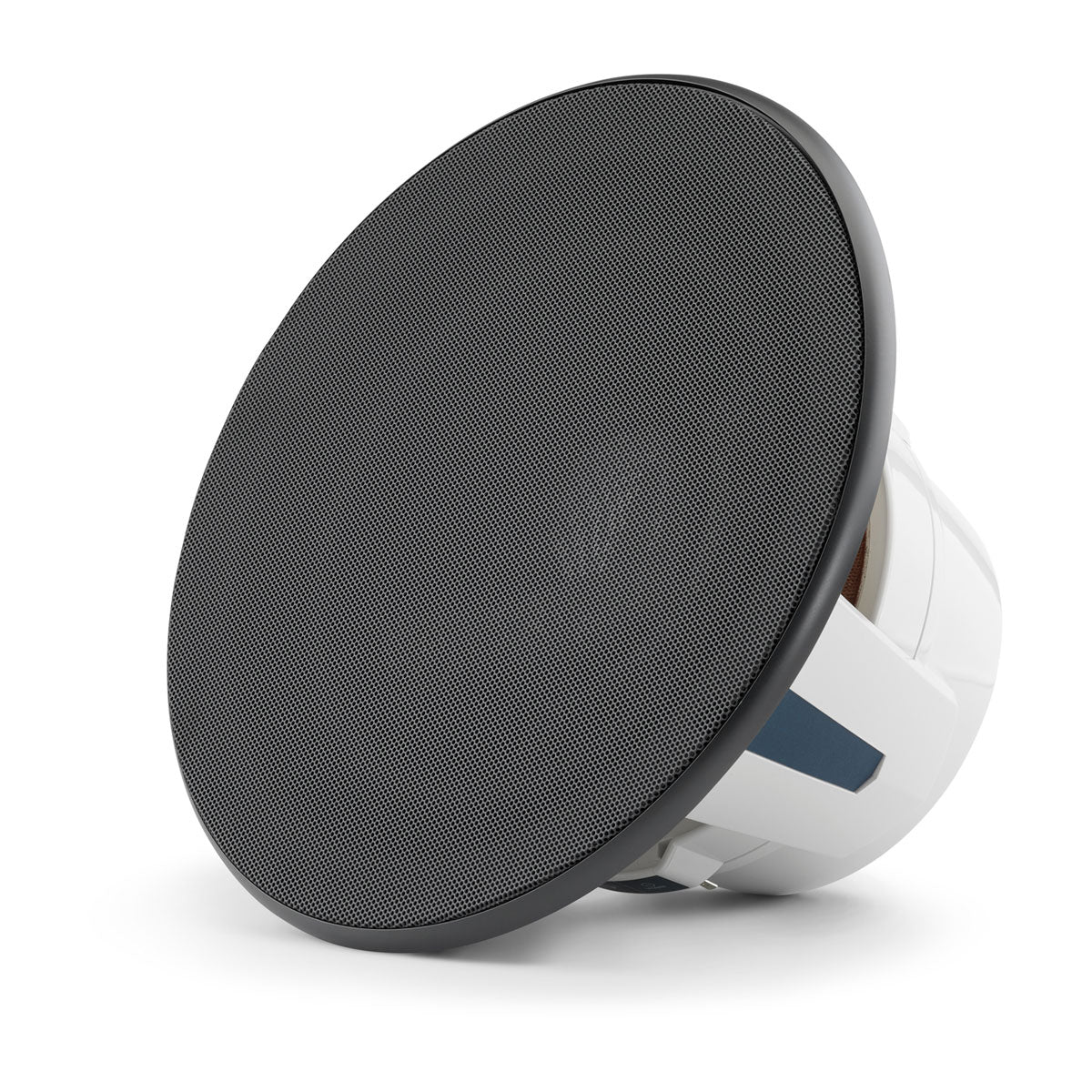

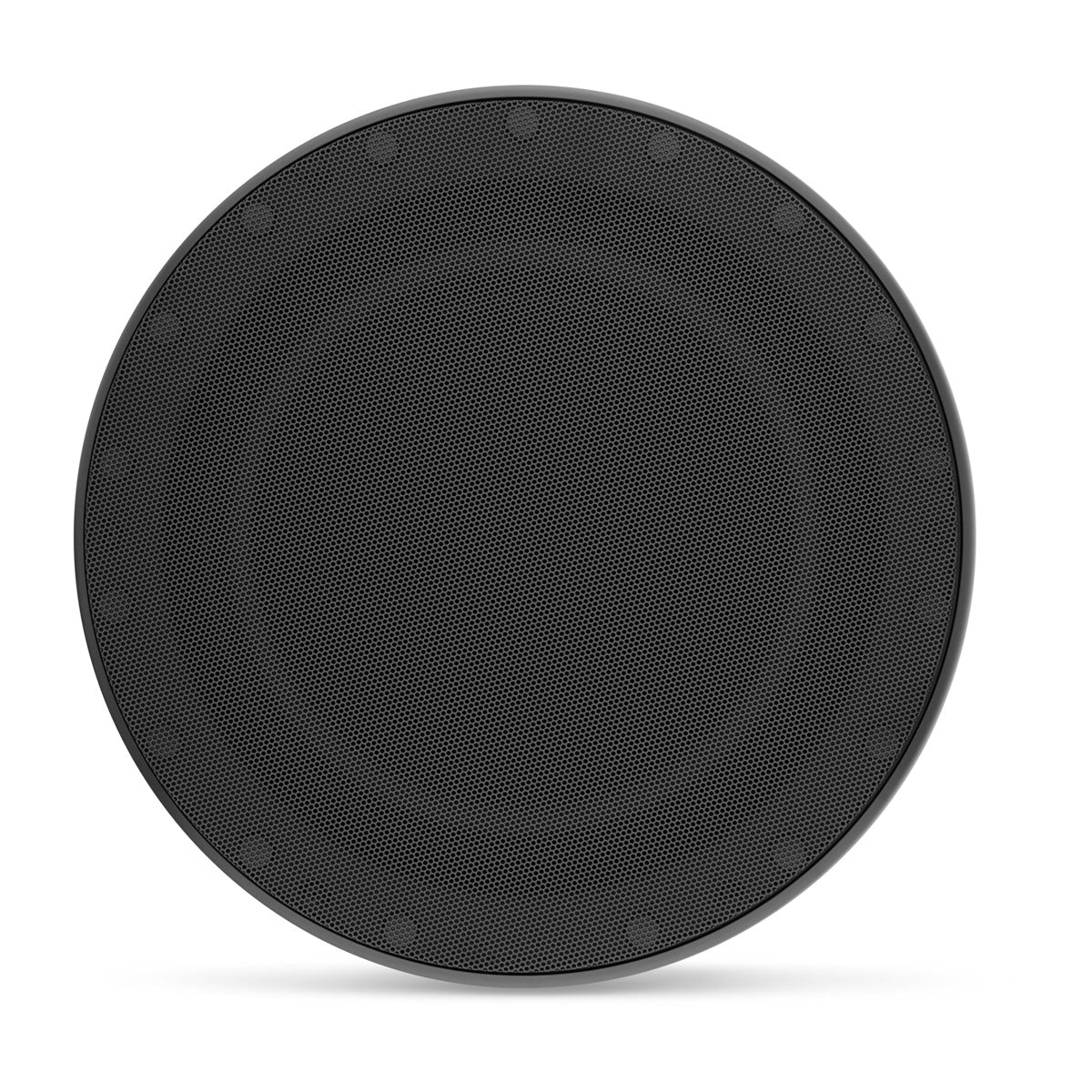

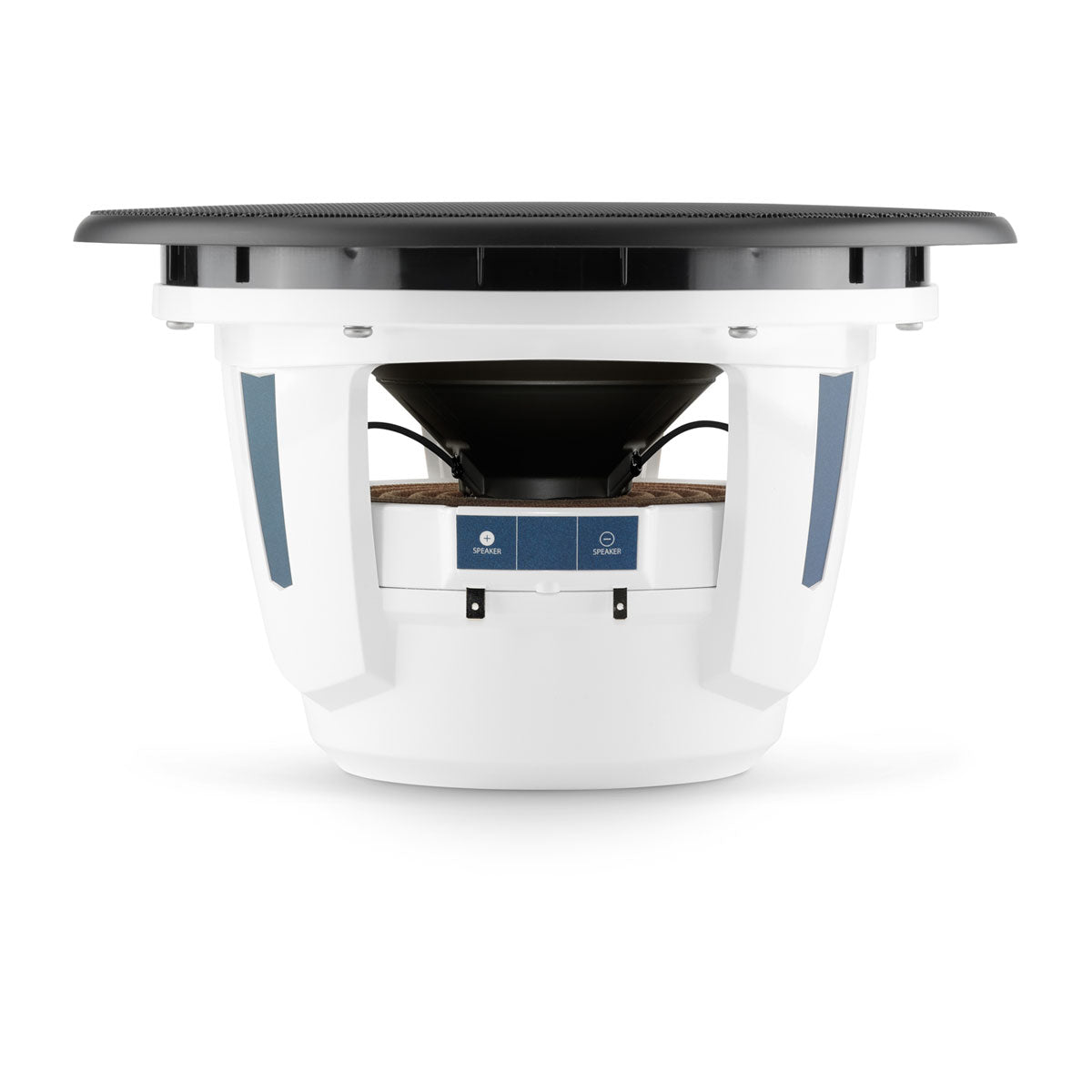

JL Audio JLA-010-03869-00 M6 Marine Subwoofer - 10" with Black Luxe Grille

JL Audio JLA-010-03869-00 M6 Marine Subwoofer - 10" with Black Luxe Grille

Premium marine subwoofer engineered for exceptional deep bass performance in demanding marine environments, featuring sophisticated black luxe styling with ultra-low profile design for versatile installation options.

Product Overview

The JL Audio M6 10" Marine Subwoofer with Black Luxe Grille delivers exceptional low-frequency performance designed specifically for the harsh marine environment. The Luxe series features a satin black grille with ultra-low 14mm profile design that provides elegant styling while maintaining robust protection. This subwoofer is engineered for flexible installation, supporting both infinite baffle and enclosed configurations to accommodate various boat layouts and space constraints. The mica-filled polypropylene cone and robust motor structure deliver 250W RMS continuous power handling with exceptional excursion capability. Whether installed in a custom enclosure or free-air application, the M6 10" provides deep, impactful bass that complements any marine audio system.

Features & Benefits

• Versatile Installation Options: Designed for both infinite baffle (free-air) and enclosed applications with optimized parameters for each configuration
• Luxe Satin Black Grille: Sophisticated ultra-low 14mm profile design with premium finish for seamless integration
• High Power Handling: 250W RMS continuous power handling with 500W peak capability delivers authoritative bass output
• Marine-Grade Construction: Sealed motor structure and UV-resistant materials ensure long-term reliability in saltwater environments
• Mica-Filled Polypropylene Cone: Injection-molded cone provides excellent stiffness-to-weight ratio for accurate bass reproduction
• Exceptional Excursion: 13mm one-way linear excursion (Xmax) allows high output with low distortion
• Optimized Thiele-Small Parameters: Engineered for predictable performance in both sealed and ported enclosure designs
• Sealed Motor Structure: Prevents water intrusion and corrosion in critical voice coil components
• Professional Spade Terminals: Reliable connections ensure optimal signal transfer and easy installation
• Stainless Steel Mounting Hardware: Marine-grade screws and washers resist corrosion in harsh saltwater environments
• Complete Installation Kit: Includes mounting hardware and grille removal tool for professional installation
• Dual Configuration Specs: IB (Infinite Baffle) and W (Woofer/Enclosed) parameters provided for optimal enclosure design

Technical Specs

Compatible With / Goes Well With

Essential Amplifiers:

• JL Audio MVi Marine Amplifiers (monoblock or multi-channel for dedicated subwoofer power)
• JL Audio MHD Marine Amplifiers (high-output mono amplifiers for maximum bass)
• JL Audio MX Marine and Powersports Amplifiers (versatile power delivery)
• JL Audio XDM Car and Marine Amplifiers (flexible installation options)

Source Units:

• Fusion Apollo MS-RA800 Marine Stereo (subwoofer control and bass management)
• JL Audio MediaMaster marine source units (seamless system integration)

System Building:

• JL Audio M6 Marine Speakers (full-range in-boat audio)
• JL Audio M6 Enclosed Tower Speakers (complete marine audio system)
• JL Audio VeX Enclosed Systems (pre-built subwoofer solutions)

Installation Options:

• Custom sealed enclosure (recommended 56.6L IB or 21.2L enclosed configuration)
• Custom ported enclosure (recommended 70.8L IB or 56.6L enclosed configuration)
• Infinite baffle/free-air installation in suitable locations
• Marine-grade speaker wire (12AWG or 10AWG recommended for subwoofer runs)

Frequently Asked Questions

Q: What's the difference between IB (Infinite Baffle) and W (Woofer/Enclosed) configurations?
A: IB parameters are optimized for free-air mounting where the subwoofer uses the boat's internal space as the enclosure. W parameters are optimized for sealed or ported box installations. The IB configuration requires less depth (56.6L sealed) while W configuration provides tighter bass response in smaller enclosures (21.2L sealed).

Q: What amplifier power should I use with this subwoofer?
A: The M6 10" performs best with 150-250 watts RMS from a dedicated monoblock amplifier. The JL Audio MHD600/1 or MVi amplifiers are ideal matches, providing clean bass power with marine-specific protection circuits and enough headroom for dynamic passages.

Q: Can I use this subwoofer in a ported enclosure?
A: Yes, the M6 10" is designed for both sealed and ported enclosures. Ported designs provide deeper bass extension (F3 down to 25 Hz in IB configuration) but require larger enclosure volumes (70.8L IB or 56.6L enclosed) and careful port tuning. Sealed enclosures offer tighter, more controlled bass in smaller spaces.

Q: How much mounting depth do I need for installation?
A: The M6 10" Luxe requires 177mm (6.98") of clearance behind the mounting surface. The overall depth including the grille is 192mm (7.56"). Always verify clearance and consider access for wiring before cutting mounting holes.

Q: What's the advantage of the Luxe grille over Classic/Sport versions?
A: Luxe grilles feature an ultra-low 14mm profile compared to 42mm for Classic/Sport versions, providing a more refined appearance with minimal visual intrusion. Luxe models include a dedicated grille removal tool for easy servicing. All versions offer the same acoustic performance and weather resistance.
